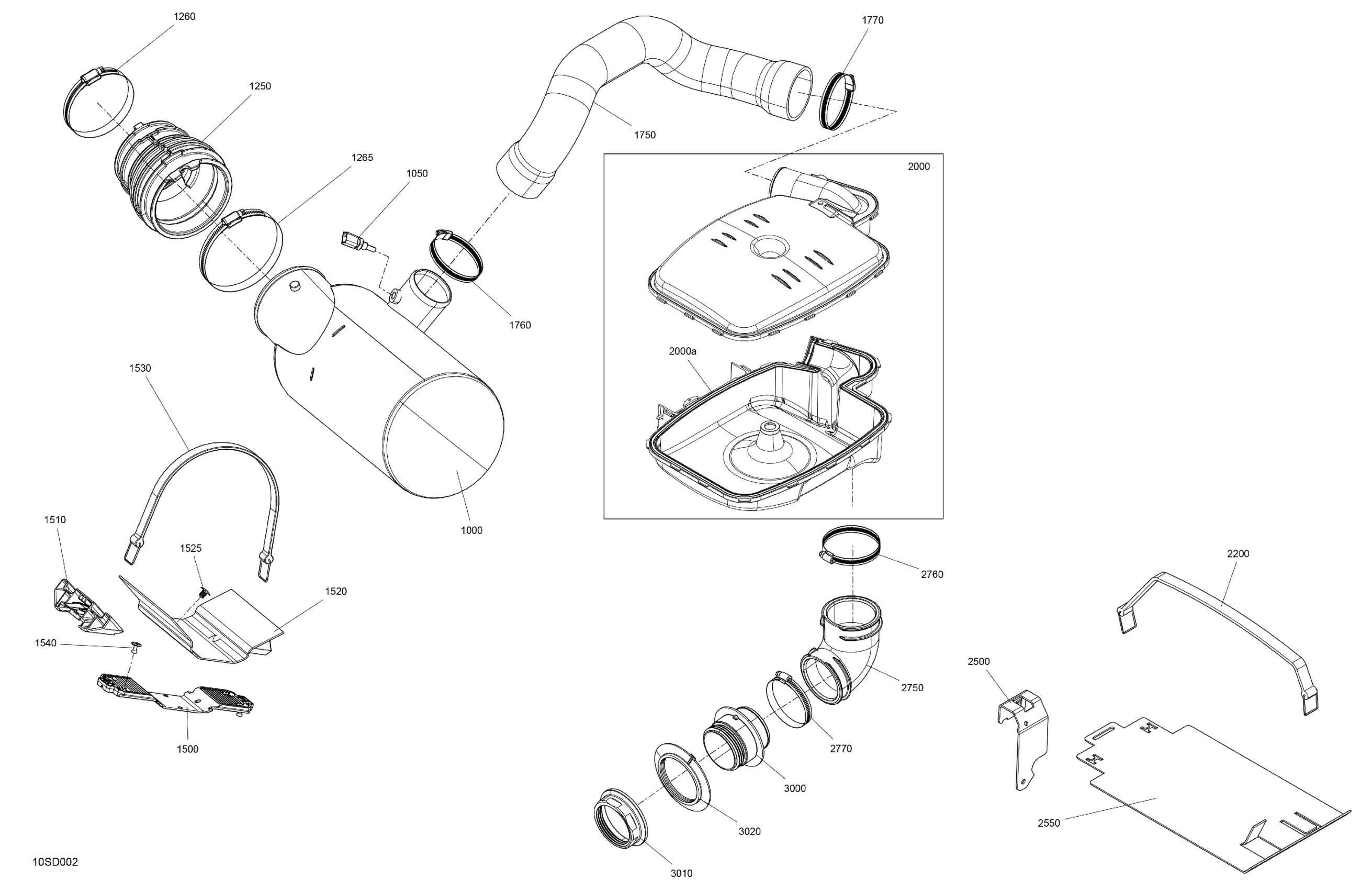

Sea-doo GTX 170 - 11RA - STD package - Blue Abyss,2024 Engine - Exhaust Diagram

Description

Price

1000

Muffler

274001685

$730.99

1050

Temperature Sensor

278002895

$39.99

1250

Boot

274001692

$36.99

1260

Gear Clamp This part replaces 293650281.

293650202

$15.88

1265

Gear Clamp

293650310

$20.49

1500

Muffler Support

293450390

$15.36

1510

Stopper

274001721

$19.09

1520

Rubber Pad

293830209

$15.29

1525

Christmas Tree Anchorage

293730113

$1.04

1530

Strap

293850120

$20.99

1540

Pop Rivet 3/16

293150186

$2.09

1750

Front Exhaust Hose

274001709

$80.49

1760

Tridon Gear Clamp

293650244

$9.29

1770

Tridon Gear Clamp

293650244

$9.29

2000

Drilled Resonator | Includes 2000 to 2000a

274001752

$169.49

2000a

Resonator

274001722

$158.99

2200

Strap

293850120

$20.99

2500

Bracket

292001831

$30.49

2550

Rubber Pad

293830173

$21.99

2750

Rear Exhaust Hose

274001628

$20.49

2760

Tridon Gear Clamp

293650244

$9.29

2770

Tridon Gear Clamp

293650244

$9.29

3000

Exhaust Fitting

274001742

$35.99

3010

77 MM Nut

274001743

$19.49

3020

Washer

274001587

$14.30
