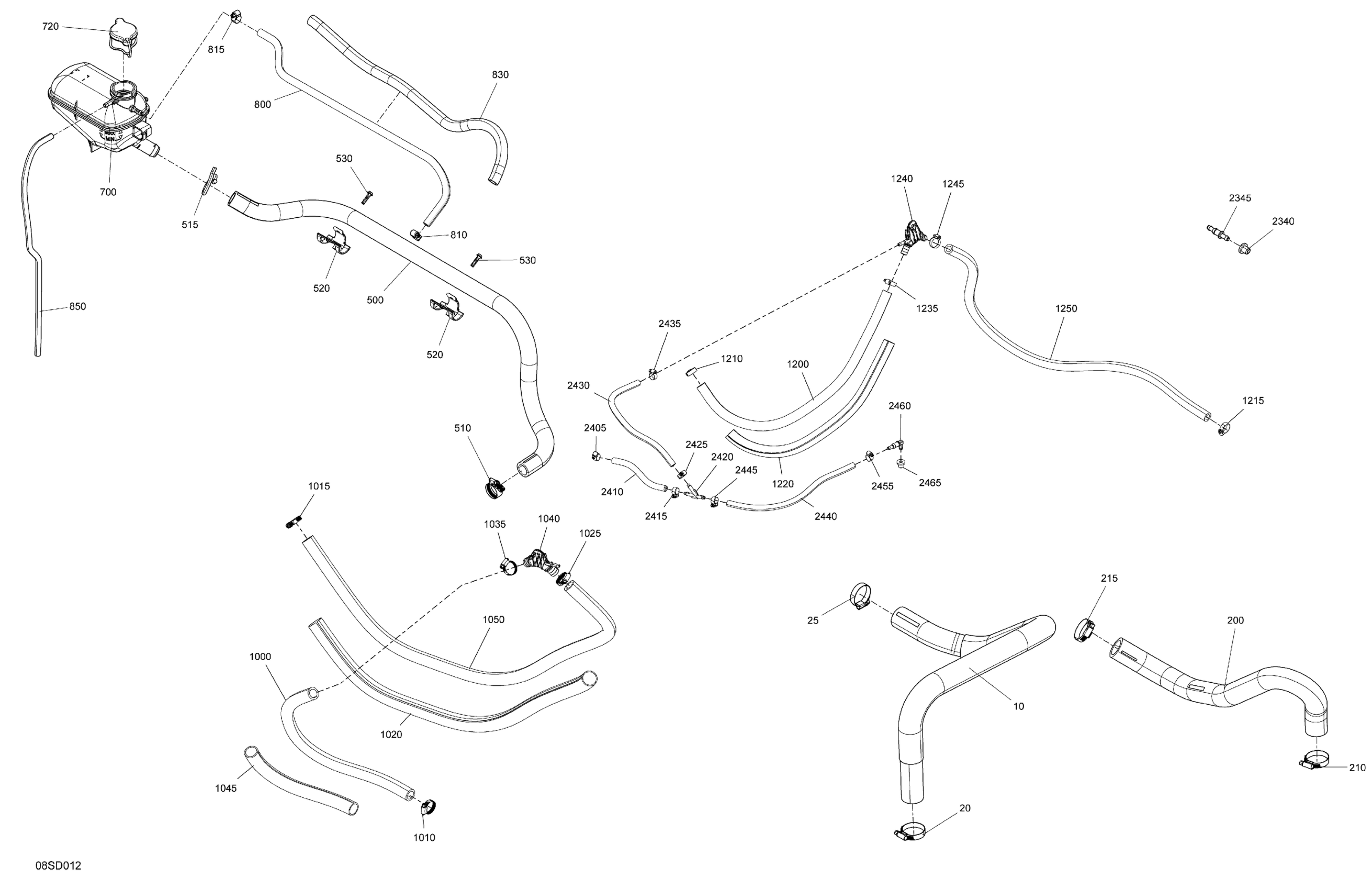

Sea-doo GTX 170 - 11RA - STD package - Blue Abyss,2024 Engine - Cooling Diagram

#

Description
Price

10

Hose

276000516

$51.97

20

Norma Clamp

293650245

$11.77

25

Norma Clamp

293650245

$11.77

200

Formed Hose

276000517

$45.47

210

Norma Clamp

293650245

$11.77

215

Norma Clamp

293650245

$11.77

500

Coolant Tank Hose

276000537

$36.89

510

Tridon Gear Clamp

293650019

$4.81

515

Spring Clamp

293650115

$2.46

520

Hose Support

270001126

$6.28

530

Hex. Flange Screw K50 X 20

241152060

$1.57

700

Coolant Tank

276000419

$94.22

720

Pressure Cap | Includes 720 to 720a

276000100

$20.77

800

Hose 6,4 MM ID

276000425

$7.37

810

Gear Clamp

293650287

$1.74

815

Gear Clamp

293650287

$1.74

830

Was 409901800 Tubing (13 mm)

219704400

$9.40

850

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

1000

Hose 19.0Mm. 2000Mm Long

219704361

$50.74

1010

Gear Clamp

293650284

$3.61

1015

Gear Clamp

293650284

$3.61

1020

Tubing 25 MM 1000MM Long

219704402

$12.69

1025

Gear Clamp

293650284

$3.61

1035

Gear Clamp

293650284

$3.61

1040

Fitting

276000547

$4.23

1045

Tubing 25 MM 1000MM Long

219704402

$12.69

1050

Hose 19.0Mm. 2000Mm Long

219704361

$50.74

1200

Was 276000001 Hose 12.5 mm

219704394

$42.87

1210

Clamp Gear

293650285

$2.68

1215

Clamp Gear

293650285

$2.68

1220

Was 515175319 Tubing 22 mm

219704423

$11.84

1235

Clamp Gear

293650285

$2.68

1240

Fitting

276000565

$4.23

1245

Clamp Gear

293650285

$2.68

1250

Was 276000001 Hose 12.5 mm

219704394

$42.87

2340

Grommet

293720029

$1.13

2345

Straight Fitting

293710133

$13.52

2405

Gear Clamp

293650287

$1.74

2410

Hose 6,35 Mm Id 4000Mm Long

219704547

$10.00

2415

Gear Clamp

293650287

$1.74

2420

Y-Fitting

293710059

$8.19

2425

Gear Clamp

293650287

$1.74

2430

Hose 6,35 Mm Id 4000Mm Long

219704547

$10.00

2435

Gear Clamp

293650287

$1.74

2440

Hose 6,35 Mm Id 4000Mm Long

219704547

$10.00

2445

Gear Clamp

293650287

$1.74

2455

Gear Clamp

293650287

$1.74

2460

Elbow Male Connector

414580600

$3.50

2465

Grommet

293720029

$1.13
