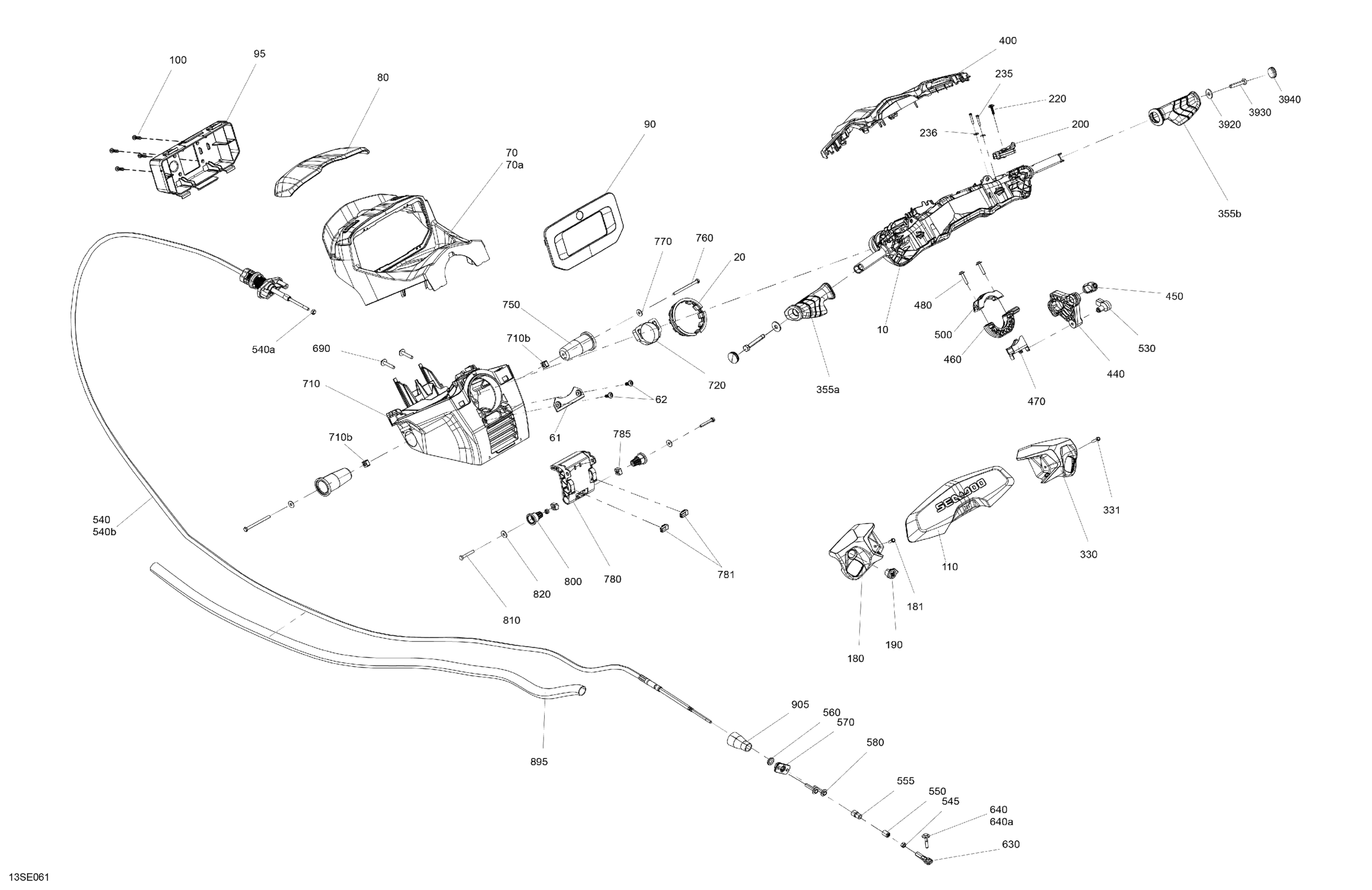

Sea-doo GTX - 130 - (Rental) - 25SF - Bright White, 2025 Mechanic - Steering Diagram

#

Description
Price

10

Steering Column

277002134

$187.28

20

Wear Ring

277001874

$11.18

61

Damper Cover Support

277002426

$4.58

62

Plastite Torx Screw Cone HD.M6.81X2

250001171

$5.04

70

Gauge Support | Includes 70 to 70a

277002417

$39.52

70a

Gauge Support

277002198

$41.01

80

Cluster Cover

277002160

$23.85

90

Speed Gauge Trim

705015356

$7.72

95

Gauge Housing

705015357

$25.34

100

Hex. Flange Screw K50 X 20

241152060

$1.81

110

Deep Black, Handlebar Trim

277002239

$14.31

180

LH Cover

277002233

$15.64

181

Hex. Screw 10-14 X 7/8”

211000023

$3.34

190

Red Button Switch

277002327

$8.57

200

Hand Lever Accelerator

277002138

$35.04

220

Flange Screw Plastite #10, 14 X 7/8"

250001087

$3.31

235

Hex. Flange Screw K40 X 25

241142560

$2.49

236

Flat Washer 4 mm, Stainless

234042600

$1.06

330

RH Cover

277002236

$15.64

331

Hex. Screw 10-14 X 7/8”

211000023

$3.34

355a

LH Handlebar Grip

277002102

$17.88

355b

RH Handlebar Grip

277002101

$17.88

400

Steering Cover - No IBR

277002066

$61.16

440

Steering Arm Kit

295501183

$8.04

450

Steering Arm Kit

295501183

$8.04

460

Arm

277001987

$8.04

470

Spacer

277001654

$13.09

480

Hexagonal Cap Screw M6 X35

250000399

$4.15

500

C Clamp

277002085

$8.25

530

End Fitting Cable

277002119

$19.37

540

Steering Cable | Includes 540 to 540b

277002448

$256.69

540a

Hex. Nut 1/4"-28

211100056

$0.64

540b

Wiper Rod

277001582

$10.13

545

Hex. Nut 1/4"-28

211100056

$0.64

550

Wiper Rod

277001582

$10.13

555

End Piece

277001583

$12.79

560

Rubber Washer

293830063

$1.73

570

Ring Halves

277001856

$11.31

580

Hexagonal Cap Screw M6 X35

250000399

$4.15

630

Ball Joint

277000775

$46.24

640

Hex Sems Screw M6X35

250000970

$2.00

640a

Hex Screw SEMS M6X35, SS

250000969

$2.00

690

Hexagonal Cap Screw M6 X35

250000399

$4.15

710

Steering Column Support Ass'y | Includes 710 to 710b

277002307

$103.70

710b

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

720

Wear Ring

277002318

$14.27

750

Steering Support Pivot

277001605

$17.13

760

Hex Screw M6 X 80

207168060

$6.36

770

Flat Washer M6, Stainless

234062600

$0.73

780

Adjustment Handle

277001996

$8.09

781

Stopper

293830208

$6.88

785

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

800

Pivot

277001652

$14.27

810

Hex. Screw M6 X 40

207064060

$1.61

820

Flat Washer M6, Stainless

234062600

$0.73

895

Corrugated Sheath 22MM - 1250MM

276000520

$24.60

905

Rope Guide

277002150

$0.87

3920

Flat Washer M6, Stainless

234062600

$0.73

3930

Hex. Screw M6 x 45, Scotch Grip

207364560

$1.73

3940

Black, Cap

277000203

$8.58
