Description

Price

750

Engine Cover

270001060

$71.99

1070

Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a

250000933

$2.85

1070a

Hexagonal Screw M8 X 30

250000888

$3.17

1100

Engine Support Ass'y

270001096

$97.99

1110

Cone Washer

250200018

$5.61

1120

Hex. Elastic Nut M8 Brass

232581200

$2.22

1150

Shim 1.3 mm

270000762

$12.99

1570

Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a

250000933

$2.85

1570a

Hexagonal Screw M8 X 30

250000888

$3.17

1600

Engine Support Ass'y

270001081

$109.99

1610

Cone Washer

250200018

$5.61

1620

Hexagonal Head Cap Screw M8 X 45

250000782

$2.85

1650

Shim 1.3 mm

270000762

$12.99

1820

Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a

250000933

$2.85

1820a

Hexagonal Screw M8 X 30

250000888

$3.17

1850

Engine Support Ass'y

270001081

$109.99

1860

Cone Washer

250200018

$5.61

1870

Hexagonal Head Cap Screw M8 X 45

250000782

$2.85

1900

Shim 1.3 mm

270000762

$12.99

2000a

Airbox Base

273000342

$48.99

2000b

Intake Silencer Cover

273000394

$72.99

2000c

Intake Hose

273000359

$48.99

2000d

Hose Connector

273000375

$73.99

2000f

Air Silencer Hose

273000290

$22.49

2000g

Air Silencer Notice Decal

219903177

Unavailable

2000h

Rubber Stopper

708000759

$4.19

2000j

Flange Torx Screw K40 X 16

250000287

$2.11

2000k

Mount Dart

710008294

$1.04

2300

Formed Hose

270000950

$10.99

2305

Breather Valve

273000234

$14.49

2310

Gear Clamp

293650284

$4.44

2315

Gear Clamp

293650284

$4.44

2350

Central Intake Duct

273000376

$47.99

2370

Polyurethane Hose 1000Mm Long | Not Shown

219704393

$7.20

2400

Tridon Clamp

293650179

$11.49

2410

Tridon Clamp

293650179

$11.49

2420

Molded Hose

273000417

$31.99

2430

Tridon Clamp

293650179

$11.49

3000

Intercooler | Includes 3000 to 3000a

276000335

$625.49

3000a

Anode Zinc

271001942

$18.76

3010

Formed Hose

273000418

$83.99

3020

Tridon Gear Clamp

293650244

$9.29

3025

Tridon Clamp

293650179

$11.49

3030

Oultet Hose

273000419

$85.99

3040

Tridon Gear Clamp

293650244

$9.29

3045

Tridon Clamp

293650179

$11.49

3070

Fuel Tank Strap

293850094

$22.49

3075

Fuel Tank Strap

293850093

$21.99

3550

Hex. Flange Screw K50 X 20

241152060

$1.99

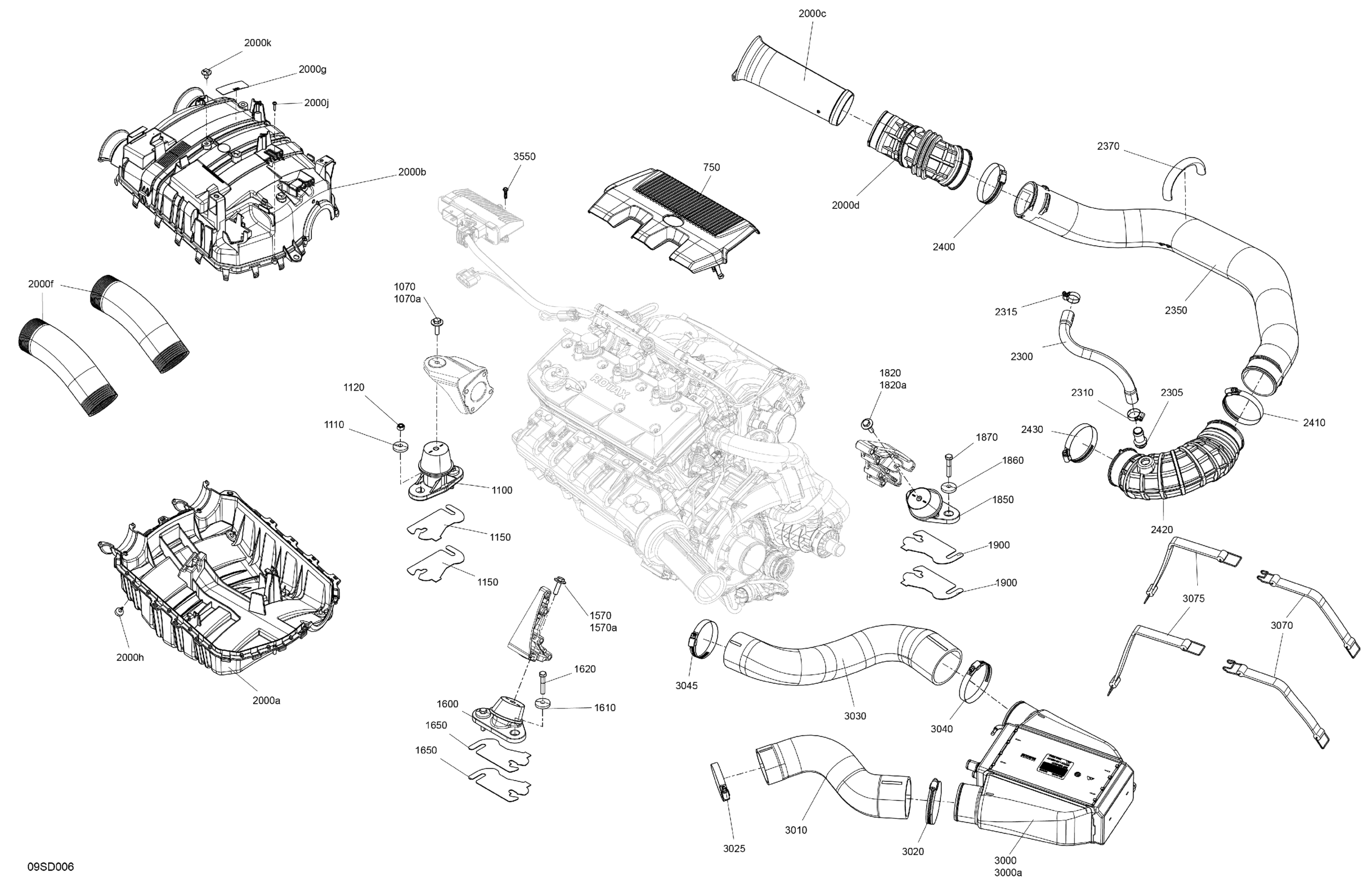

Sea-doo GTR 300 - 34RA - X package - Eclipse Black,2024 Engine - System Diagram

Engine Cover

Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a

Hexagonal Screw M8 X 30

Engine Support Ass'y

Cone Washer

Hex. Elastic Nut M8 Brass

Shim 1.3 mm

Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a

Hexagonal Screw M8 X 30

Engine Support Ass'y

Cone Washer

Hexagonal Head Cap Screw M8 X 45

Shim 1.3 mm

Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a

Hexagonal Screw M8 X 30

Engine Support Ass'y

Cone Washer

Hexagonal Head Cap Screw M8 X 45

Shim 1.3 mm

Airbox Base

Intake Silencer Cover

Intake Hose

Hose Connector

Air Silencer Hose

Air Silencer Notice Decal

Rubber Stopper

Flange Torx Screw K40 X 16

Mount Dart

Formed Hose

Breather Valve

Gear Clamp

Gear Clamp

Central Intake Duct

Polyurethane Hose 1000Mm Long | Not Shown

Tridon Clamp

Tridon Clamp

Molded Hose

Tridon Clamp

Intercooler | Includes 3000 to 3000a

Anode Zinc

Formed Hose

Tridon Gear Clamp

Tridon Clamp

Oultet Hose

Tridon Gear Clamp

Tridon Clamp

Fuel Tank Strap

Fuel Tank Strap

Hex. Flange Screw K50 X 20
