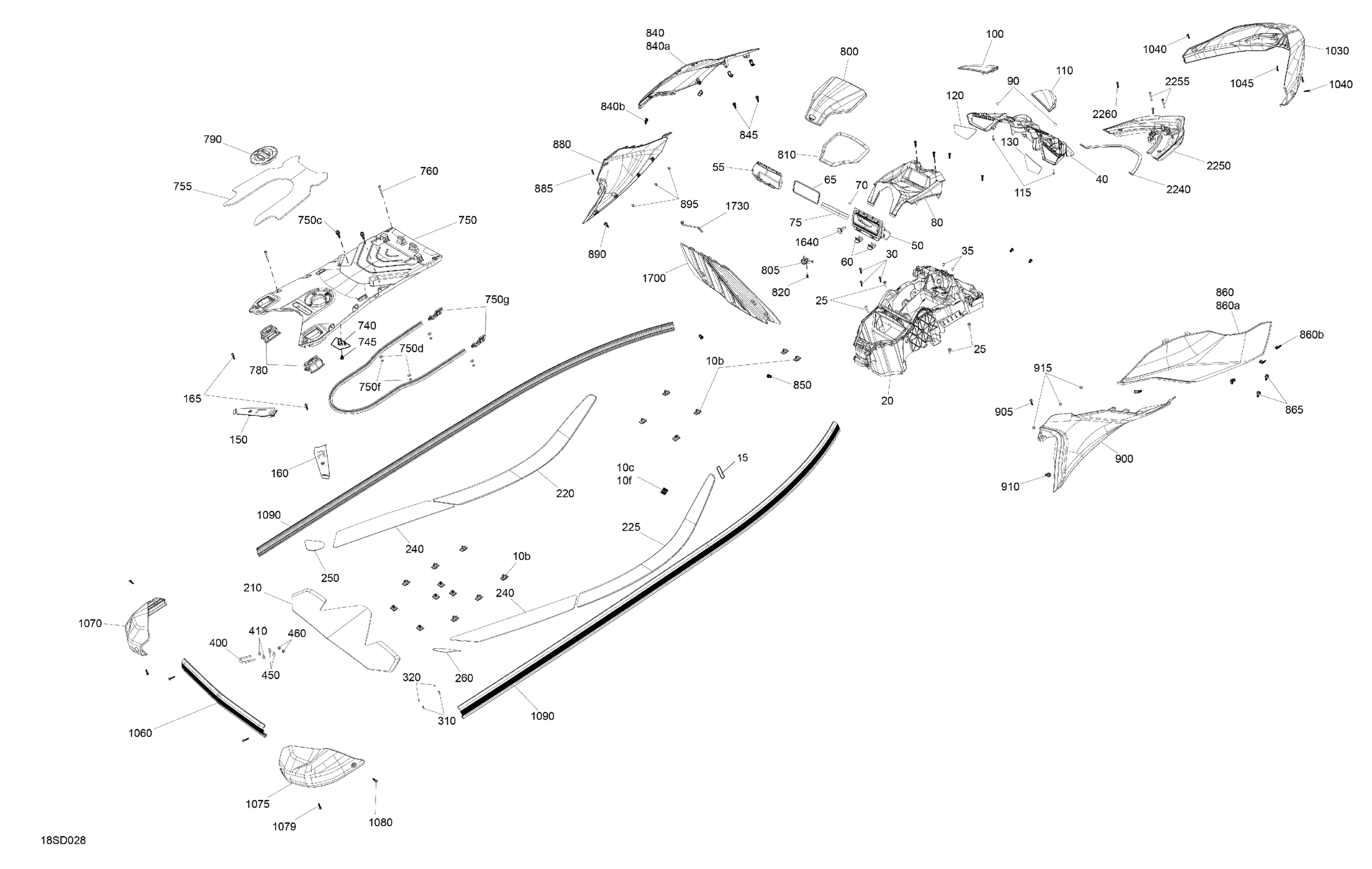

Sea-doo GTR 230 - 36RA - STD package - Eclipse Black,2024 Body - System Diagram

Nut Housing M6 Ass'y | Includes 10b to 10b1a

291006093

$2.15

Anchorage Tie Wrap

293750109

$0.99

Anchorage Tie Wrap

293750109

$0.99

Decal

291005381

$0.94

Console

291005887

$166.39

Hex Screw SEMS M6X35, SS

250000969

$2.00

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.00

Rubber Bumper

293830005

$6.12

Mirror Support

291005178

$61.16

Deep Black, Storage Bin

291005122

$21.61

Box Cover

264000158

$11.72

Clip

269501718

$14.90

Gasket

293250591

$14.46

Vent Membrane

264000137

$10.37

Sealed Compartment Foam

264000135

$10.58

Black, Console Panel

291005085

$51.46

Rubber Bumper

293830005

$6.12

Iceland Grey, LH Miror Cover

269502543

$49.97

Iceland Grey, RH Miror Cover

269502542

$49.97

Hex. Screw 10-14 X 7/8”

211000023

$3.34

LH Mirror Glass

269502274

$82.81

RH Mirror Glass

269502276

$82.81

LH Spacer

291005127

$17.13

RH Spacer

291005182

$17.13

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.45

Anti Slip Mat Deck Rear

291005258

$66.39

LH Front Anti Slip Mat Deck

291005171

$26.09

RH Front Anti Slip Mat Deck

291005172

$26.09

LH/RH Rear Anti Slip Mat Side

291005173

$18.63

LH Rear Footrest Anti Slip Mat

291005885

$3.93

RH Rear Footrest Anti Slip Mat

291005886

$3.93

Rivet 1/8"

293150016

$0.33

Black, Snap Cap

293000014

$0.97

U-Clamp

292000933

$37.28

Flat Washer M8.5 x 18

293050001

$1.48

Flat Washer 8 mm, Stainless

234082600

$2.27

Hex. Elastic Nut M8 Brass

232581200

$1.48

Hose Protector

291004941

$4.22

Black, Dart

293730011

$0.91

Acces Cover Ass'y | Includes 750 to 750g

291005876

$197.73

Stud - Call your local BRP dealership This part replaces 291005183.

291005183

Unavailable

Flat Washer M6, Stainless

234062600

$0.73

Elastic Stop Nut M6, Brass

232561200

$4.03

Seal

291004717

$10.37

Deep Black, Rear Mat

291005861

$36.54

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.82

Linq Bases Kit

295100858

$24.60

Access Cap Ass'y

291004481

$8.21

Deep Black, Glove Box Cover

291005888

$60.42

Glove Box Latch

264000133

$17.88

Gasket

293250498

$27.58

Screw K40 X 10

250001119

$1.88

LH Front Body Panel Ass'y | Includes 840 to 840b

291005531

$164.15

LH Front Body Panel Ass'y | Includes 840 to 840b

291005531

$164.15

Neoprene Stopper

293250546

$0.10

Dard

293730071

$1.03

Tuflok Plastic Rivet

293150230

$1.39

RH Front Body Panel Ass'y | Includes 860 to 860b

291005532

$164.15

RH Front Body Panel Ass'y | Includes 860 to 860b

291005532

$164.15

Neoprene Stopper

293250546

$0.10

Dard

293730071

$1.03

Reef Blue, LH Central Body Panel

291005086

$164.15

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.00

Dard

293730071

$1.03

Rubber Bumper

293830005

$6.12

Reef Blue, RH Cenral Body Panel

291005087

$164.15

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.00

Dard

293730071

$1.03

Rubber Bumper

293830005

$6.12

Bumper Front

291005082

$96.99

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.85

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.00

Lateral Bumper

291005510

$52.21

LH Rear Bumper Corner

291005083

$18.63

RH Rear Bumper Corner

291005084

$18.63

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.00

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.85

Lateral Bumper

291005510

$52.21

USB Plug

269502324

$2.75

Separation Panel Ass'y

291005587

$94.00

Holding Strap

269502111

$16.39

Gasket, Neoprene 2000Mm Long

219704476

$14.51

Body Deflector

291005108

$51.46

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.82

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.45
