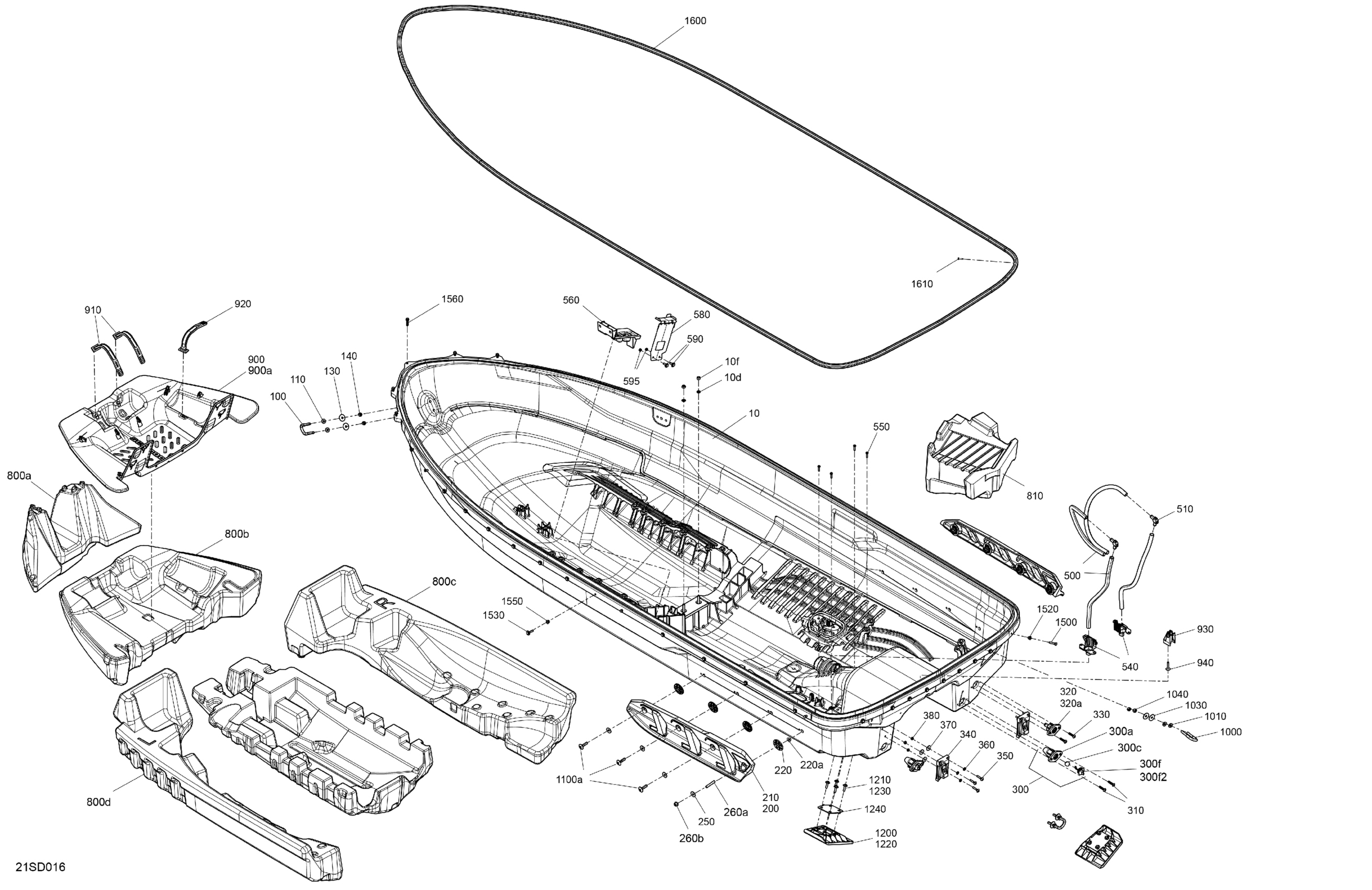

Sea-doo GTR 230 - 36RA - STD package - Eclipse Black,2024 Body - Hull Diagram

#

Description
Price

10

Hull Ass'y | Includes 10 to 10f

292002891

$2,199.97

10d

Flat Washer M8, Stainless

234080600

$1.25

10f

Hex. Elastic Nut M8 Brass

232581200

$1.29

100

U-Clamp

292000933

$32.47

110

Flat Washer M8.5 x 18

293050001

$1.29

130

Flat Washer 8 mm, Stainless

250200175

$1.29

140

Hex. Elastic Nut M8 Brass

232581200

$1.29

200

RH Sponson

292001953

$53.27

210

LH Sponson

292001954

$63.67

220

Housing Nut M8 | Includes 400a1m to 400a1m1

293450387

$5.73

220a

Hex. Flange Nut M8

233181600

$0.86

250

Flat Washer 8 mm

234082410

$1.11

260a

Socket Set Screw M8 x 50

206285044

$3.81

260b

Hex. Flange Nut M8

233081416

$1.63

300

Through Hull Fitting Ass'y | Includes 300 to 300f2

292002766

Unavailable

300a

Through Hull Fitting

292002765

$6.08

300c

Floating Ball

293830080

$5.56

300f

Plug Ass'y | Includes 300f to 300f2

292002022

$11.14

300f2

O-Ring

293300067

$0.85

310

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$1.74

320

Through Hull Fitting Ass'y | Includes 320 to 320a

292002768

$9.30

320a

Through Hull Fitting

292002765

$6.08

330

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$1.74

340

Ladder Trim Fastener

292002697

$6.59

350

Truss Cone Torx Screw M6 X 30

250000924

$6.15

360

Stainless Flat Washer M6

234061600

$0.25

370

Flat Washer M6.6 X 22

250200022

$1.87

380

Elastic Stop Nut M6, Brass

232561200

$3.51

500

Polyurethane Hose 1000Mm Long | Not Shown

219704393

$5.94

510

Fitting Elbow 90°

293710152

$14.92

540

Pump Support

269800956

$2.65

550

Hex. Screw 10-14 X 7/8”

211000023

$2.91

560

Battery Support

292002395

$27.66

580

Battery Support

292002434

$13.83

590

Hex Screw M6 X 20

250000965

$1.74

595

Elastic Stop Nut M6, Brass

232561200

$3.51

800a

Float Hull Front Upper

292002405

$39.97

800b

Float Hull Front

292002399

$101.51

800c

RH Center Float Hull

292002229

$101.51

800d

LH Center Float Hull

292002230

$101.51

810

Foam Support

292002244

$41.51

900

Panel | Includes 900 to 900a

292002397

$50.74

900a

Trunk Shield

292001868

$41.51

910

Strap

269502417

$14.27

920

Strap

269502417

$14.27

930

Strap Anchor

270000988

$8.46

940

Hexagonal Cap Screw M6 X35

250000399

$3.61

1000

U-Clamp

292000933

$32.47

1010

Flat Washer M8.5 x 18

293050001

$1.29

1030

Flat Washer 8 mm, Stainless

250200175

$1.29

1040

Hex. Elastic Nut M8 Brass

232581200

$1.29

1100a

Torx Head Screw M8 X 35

250001215

$4.84

1200

LH Trim Tab

292002102

$14.27

1210

Hexagonal Cap Screw M6 X 25

250000978

$3.61

1220

RH Trim Tab

292002103

$14.27

1230

Hexagonal Cap Screw M6 X 25

250000978

$3.61

1240

Gasket

277002171

$3.48

1500

Hex Sems Screw M6X30

250001183

$2.72

1520

Nut Flange Elastic M6

233261200

$0.82

1530

Hex Sems Screw M6X30

250001183

$2.72

1550

Nut Flange Elastic M6

233261200

$0.82

1560

Hex. Flange Screw M6.81 X 30

243163060

$1.90

1600

Gasket

292002242

$50.74

1610

Self Drilling Screw #8 X 3/4

250001132

$1.31
