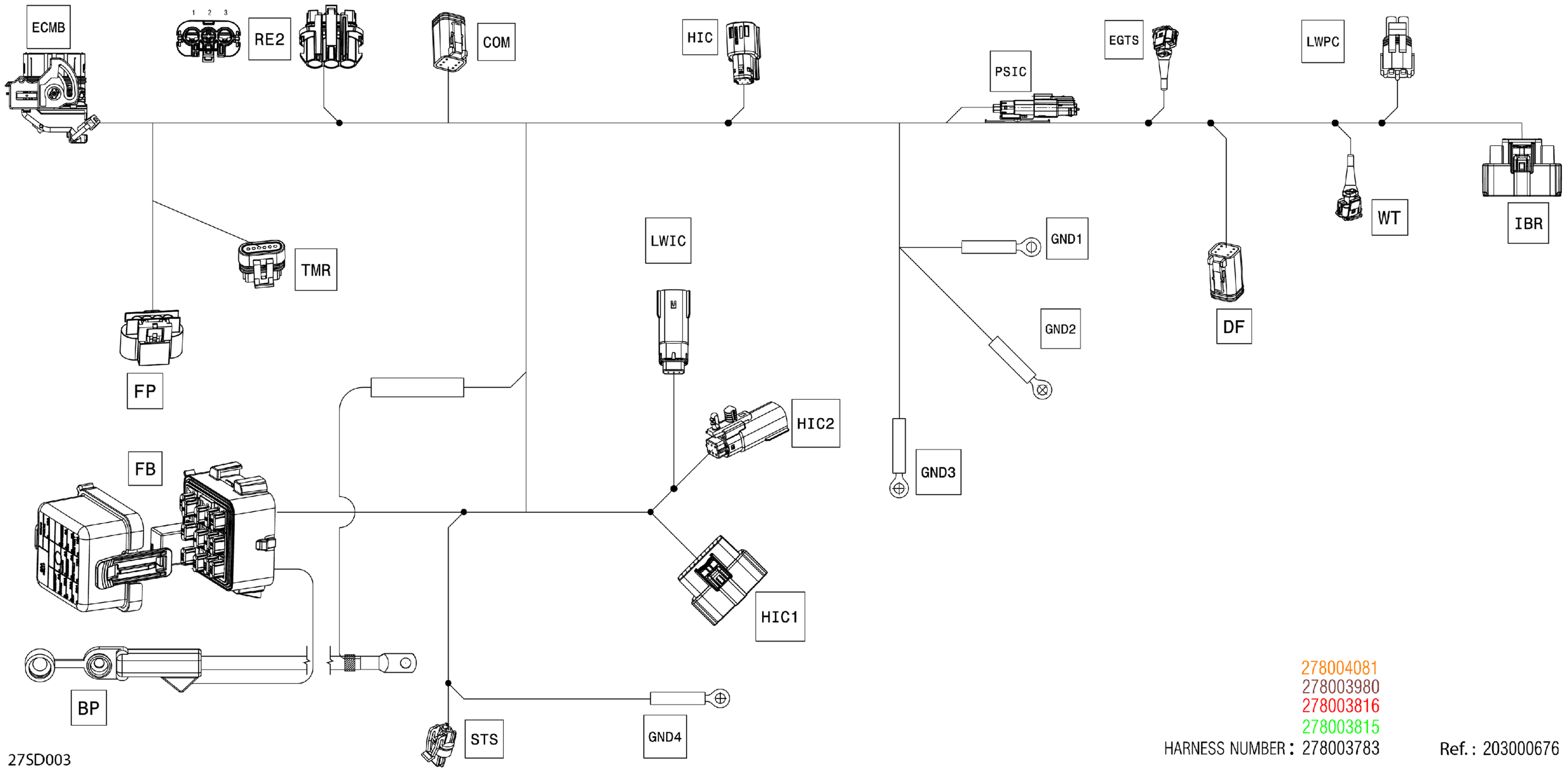

Sea-doo GTR 230 - 36RA - STD package - Eclipse Black,2024 Electric - Main Harness - 278003783 Diagram

#

Description
Price

1000

Main Wiring Harness

278003783

$339.99

BP

Battery Cable

278003716

$71.99

COM

Female Housing 6 Circuits

710002706

$20.49

COM

Lock

710002705

$4.44

COM

Female Terminal

710005438

$4.29

COM

Female Terminal

710005439

$4.44

ECMB

Cover, 48 positions

710001591

$12.18

ECMB

Female Terminal Housing, 48 Circuits

710001588

$48.49

ECMB

Plug

710001593

$2.21

ECMB

Plug

710001592

$2.21

ECMB

Female Terminal

710001590

$2.09

ECMB

Female Terminal

710001727

$3.19

ECMB

Female Terminal

710001589

$2.21

EGTS

Housing

710001136

$13.22

EGTS

Seal

415128501

$1.89

EGTS

Female Terminal

710001137

$4.55

FB

Fuse Cover

278003879

$4.44

FB

Little Fuse, 5 Amperes

710000742

$8.79

FB

Little Fuse, 5 Amperes

710000742

$8.79

FB

Little Fuse, 5 Amperes

710000742

$8.79

FB

Little Fuse, 5 Amperes

710000742

$8.79

FB

Little Fuse, 15 Ampere

710000745

$8.49

FB

Little Fuse, 15 Ampere

710000745

$8.49

FB

Little Fuse, 15 Ampere

710000745

$8.49

FB

Little Fuse, 15 Ampere

710000745

$8.49

FB

Little Fuse, 30 Amperes

710000747

$8.49

FB

Little Fuse, 30 Amperes

710000747

$8.49

FB

Little Fuse, 30 Amperes

710000747

$8.49

FB

Little Fuse, 30 Amperes

710000747

$8.49

FB

Fuse Base Ass'y

278003448

$31.99

FB

Seal Plug

278002880

$7.86

FB

Relay 30 Amp

278003828

$13.99

FB

Wire Seal

278000218

$4.39

FB

Wire Seal

710000048

$7.69

FB

Wire Seal

278001065

$7.69

FB

Female Terminal

710000890

$4.55

FB

Female Terminal

710000918

$7.69

FB

Female Terminal

278002578

$1.04

FB

Female Terminal

515177177

$6.49

FP

Male Housing, 4 Circuits

278002185

$7.90

FP

Lock

710001222

$2.09

FP

Wire Seal

278002186

$5.50

FP

Female Terminal

278002187

$6.39

GND1

Open Barrel

278000992

$2.21

GND2

Open Barrel Terminal

278001392

$4.79

GND3

Open Barrel Terminal

278001392

$4.79

GND4

Open Barrel

278000992

$2.21

HIC

Female Housing, 4 circuits

278003535

$25.99

HIC

Female Terminal | Not Shown

278002453

$5.79

HIC

Female Terminal | Not Shown

278002642

$3.79

HIC1

Female Housing 20 Circuits

278002858

$22.49

HIC1

Female Terminal | Not Shown

278002453

$5.79

HIC1

Female Terminal | Not Shown

278002642

$3.79

HIC2

Clip Connector

515178223

$2.09

HIC2

Male Housing, 6 Circuits

278002906

$14.24

HIC2

Male Terminal

278002454

$5.79

IBR

Female Housing ,16 Circuits

278003484

$17.59

IBR

Seal Plug

278002880

$7.86

IBR

Sealing Cap

278002860

$1.79

IBR

Seal

278003046

$0.92

IBR

Female Terminal

278003045

$2.99

IBR

Female Terminal | Not Shown

278002453

$5.79

RE2

Female Housing, 3 Circuits

710000879

$25.99

RE2

Seal

710000881

$17.99

RE2

Female Terminal

710000877

$9.12

STS

Female Housing, 2 Circuits

515177192

$9.12

STS

Wire Seal

710001163

$7.69

STS

Female Terminal

710001164

$8.89
