- North America - GTI 130 - 38RA - STD package - Bright White,2024
07- Body - Hull

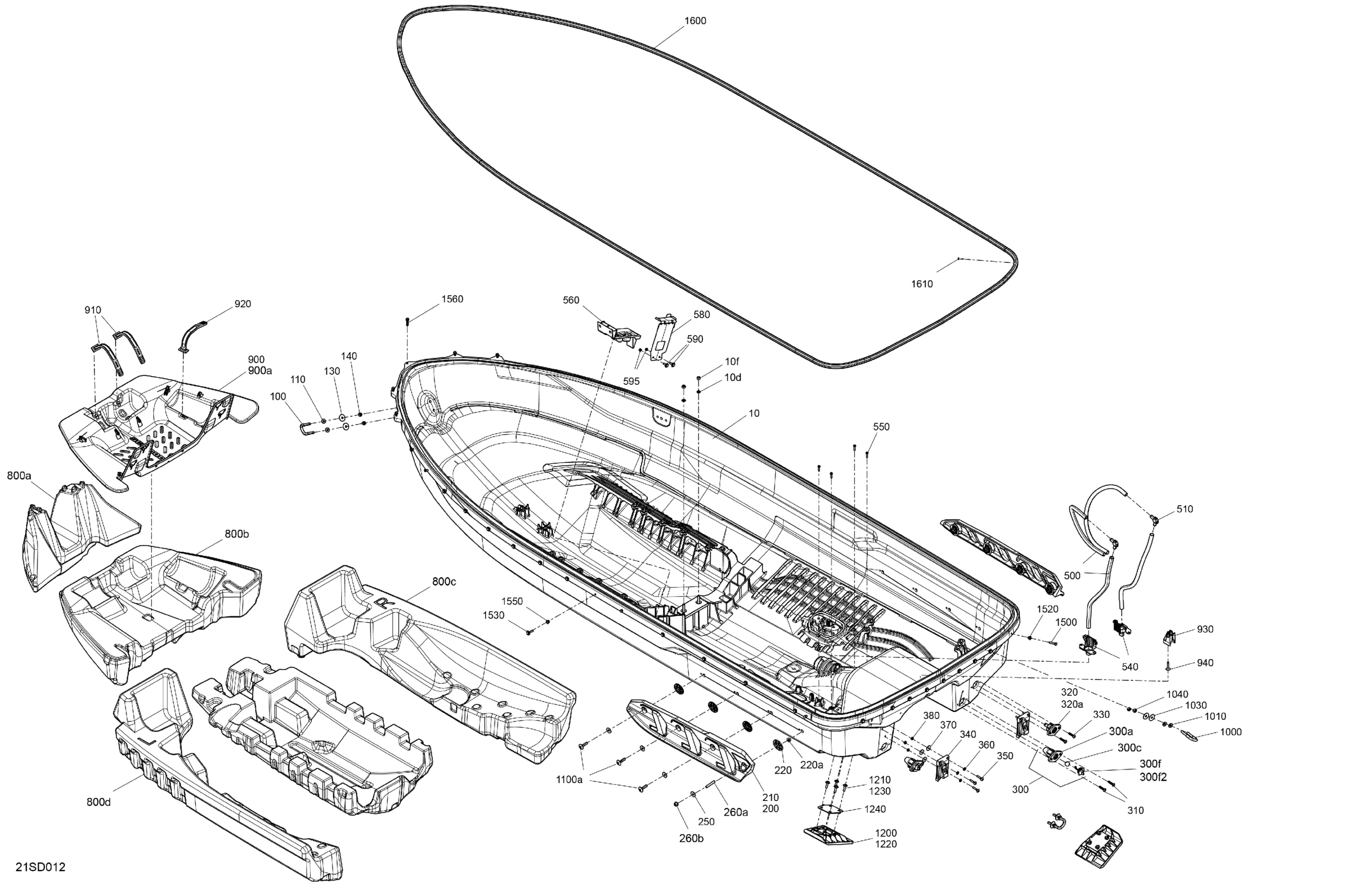

Sea-doo North America - GTI 130 - 38RA - STD package - Bright White,2024 07- Body - Hull Diagram
#
10
Hull Ass'y | Includes 10 to 10f
292002891
$2.00
10d
Flat Washer M8, Stainless
234080600
$1.48
10f
Hex. Elastic Nut M8 Brass
232581200
$2.22
100
U-Clamp
292000933
$59.49
110
Flat Washer M8.5 x 18
293050001
$3.07
130
Flat Washer 8 mm, Stainless
250200175
$3.06
140
Hex. Elastic Nut M8 Brass
232581200
$2.22
200
RH Sponson
292001953
$54.99
210
LH Sponson
292001954
$65.99
220
Housing Nut M8 | Includes 400a1m to 400a1m1
293450387
$7.09
220a
Hex. Flange Nut M8
233181600
$1.05
250
Flat Washer 8 mm
234082410
$1.47
260a
Socket Set Screw M8 x 50
206285044
$4.65
260b
Hex. Flange Nut M8
233081416
$1.15
300
Through Hull Fitting Ass'y | Includes 300 to 300f2
292002766
$15.49
300a
Through Hull Fitting
292002765
$7.79
300c
Floating Ball
293830080
$7.19
300f
Plug Ass'y | Includes 300f to 300f2
292002022
$14.49
300f2
O-Ring
293300067
$1.04
310
Plastite Torx Screw M6.81X30 | Not Shown
250000879
$2.11
320
Through Hull Fitting Ass'y | Includes 320 to 320a
292002768
$14.49
320a
Through Hull Fitting
292002765
$7.79
330
Plastite Torx Screw M6.81X30 | Not Shown
250000879
$2.11
340
Ladder Trim Fastener
292002697
$8.49
350
Truss Cone Torx Screw M6 X 30
250000924
$7.51
360
Stainless Flat Washer M6
234061600
$0.33
370
Flat Washer M6.6 X 22
250200022
$2.72
380
Elastic Stop Nut M6, Brass
232561200
$4.23
500
Polyurethane Hose 1000Mm Long | Not Shown
219704393
$7.20
510
Fitting Elbow 90°
293710152
$18.49
540
Pump Support
269800956
$3.39
550
Hex. Screw 10-14 X 7/8”
211000023
$3.59
560
Battery Support
292002395
$14.49
580
Battery Support
292002434
$14.49
590
Hex Screw M6 X 20
250000965
$2.11
595
Elastic Stop Nut M6, Brass
232561200
$4.23
800a
Float Hull Front Upper
292002405
$36.99
800b
Float Hull Front
292002399
$104.99
800c
RH Center Float Hull
292002229
$104.99
800d
LH Center Float Hull
292002230
$104.99
900
Panel | Includes 900 to 900a
292002397
$54.99
900a
Trunk Shield
292001868
$43.99
910
Strap
269502417
$17.69
920
Strap
269502417
$17.69
930
Strap Anchor
270000988
$10.28
940
Hexagonal Cap Screw M6 X35
250000399
$4.44
1000
U-Clamp
292000933
$59.49
1010
Flat Washer M8.5 x 18
293050001
$3.07
1030
Flat Washer 8 mm, Stainless
250200175
$3.06
1040
Hex. Elastic Nut M8 Brass
232581200
$2.22
1100a
Torx Head Screw M8 X 35
250001215
$5.92
1200
LH Trim Tab
292002102
$18.49
1210
Hexagonal Cap Screw M6 X 25
250000978
$4.44
1220
RH Trim Tab
292002103
$18.49
1230
Hexagonal Cap Screw M6 X 25
250000978
$4.44
1240
Gasket
277002171
$4.33
1500
Hex Sems Screw M6X30
250001183
$2.85
1520
Nut Flange Elastic M6
233261200
$0.99
1530
Hex Sems Screw M6X30
250001183
$2.85
1550
Nut Flange Elastic M6
233261200
$0.99
1560
Hex. Flange Screw M6.81 X 30
243163060
$2.32
1600
Gasket
292002242
$54.99
1610
Self Drilling Screw #8 X 3/4
250001132
$1.37
