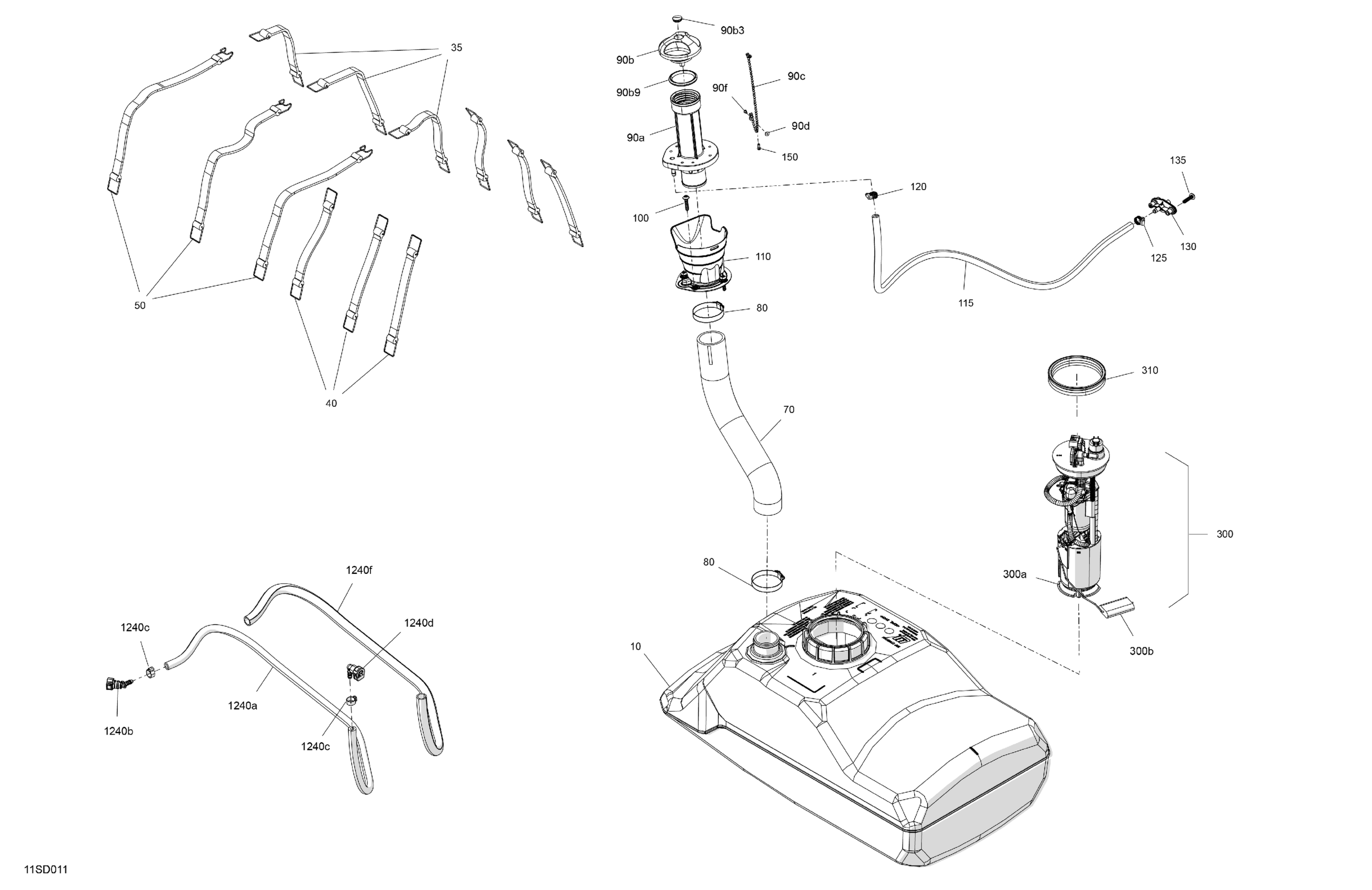

Sea-doo GTI 130 - 38RA - STD package - Bright White,2024 Engine - Fuel Diagram

Description

Price

Fuel Tank

275501144

$320.87

Holding Strap

293850112

$16.39

Holding Strap

293850112

$16.39

Holding Strap

293850134

$19.37

Fuel Tank Hose

275501055

Unavailable

Norma Clamp

293650081

$11.33

90a

Filler Neck

275501005

$36.54

90b

Fuel Cap Ass'y | Includes 90b to 90b9

275501094

$55.19

90b3

Black, Snap Cap

293000034

$8.58

90b9

Gasket

293250417

$3.64

90c

Fuel Cap Chain

275500972

$15.64

90d

Flat Washer M3, Stainless

234032600

$0.52

90f

Pop Rivet 1/8"

390407900

$1.34

100

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.00

110

Gas, Deflector

293250480

$8.39

115

Hose I.D. 7.9Mm 3000Mm Long

219704359

$305.94

120

Clamp Gear

293650285

$3.07

125

Clamp Gear

293650285

$3.07

130

Fitting Sub Ass'y

275501022

$6.36

135

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.85

150

Screw K40 X 10

241140060

$1.43

300

Fuel Pump Ass'y | Includes 300 to 300b

275501039

$425.99

300a

Fuel Filter

270600113

$31.31

300b

Fuel Level Sensor

275501163

$98.48

310

Gasket

293250173

$17.88

1240a

Hose I.D. 7.9Mm 3000Mm Long

219704359

$305.94

1240b

Quick Fitting 45° Ass'y | Includes 34 to 35

709000627

$14.48

1240c

Crimp Clamp

293650053

$2.78

1240d

Quick Disconnect

275500921

$14.48

1240f

Tubing 16 Mm 1000Mm Long

219704408

$7.15
