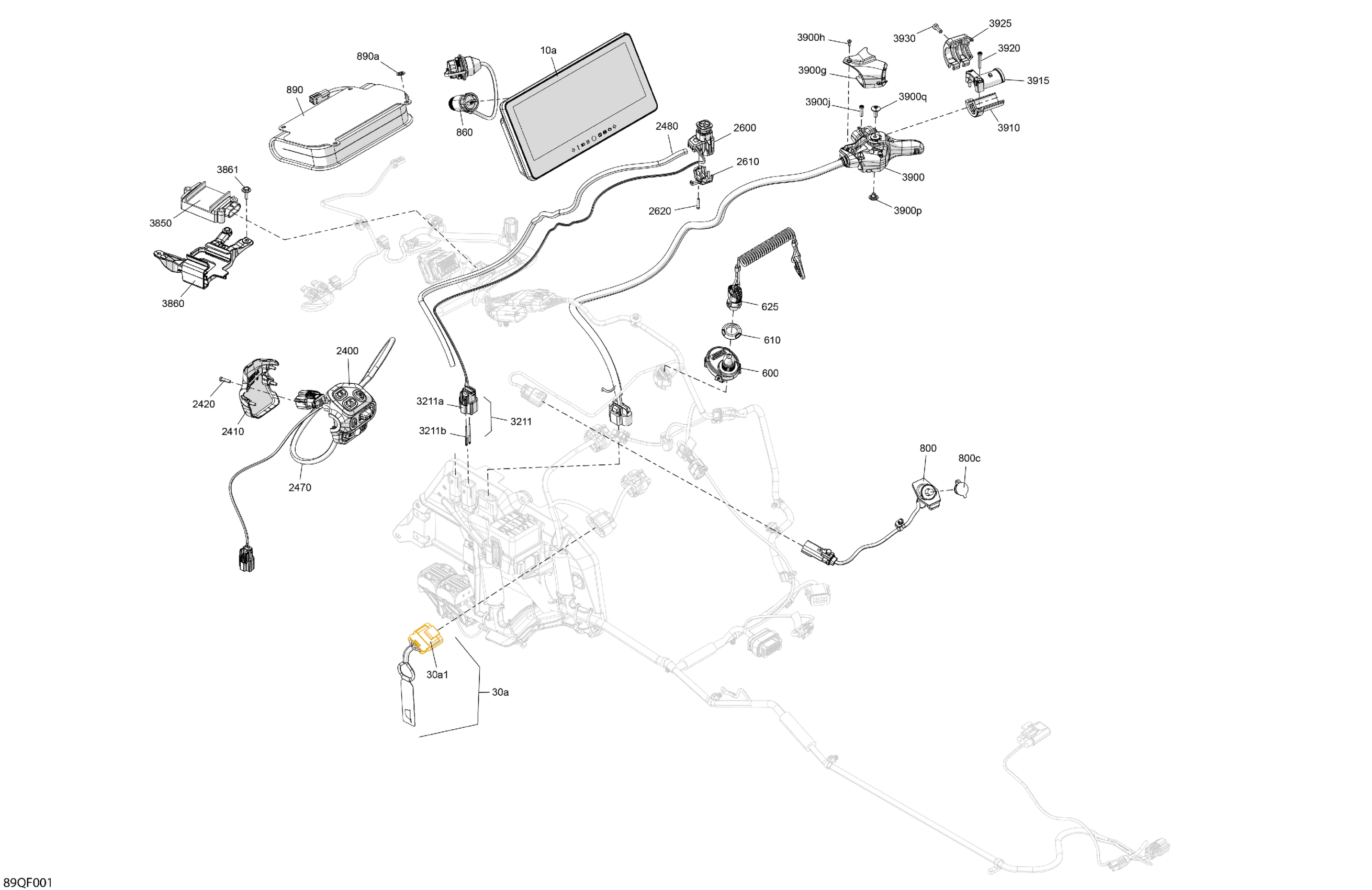

Ski-Doo GRAND TOURING - SPORT - ESTA - Bright White - 14X120X0.75LFF Track, 2026 Electric - Upper Section Diagram

Description

Price

10a

Multifunction Gauge 10

710010374

Unavailable

600

Terminal DESS CAN | CARB Vehicle

710008832

$60.42

610

Specialized Nut

278004274

$2.72

625

Green - RF Key Ass'y | Includes 625 to 625d

515178287

$64.58

800

Heated Visor Wiring Harness Ass'y | Includes 800 to 800c

515179484

$25.35

800c

Cap

572103300

$9.65

860

USB Wiring Harness Ass'y

515179248

$74.58

890

NEEDS DESCRIPTION | Includes 890 to 890a This part replaces 515179904.

860202888

$109.99

890a

Push Nut

732610072

$1.72

2400

LH Front Multifunction Switch

515179679

$188.43

2410

Rear Housing

415130659

$17.66

2420

Torx Screw

250000671

$0.83

2470

Braided Sleeve

415130141

$56.12

2480

Braided Sleeve

415130141

$56.12

2600

Emergency Stop Switch

515179472

$76.89

2610

Clamp

515179182

$8.60

2620

Screw PT. Socket T10 K30 X 16

250001201

$3.20

3211

Connector Plug | Includes 3210 to 3210b

515179276

$13.58

3211a

Connector Molex Female 8 Cavities

515179228

$46.89

3211b

Sealing Cap

278002860

$1.42

3850

GPS

278004506

$85.77

3860

Module Support

515179316

$13.45

3861

Screw M4 X 16

250000725

$2.87

3900

Throttle Housing Ass'y | Includes 3800 to 3800q

512061605

$278.43

3900g

Cap

512060862

$11.57

3900h

Torx Screw M2.9 x 9.5

250000623

$3.11

3900j

Torx Screw

250000671

$0.83

3900p

Screw

512060961

$10.52

3900q

Torx Truss Head Screw W Nylon M5X14

250001059

$2.06

3910

Lower Handle Support

512061550

$8.66

3915

Upper Handle Support

512061551

$8.66

3920

Torx Screw #8-18

250000263

$1.02

3925

Front Housing

512060987

$8.34

3930

Torx Screw M5 X 14

250000632

$6.18

30a

Emergency Response Wiring Harness | Includes 30a to 30a1

515179565

$52.28

30a1

Housing

710001231

$12.05
