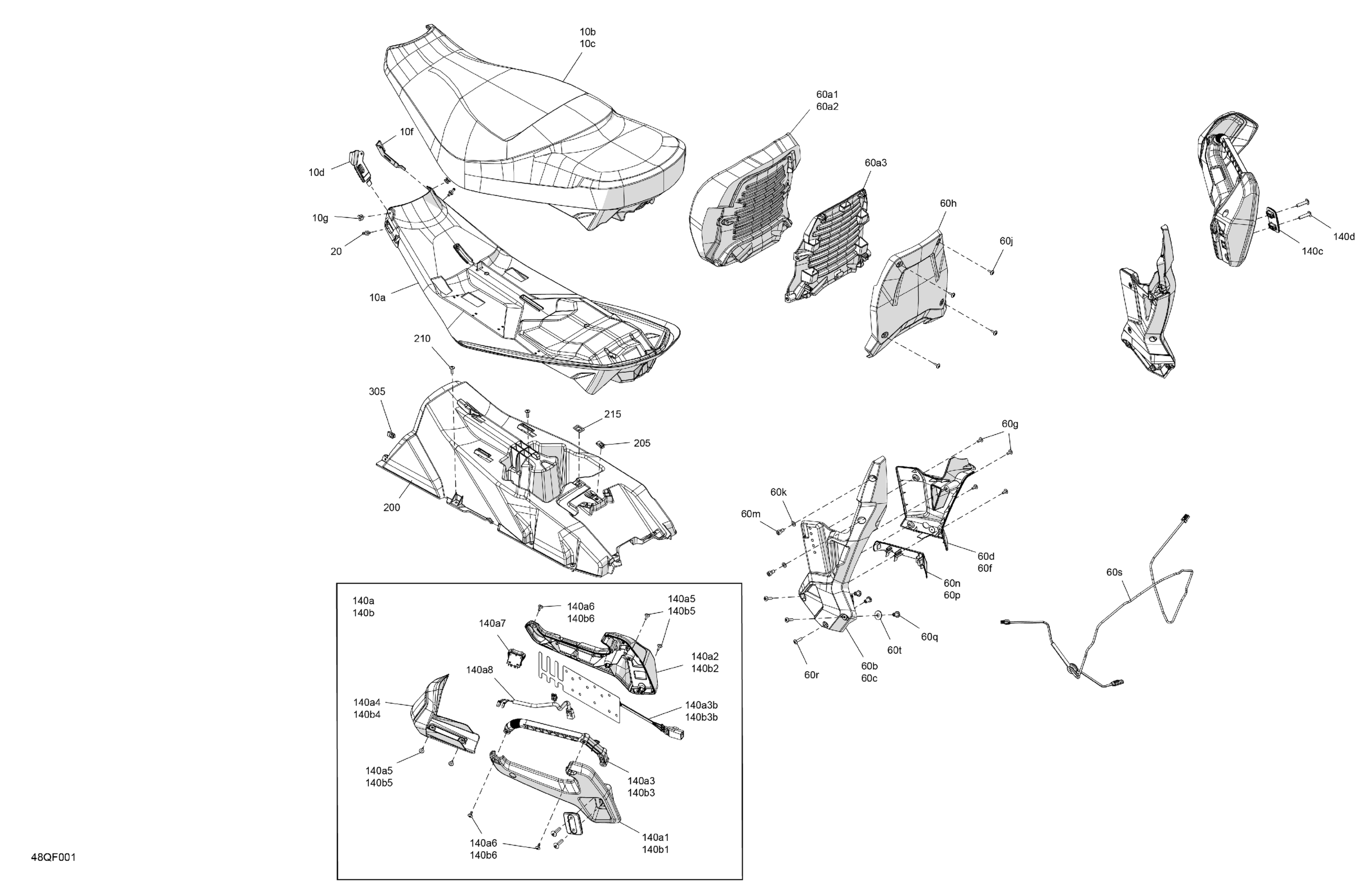

Ski-Doo North America - GRAND TOURING - SPORT - ESTA - Bright White - 14X120X0.75LFF Track, 2026 07- Body - Seat Diagram

Description

Price

10a

1+1 Seat Base

510006556

$93.99

10b

Foam Seat

510007793

$214.99

10c

Seat Cover

510007748

$241.49

10d

LH Seat Latch

510006530

$7.19

10f

RH Seat Latch

510006531

$7.19

10g

Pop Rivet 3/16"

293150222

$1.29

Seat Pin

510007411

$6.95

60a1

Backrest Foam

510006363

$219.99

60a2

Backrest Cover

510007751

$241.99

60a3

Backrest Support

510006777

$48.99

60b

LH Arm

510006479

$88.99

60c

RH Arm

510006480

$88.99

60d

LH Trim

510006706

$20.99

60f

RH Trim

510006705

$20.99

60g

Torx Truss M6X14

250000789

$5.39

60h

Backrest Trim

510006366

$81.99

60j

Screw M4 X 16

250000889

$3.09

60k

Flat Washer M8, Stainless

234080600

$1.48

60m

Screw-Socket HD.DIN.912

205081654

$1.90

60n

LH Base Cover

510006169

$3.91

60p

RH Base Cover

510006170

$3.91

60q

Threaded Insert

511000822

$2.09

60r

Torx-Truss M/S M6 X 25

250001000

$5.29

60s

Seat Wiring Harness

515178490

$51.99

60t

Washer

503191926

$1.58

140a

LH Passenger Heated Hand Hold Ass'y | Includes 140a to 140a8

510006526

$312.49

140a1

LH Ext. Passenger Hand Hold

510006492

$67.99

140a2

LH Int. Passenger Hand Hold

510006527

$67.99

140a3

Passenger Heated Handhold | Includes 140a3 to 140a3b

510006488

$102.99

140a3b

Heated Element

515178576

Unavailable

140a4

LH Passenger Handle Deflector

510006495

$28.99

140a5

Screw M4 X 16

250000889

$3.09

140a6

Torx-Truss M/S M5 X 14

250000941

$2.11

140a7

Rocker Switch

515178505

$27.49

140a8

Heated Grip Wiring Harness

515178464

$28.99

140b

RH Heated Passenger Hand Hold Ass'y | Includes 140b to 140b6

510006485

$312.49

140b1

RH Ext. Passenger Hand Hold

510006486

$67.99

140b2

RH Int. Passenger Hand Hold

510006487

$67.99

140b3

Passenger Heated Handhold | Includes 140a3 to 140a3b

510006488

$102.99

140b3b

Heated Element

515178576

Unavailable

140b4

RH Passenger Handle Deflector

510006489

$28.99

140b5

Screw M4 X 16

250000889

$3.09

140b6

Torx-Truss M/S M5 X 14

250000941

$2.11

140c

Passenger Handle Trim

510006602

$13.99

140d

Torx Truss M/S M8 x 35

250000753

$1.15

200

Seat Anchorage

510007687

$109.99

205

Panel Nut M5 X 0.8

250000958

$4.23

210

Hex. Torx Screw M6 X 20

250000984

$1.69

215

Rivet Plate

517305109

$4.99

305

Panel Nut M6 X 1.0

250100198

$2.11
