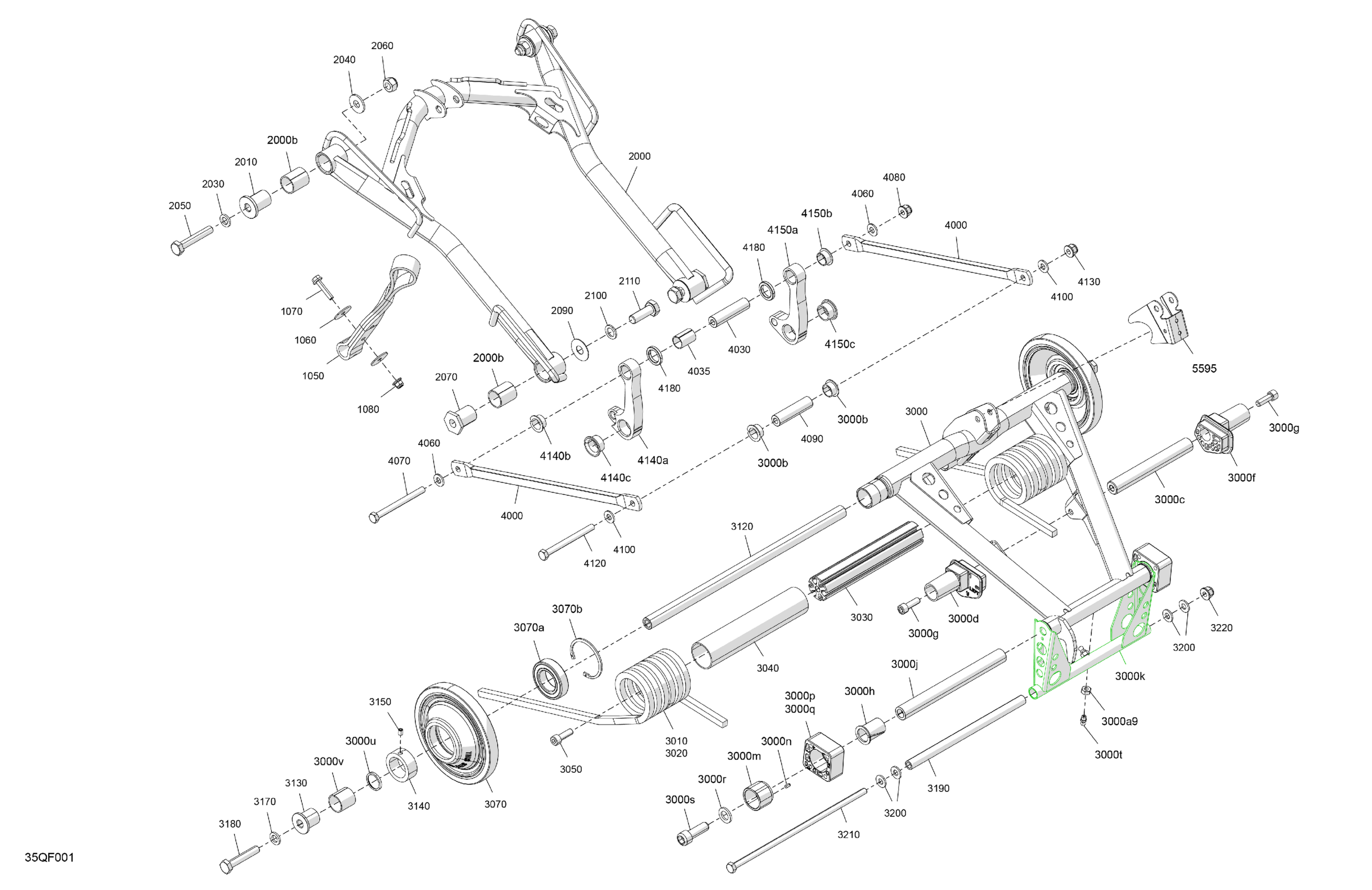

Ski-Doo GRAND TOURING - SPORT - ESTA - Bright White - 14X120X0.75LFF Track, 2026 Suspension - Rear - Upper Section Diagram

#

Description
Price

1050

Stopper Strap

503195313

$28.49

1060

Washer | Not Shown

503193995

$4.54

1070

Hex. Flange Screw M6 X 1.0 X 30

207663056

$4.44

1080

Hex. Flange Elastic Nut M6

233261466

$2.00

2000

Front Arm Ass'y | Includes 2000 to 2000b

503191579

$465.99

2000b

Bushing

503191554

$6.14

2010

Axle

503190698

$20.99

2030

Washer

503192496

$0.77

2040

Washer

503191926

$1.58

2050

Hex. Cap Screw M10 X 60

207006056

$7.51

2060

Elastic Locking Nut M10

233601466

$2.11

2070

Lower Axle

503191966

$15.89

2090

Washer

503190656

$2.96

2100

Washer

503192491

$4.54

2110

Hex. Cap Screw M12 X 35

250000537

$3.17

3000

Rear Arm Ass'y | Includes 3000 to 3000v

503191785

$232.99

3000a9

Hexagonal Nut M6

232061404

$0.34

3000b

Swivel Bushing

503191555

$7.83

3000c

Spring Cam Axe

503191178

$28.99

3000d

LH Spring Cam

503191191

$15.79

3000f

RH Spring Cam

503191190

$15.29

3000g

Socket Head Screw M8 X 25, Scotch Grip | XXC

205582544

$1.90

3000h

Cushion

503191640

$5.93

3000j

Lower Shaft

503192330

$45.99

3000k

Pivot Arm

503191302

$124.99

3000m

Block Guide

503189488

$39.99

3000n

Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership

250400005

Unavailable

3000p

LH Block, 4 Positions

503192301

$25.99

3000q

RH Block, 4 Positions

503192300

$25.99

3000r

Washer | 7415/7416. 7417/7418.

503189148

$2.85

3000s

Socket Head Screw M12 X 35

205523554

$4.44

3000t

Grease Fitting

408200700

$3.49

3000u

Washer

503191774

$2.32

3000v

Bushing

503191773

$16.79

3010

LH Rear Torsion Spring

503197509

$62.49

3020

RH Rear Torsion Spring

503197510

$62.49

3030

Spring Axle

503191344

$36.99

3040

Socket

503197349

$7.49

3050

Socket Head Screw M8 X 25, Scotch Grip | XXC

205582544

$1.90

3070

Black Wheel Ass'y, 144 mm | Includes 3070 to 3070b

503191777

$37.99

3070a

Ball Bearing

503191778

$12.49

3070b

Retaining Ring

415129598

$12.01

3120

Upper Shaft

503191215

$38.99

3130

Bushing

503197689

$17.39

3140

Retaining Ring

503191782

$17.99

3150

Socket Set Screw M6 X 8

206260844

$1.48

3170

Washer

503192496

$0.77

3180

Hex. Screw S.Grip M10 X 55

250000605

$8.11

3190

Pivot Arm Axle

503196358

$19.99

3200

Washer

503192494

$3.17

3210

Bolt M8 X 248mm

503192440

$30.49

3220

Elastic Flange Nut M8

233281466

$1.01

4000

Link Rod

503191802

$28.49

4030

Axle Bar (Long)

503190643

$17.39

4035

Bushing

503191553

$5.93

4060

Washer

503192494

$3.17

4070

Screw M8 X 90

503193372

$4.44

4080

Elastic Flange Nut M8

233281466

$1.01

4090

Axle Bar (Long)

503190643

$17.39

4100

Washer

503192494

$3.17

4120

Screw M8 X 90

503193372

$4.44

4130

Elastic Flange Nut M8

233281466

$1.01

4140a

LH Rocker Arm

503191890

$62.49

4140b

Swivel Bushing

503191555

$7.83

4140c

Bushing

503191552

$5.93

4150a

RH Rocker Arm

503191894

$62.49

4150b

Swivel Bushing

503191555

$7.83

4150c

Bushing

503191552

$5.93

4180

Spacer

503197374

$19.99

5595

Rear Skid Plate

503197695

$46.49
