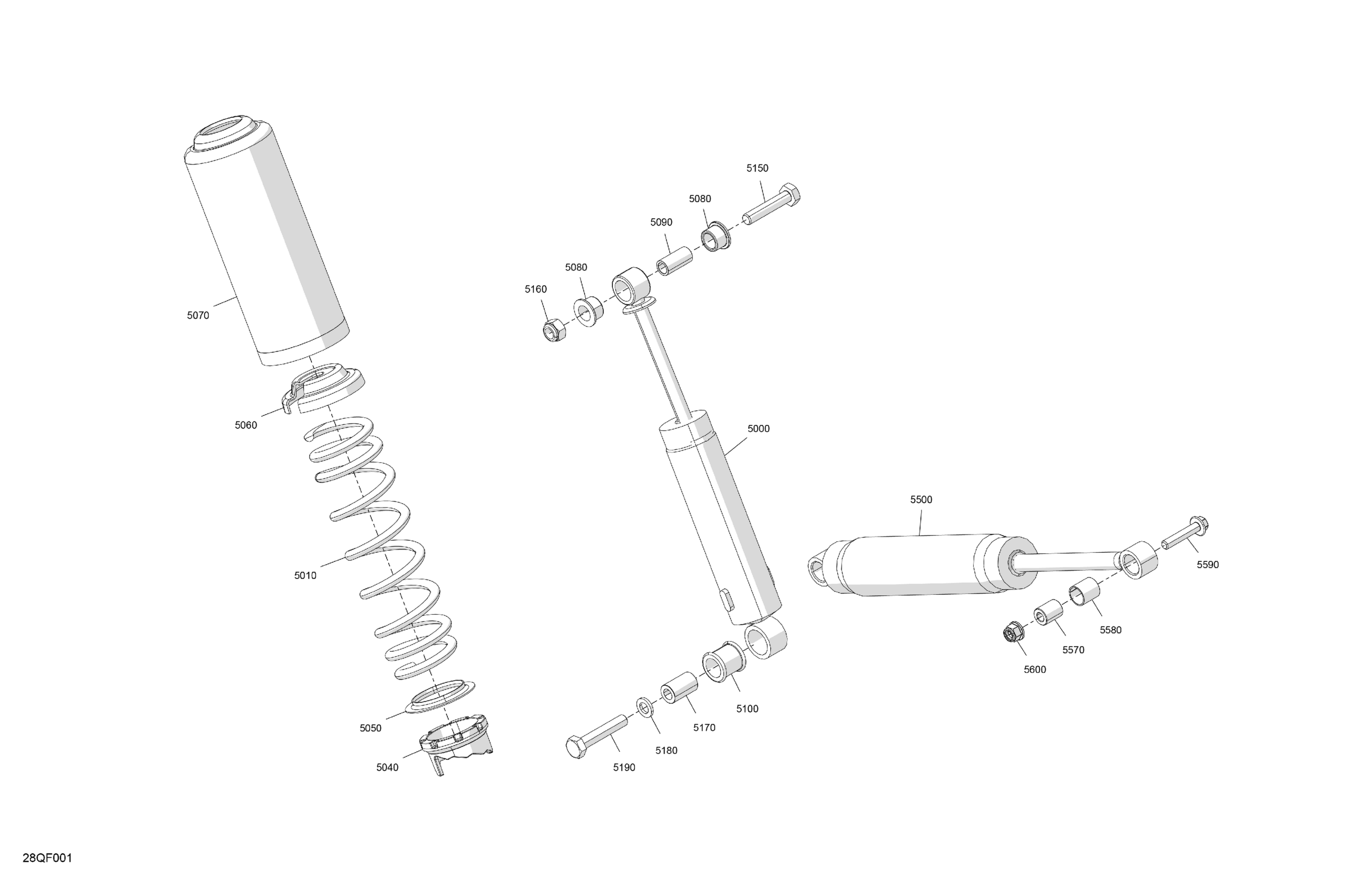

Ski-Doo North America - GRAND TOURING - SPORT - ESTA - Bright White - 14X120X0.75LFF Track, 2026 05- Suspension - Rear Shocks Diagram

Description

Price

5000

Center Shock

503192266

$164.49

5010

Black, Spring

503189686

$67.99

5040

Adjustment Cam

505073625

$12.99

5050

Spring Guide

505074995

$9.99

5060

Spring Stopper

706200881

$12.99

5070

Protector

503193663

$37.99

5080

Urethane Bushing

503189117

$8.19

5090

Bushing | Includes 240d to 240d1

503189282

$4.34

5100

Bushing

503189271

$13.99

5150

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

5160

Elastic Locking Nut M10

233601466

$2.11

5170

Central Shock Axle

503190604

$14.15

5180

Washer

503192496

$0.77

5190

Hex. Screw M10 X 55, Scotch Grip | RT

207205544

$2.96

5500

Rear Shock Absorber Hpg

503197342

$248.99

5570

Axle Shock Absorber

503196509

$12.58

5580

Leg Cushion

505072663

$9.23

5590

Hex. Flange Screw M6 X 45

250001028

$1.26

5600

Elastic Flange Nut M8

233281466

$1.01
