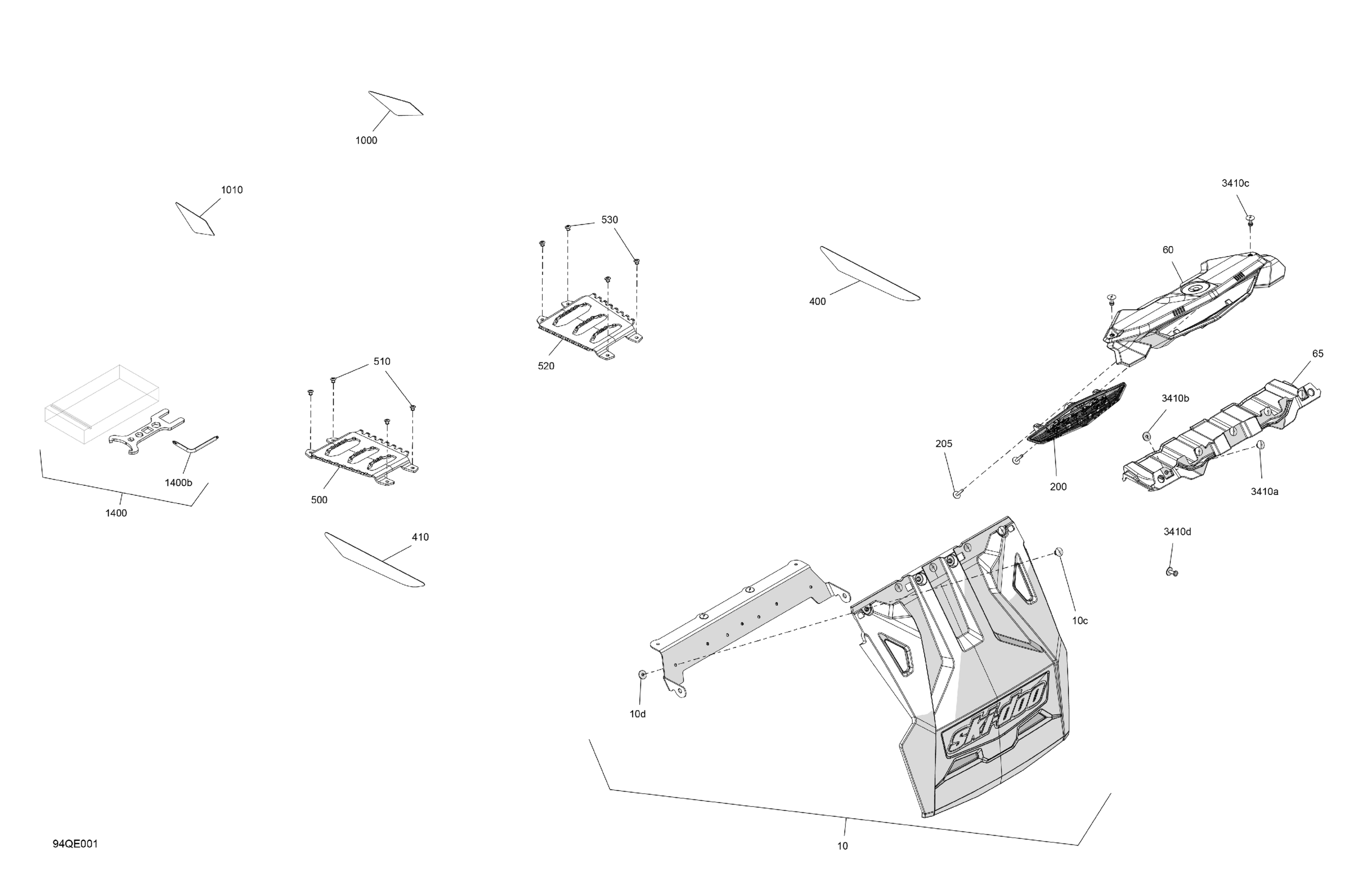

Ski-Doo GRAND TOURING - SPORT - ESSA - Bright White - 120X14X0.75LFF Track - 2025 Miscellaneous - Utilities Diagram

Description

Price

Snow Guard Ass'y | Includes 10 to 10d

520003148

$162.66

10c

Black, Pop Rivet 3/16 X ,550

293150292

$0.86

10d

Washer

517124300

$0.16

Light Fairing

520001487

$18.63

Trim Cap

520003059

$20.12

200

Tail Light

520002710

$74.60

205

Plastite Screw Type K-40, M4 X 25

250000101

$2.87

400

Red, RH Rear Reflector

520001900

$16.39

410

Red, LH Rear Reflector

520001901

$16.39

500

Deep Black, Passenger Footrest

520002896

$44.75

510

Black, Pop Rivet 3/16 X ,425

293150300

$0.69

520

Deep Black, Passenger Footrest

520002896

$44.75

530

Black, Pop Rivet 3/16 X ,425

293150300

$0.69

1000

RH Front Reflector

520002343

$7.72

1010

LH Front Reflector

520002344

$9.67

1400

Tool Kit | Includes 1400 to 1400b

520003189

$49.99

1400b

Key

520001815

$11.99

3410a

Black, Pop Rivet 3/16 X ,550

293150292

$0.86

3410b

Washer

517124300

$0.16

3410c

Black, Ornit Rivet 3/16 X ,800

293150306

$1.04

3410d

Black, 3/16" Pop Rivet

293150263

$1.88
