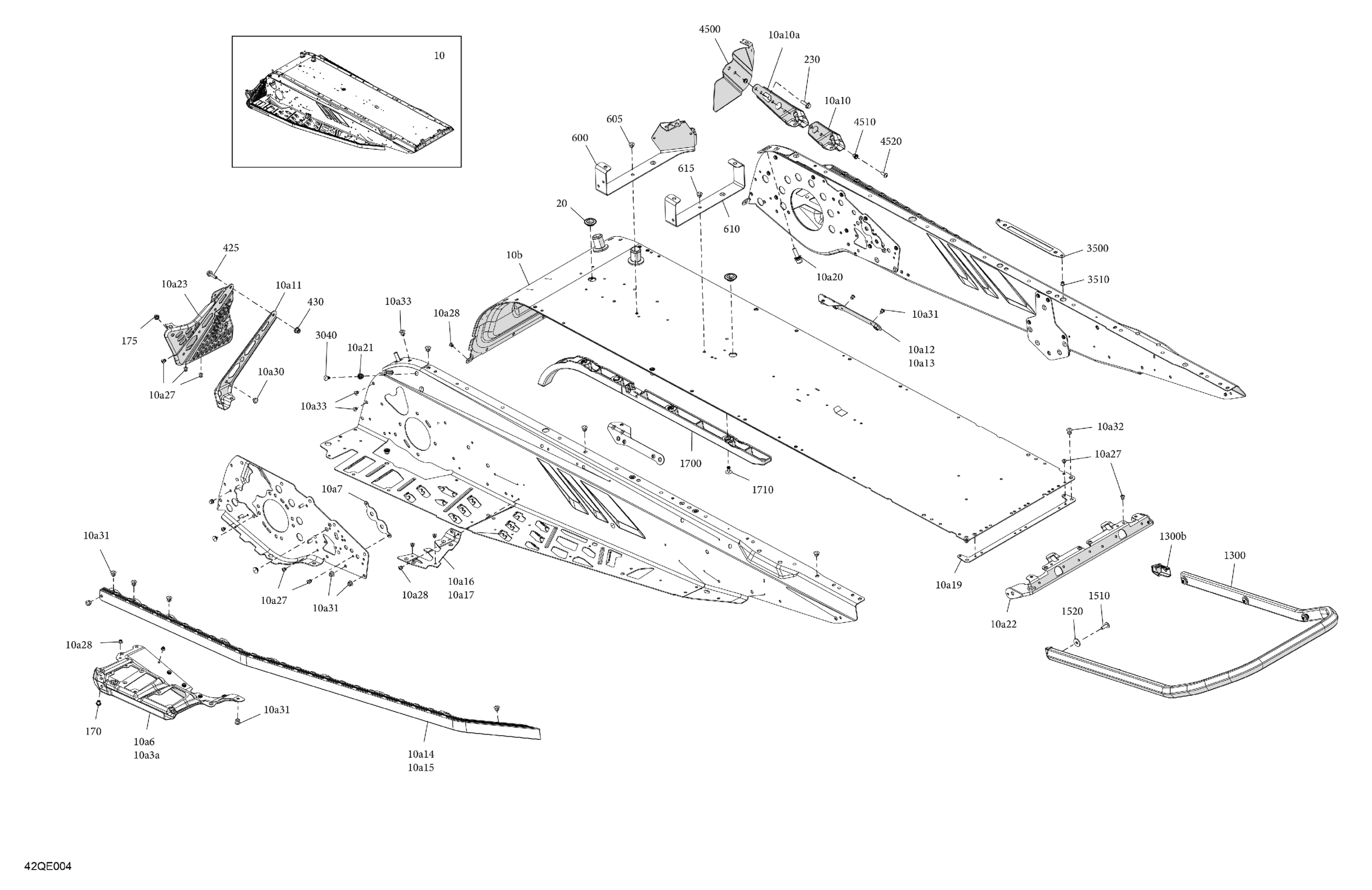

Ski-Doo GRAND TOURING - SPORT - ESSA - Bright White - 120X14X0.75LFF Track - 2025 Frame - System - Rear Section Diagram

Description

Price

Chassis Tunnel Module 129 Ass'y | Includes 10 to 10b

415130953

$3,346.12

10a3a

Deep Black, RH Footrest Reinforcement

518330738

$82.28

10a6

Deep Black, LH Footrest Reinforcement

518331523

$82.28

10a7

Front Suspension Arm Reinforcement

518327233

$16.12

10a10

RH Stirrup Reinforcement | Includes 10a10 to 10a10a

518335978

$18.43

10a10a

Stirrup Reinforcement

518334507

$18.43

10a11

Deep Black, LH Chassis Reinforcement

518332924

$18.43

10a12

LH Member Fixation Plate

518330299

$16.12

10a13

RH Under Chassis Reinforcement

518331745

$16.89

10a14

RH Roller

518328451

$180.74

10a15

LH Roller

518328452

$180.74

10a16

LH Footrest Reinforcement

518332296

$18.43

10a17

RH Footrest Reinforcement

518332297

$18.43

10a19

Spacer

518331532

$2.02

10a20

Protruding Stud M8 x 22

250300652

$4.28

10a21

Clinch Nut M6 Hexsert

605636003

$4.12

10a22

Rear Cap

518328990

$20.74

10a23

LH Footrest

518333858

$38.43

10a27

Avex Rivet

390909100

$0.29

10a28

Avex Rivet

390909200

$0.29

10a30

Rivet Ornit 6,5 X 10.5

293150264

$1.94

10a31

Rivet Ornit 6,5 X 12.5

293150265

$1.94

10a32

Ornit Rivet 6,5 X 14.5

293150266

$1.94

10a33

Rivet Ornit 6,5 X 16.5

293150267

$1.94

10b

Radiator Tunnel 129 Ass'y

518335615

$692.28

Black, Plug

293730052

$6.37

170

Insert M5 - 0.8

293450267

$4.22

175

Insert M5 - 0.8

293450267

$4.22

230

Hex. Flange Screw M6 X 20

207562056

$1.74

425

Hex. Flange Screw M6 X 20

207562056

$1.74

430

Elastic Flange Nut M6 X 1.0

233261416

$1.74

600

Front Battery Charger Support

518334262

$65.35

605

Rivet Ornit 6,5 X 10.5

293150264

$1.94

610

Rear Battery Charger Support

518334779

$27.66

615

Rivet Ornit 6,5 X 10.5

293150264

$1.94

1300

Rear Bumper | Includes 1300 to 1300b

518328745

$114.99

1300b

Cap

520001612

$8.62

1510

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$1.74

1520

Flat Washer

224061201

$1.11

1700

Front Protector

518329982

$17.66

1710

Pop Rivet 3/16”

293150108

$1.23

3040

Dart

293730079

$1.92

3500

Seat Anchorage

518334925

$43.82

3510

Rivet Avibulb 3/16

293150203

$0.29

4500

Bright White, RH Footrest

518335989

$76.89

4510

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

4520

Torx Head Screw M6 X 16

250000717

$1.74
