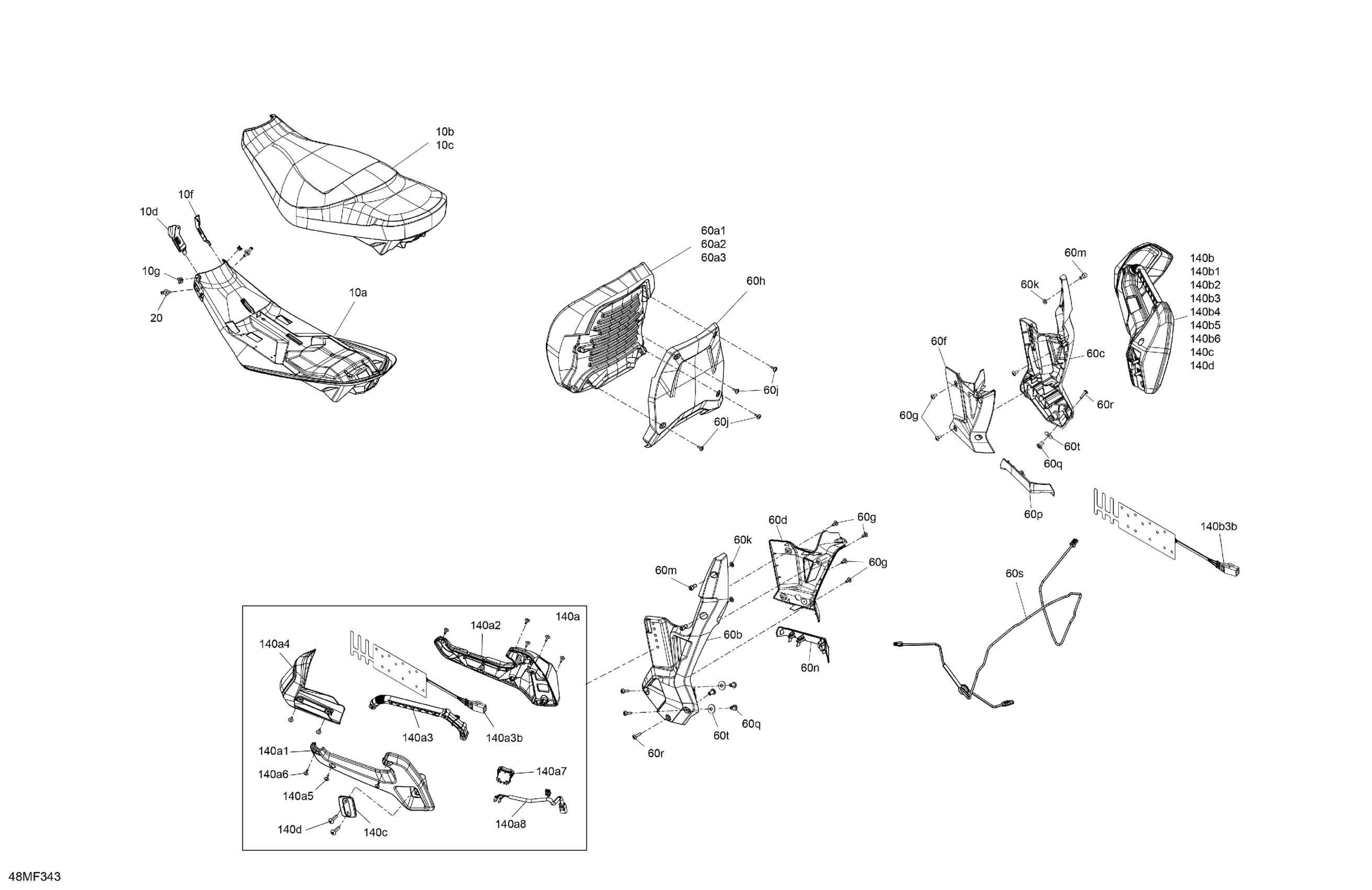

Ski-Doo GRAND TOURING - SPORT - 600 ACE - ETTA - Neo Yellow - 15X137X1.25ST3 Track, 2026 Body - Seat Diagram

Description

Price

10a

1+1 Seat Base

510006556

$88.43

10b

Seat Foam

510006336

$203.05

10c

Seat Cover

510007547

$230.74

10d

LH Seat Latch

510006530

$7.29

10f

RH Seat Latch

510006531

$7.29

10g

Pop Rivet 3/16"

293150222

$1.00

Seat Pin

510007411

$6.20

60a1

Backrest Foam

510006363

$207.66

60a2

Backrest Cover

510007550

$226.12

60a3

Backrest Support

510006777

$45.35

60b

LH Arm

510006479

$83.05

60c

RH Arm

510006480

$83.05

60d

LH Trim

510006706

$19.20

60f

RH Trim

510006705

$19.20

60g

Torx Truss M6X14

250000789

$4.41

60h

Backrest Trim

510006366

$76.89

60j

Screw M4 X 16

250000889

$2.46

60k

Flat Washer M8, Stainless

234080600

$1.25

60m

Screw-Socket HD.DIN.912

205081654

$1.85

60n

LH Base Cover

510006169

$3.82

60p

RH Base Cover

510006170

$3.82

60q

Threaded Insert

511000822

$1.78

60r

Torx-Truss M/S M6 X 25

250001000

$4.33

60s

Seat Wiring Harness

515178490

$52.28

60t

Washer

503191926

$1.57

140a

LH Passenger Heated Hand Hold Ass'y | Includes 140a to 140a8

510006526

$306.12

140a1

LH Ext. Passenger Hand Hold

510006492

$66.12

140a2

LH Int. Passenger Hand Hold

510006527

$66.12

140a3

Passenger Heated Handhold | Includes 140a3 to 140a3b

510006488

$100.74

140a3b

Heated Element

515178576

Unavailable

140a4

LH Passenger Handle Deflector

510006495

$27.66

140a5

Screw M4 X 16

250000889

$2.46

140a6

Torx-Truss M/S M5 X 14

250000941

$2.06

140a7

Rocker Switch

515178505

$26.89

140a8

Heated Grip Wiring Harness

515178464

$27.66

140b

RH Heated Passenger Hand Hold Ass'y | Includes 140b to 140b6

510006485

$306.12

140b1

RH Ext. Passenger Hand Hold

510006486

$66.12

140b2

RH Int. Passenger Hand Hold

510006487

$66.12

140b3

Passenger Heated Handhold | Includes 140a3 to 140a3b

510006488

$100.74

140b3b

Heated Element

515178576

Unavailable

140b4

RH Passenger Handle Deflector

510006489

$27.66

140b5

Screw M4 X 16

250000889

$2.46

140b6

Torx-Truss M/S M5 X 14

250000941

$2.06

140c

Passenger Handle Trim

510006602

$11.71

140d

Torx Truss M/S M8 x 35

250000753

$0.91
