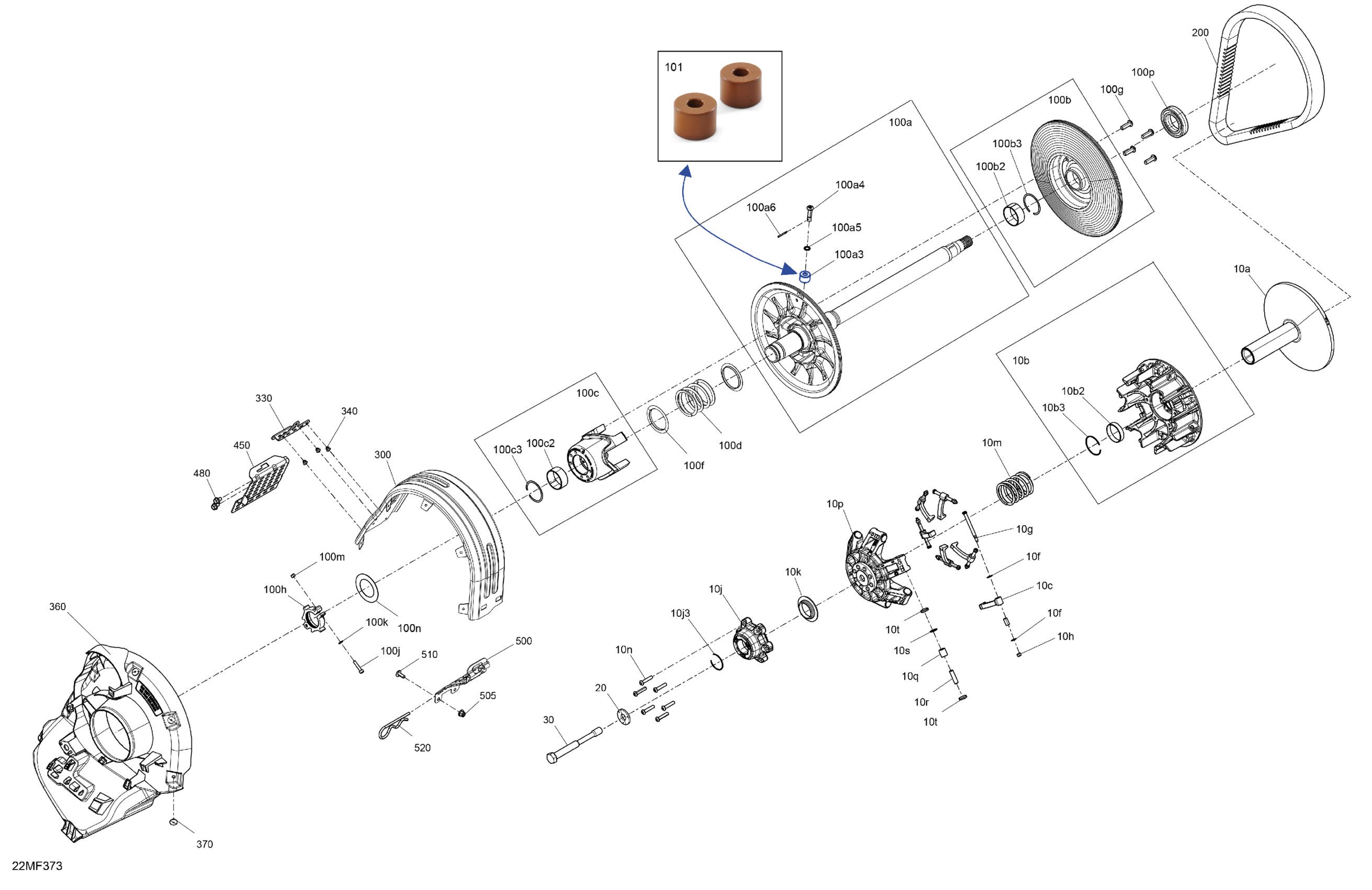

Ski-Doo North America - GRAND TOURING - SPORT - 600 ACE - ETTA - Neo Yellow - 15X137X1.25ST3 Track, 2026 04- Drive - Pulley Diagram

Description

Price

10a

Fixed Flange Ass'y

417224091

$309.99

10b

Sliding Flange Ass'y | Includes 10b to 10b3

417224101

$319.99

10b2

Bushing

417222758

$22.49

10b3

Circlip

293370037

$3.19

10c

Ramp 715

417223510

$75.99

10f

Thrust Washer

417223255

$2.00

10g

Ramp Axle

417223694

$11.05

10h

Nut-Stop Elastic DIN.985

417224336

$0.87

10j

Spring Cover Ass'y | Includes 10j to 10j3

417223907

$45.99

10j3

Circlip

293370065

$0.98

10k

Seat Spring

417223752

$15.27

10m

Clutch Spring

417223745

$17.39

10n

Torx Screw M6 X 30

250000580

$6.08

10p

Governor Cup Ass'y

417223865

$274.99

10q

Roller

417223767

$11.59

10r

Roller Axle

417223257

$6.99

10s

O-Ring

293300185

$0.98

10t

Slider Shoe

417223919

$6.83

Conical Spring Washer M14

250200144

$4.44

Pulley Drive Bolt

417300432

$41.49

100a

Sheave Driven Pulley Fixed Ass'y | Includes 100a to 100a6

417127751

$459.99

100a3

Pulley Roller

417127016

$24.49

100a4

Pivot Stud

417127294

$14.49

100a5

Lock Washer 8 mm

250200009

$2.11

100a6

Spring Pin

250400070

$2.00

100b

Slider Flange Ass'y | Includes 100b to 100b3

417127366

$159.99

100b2

Bushing ID 41mm OD 45mm X 19mm L

417127318

$19.49

100b3

Circlip

293370049

$4.99

100c

Cam Driven Pulley Ass'y | Includes 100c to 100c3

417127923

$111.49

100c2

Bushing ID 41mm OD 45mm X 19mm L

417127318

$19.49

100c3

Circlip

293370049

$4.99

100d

Spring

417127061

$46.49

100f

Swivel Abutment

417127116

$9.39

100g

Button Head Torx Screw M8 X 25 S.Gr

250000757

$2.00

100h

Calibration Ass'y

415129604

$21.49

100j

Socket Screw M5 X 25

250000981

$1.68

100k

Flat Washer M5

234051410

$0.53

100m

Elastic Stop Nut M5

232551414

$0.87

100n

Washer

417127155

$8.26

100p

Ball Bearing

504152574

$35.99

101

QRS XD Roller Kit (2)

861805577

$82.99

200

Drive Belt

417300585

$154.99

300

Belt Guard

417300620

$73.99

330

Front Retaining Hook

417300525

$10.49

340

Avex Rivet

390909200

$0.30

360

CVT Cooling Duct

417300609

$26.99

370

Pop Rivet 3/16"

293150103

$0.55

450

Front Guard Support

417300583

$14.49

480

Flange Screw M6 X 10, Scotch Grip

207561044

$7.19

500

Rear Guard Support

417300633

$13.99

505

Hex. Flange Elastic Nut M6

233261466

$2.00

510

Torx Screw M6 X 16

250000755

$0.87

520

Hair Pin

114045200

$11.11
