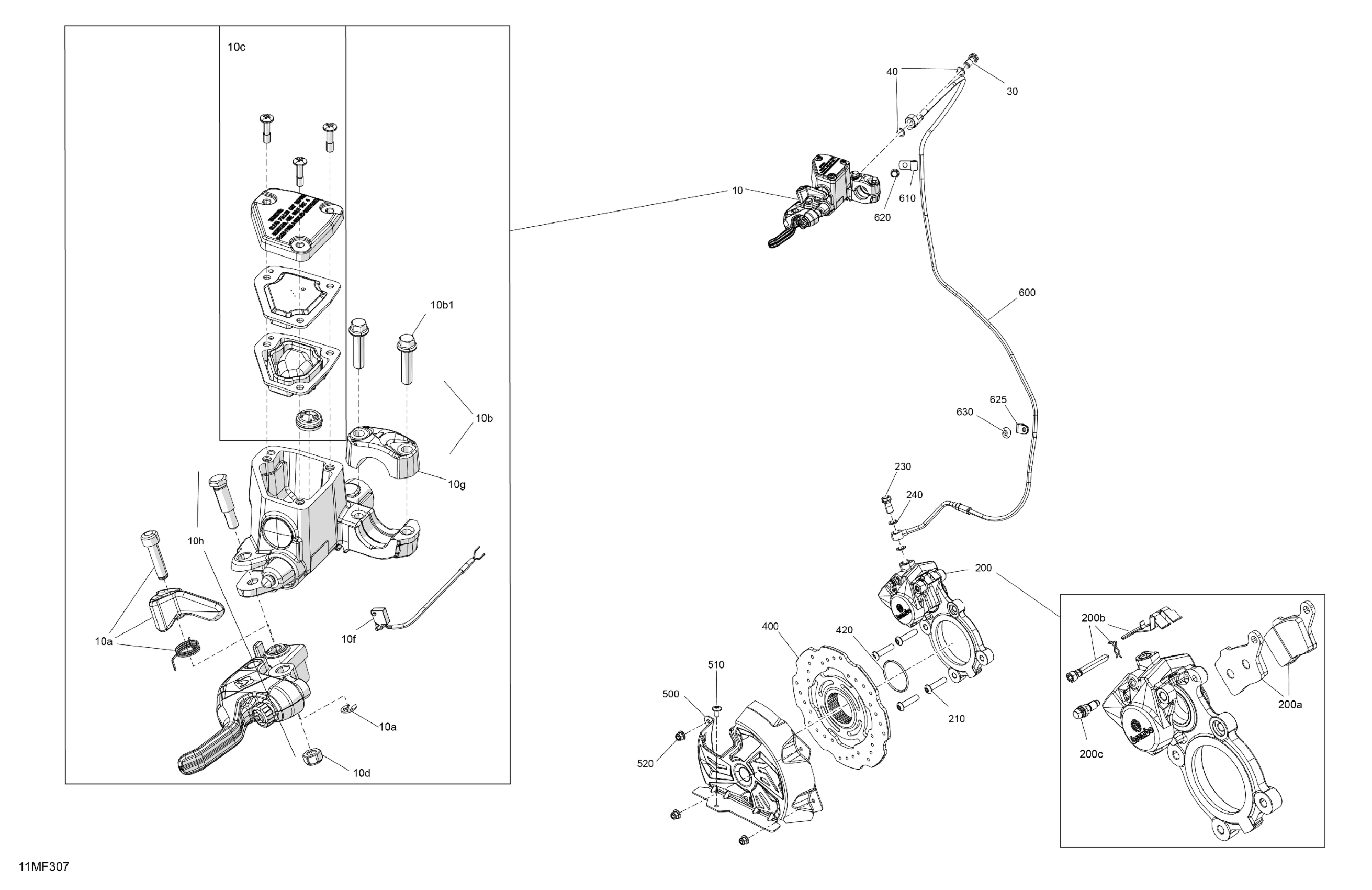

Ski-Doo GRAND TOURING - SPORT - 600 ACE - ETTA - Neo Yellow - 15X137X1.25ST3 Track, 2026 Mechanic - Brakes Diagram

Description

Price

Brake Master Cylinder | Includes 10 to 10h

507032689

$302.96

10a

Parking Brake Lever

507032739

$95.49

10b

Mounting Clamp | Includes 10b to 10b1

507032736

$23.10

10b1

Hex Flange Screw M6 X 25

229000652

$2.00

10c

Reservoir Cover Kit

507032737

$106.69

10d

Nut

507032743

$9.58

10f

Micro Switch

507032738

$68.63

10g

Mounting Clamp

507032761

$23.10

10h

Pin Ass'y

415030000

$17.13

Banjo Bolt

507032551

$5.22

Washer

414920600

$1.75

200

Brake Caliper | Includes 200 to 200c

507032720

$323.10

200a

Brake Pads Kit

507032473

$49.22

200b

Brake Spring Kit

507032722

$35.79

200c

Bleeder

507032475

$17.13

210

Hex. Button Head Screw M8 X 1.25 X 35

250000764

$1.91

230

Banjo Bolt

507032551

$5.22

240

Washer

414920600

$1.75

400

Disc

507032487

$172.36

420

O Ring

293300221

$1.54

500

Deep Black, Brake Disc Guard

507032769

$44.00

510

Torx Head Screw M6 X 16

250000717

$2.00

520

Hex. Flange Elastic Nut M6

233261466

$1.91

600

Brake Hose

507032654

$57.43

610

Open Clamp

414108400

$3.01

620

Hex. Flange Screw M6 X 10

210261040

$1.43

625

Hose Clamp

293650257

$5.00

630

Blind Rivet 3/16

293150231

$0.30
