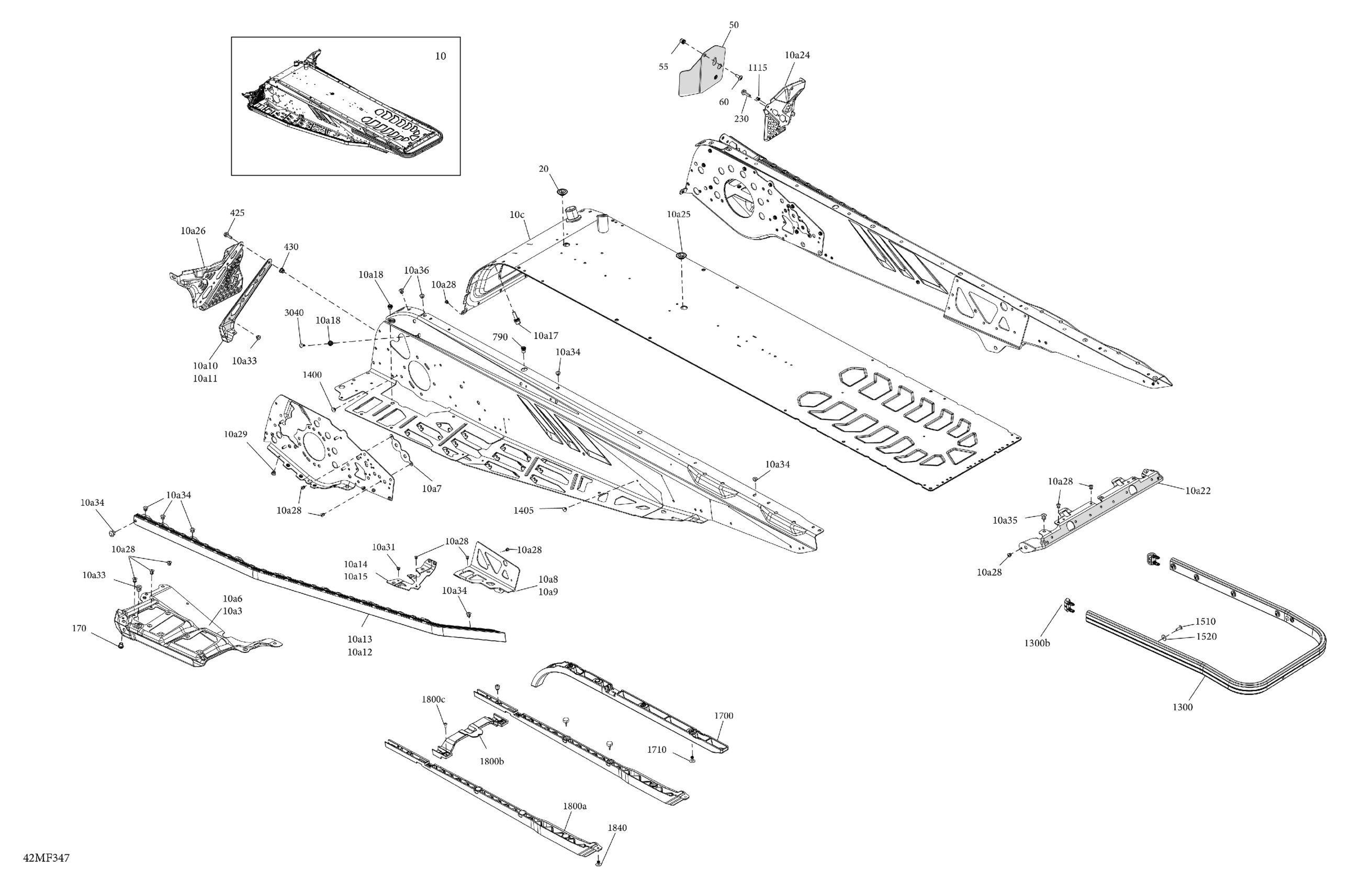

Ski-Doo North America - GRAND TOURING - LE with Luxury Package - 900 ACE - EBTB - Mineral Blue - 15X137X1.25ST3IR Track, 2026 06- Frame - System - Rear Section Diagram

#

Description
Price

10

Deep Black, Chassis Tunnel Module 137

415130843

$3.00

10a3

Deep Black, RH Footrest Reinforcement

518330738

$88.99

10a6

Deep Black, LH Footrest Reinforcement

518331523

$88.99

10a7

Front Suspension Arm Reinforcement

518327233

$4.69

10a8

RH Suspension Bracket

518329627

$79.99

10a9

LH Suspension Bracket

518329628

$79.99

10a10

Stirrup Reinforcement

518334507

$21.99

10a11

Deep Black, LH Chassis Reinforcement

518332924

$21.99

10a12

RH Roller

518329648

$194.99

10a13

LH Roller

518328452

$194.99

10a14

LH Footrest Reinforcement

518332296

$21.99

10a15

RH Footrest Reinforcement

518332297

$21.99

10a17

Protruding Stud M8 x 22

250300652

$4.44

10a18

Insert Half Hex Body M6 x 1.0

250100199

$3.19

10a22

Rear Cap

518328990

$22.49

10a24

RH Footrest

518334509

$22.49

10a25

Black, Plug

293730052

$9.19

10a26

LH Foot Protector

518334305

$23.99

10a28

Rivet Avibulb 3/16

293150203

$2.09

10a29

Avibulb Rivet 4.8 X 12.1

293150237

$2.09

10a31

Henrob Rivet

293150245

$1.69

10a33

Rivet Ornit 6,5 X 10.5

293150264

$2.40

10a34

Rivet Ornit 6,5 X 12.5

293150265

$2.40

10a35

Rivet Ornit 6,5 X 16.5

293150267

$2.40

10a36

Ornit Rivet 6,5 X 14.5

293150266

$2.40

10c

Radiator Tunnel 137

518335125

$720.49

20

Black, Plug

293730052

$9.19

50

Heat Shield

518331823

$10.49

55

Insert

293450275

$12.99

60

Torx Head Screw M6 X 16

250000717

$2.11

170

Insert M5 - 0.8

293450267

$4.59

230

Hex. Flange Screw M6 X 20

207562056

$2.11

425

Hex. Flange Screw M6 X 20

207562056

$2.11

430

Elastic Flange Nut M6 X 1.0

233261416

$2.11

790

Insert

293450278

$4.49

1115

Insert

293450275

$12.99

1300

Black, 137 Hitch Bumper | Includes 1300 to 1300b

518330197

$116.99

1300b

Bumper Cap

520001629

$0.98

1400

Black, Dart 8 mm

293730047

$2.21

1405

Black, Dart 10 mm

293730060

$4.55

1700

Front Protector

518329982

$18.49

1710

Black, Ornit Rivet 3/16 X ,675

293150308

$1.26

1800a

Rear Protector

518329979

$9.23

1800b

Central Protective Structure

518333936

$3.69

1800c

Torx Truss Screw K40 X 12

250000577

$2.11

1840

Black, Ornit Rivet 3/16 X ,675

293150308

$1.26

3040

Dart

293730079

$2.09

1510

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

1520

Flat Washer

224061201

$1.37
