Partiron

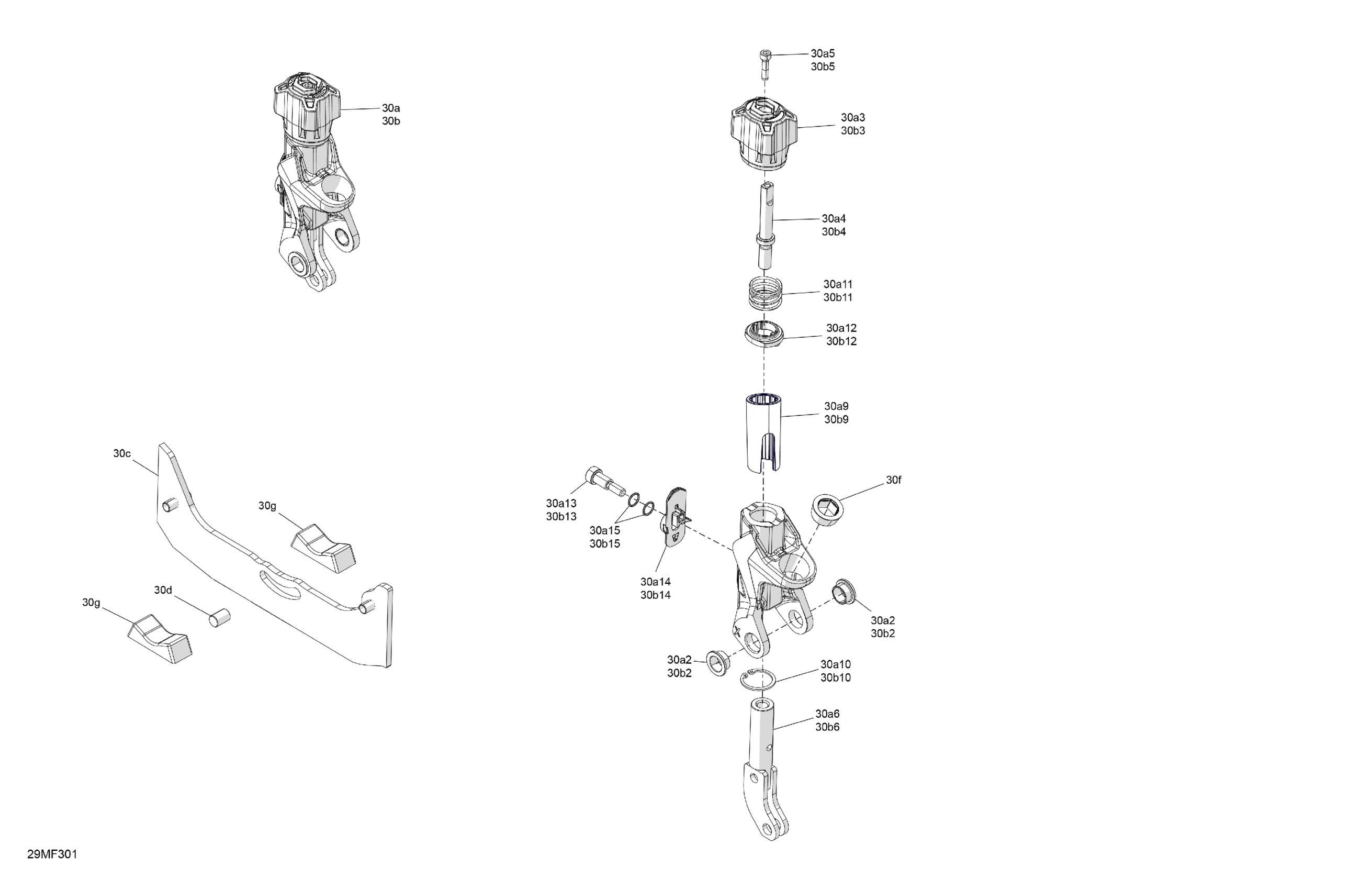

Ski-Doo GRAND TOURING - LE with Luxury Package - 900 ACE - EBTB - Mineral Blue - 15X137X1.25ST3IR Track, 2026 Suspension - Front Runner Mechanism Diagram

#

Description
Price

30a

Mecanism | Includes 30a to 30a15

505075081

$352.28

30a2

Bushing

505073773

$23.82

30a3

Knob Adjuster Repair Kit

415130043

$53.05

30a4

Shaft

505073771

$40.74

30a5

Socket Head Screw M6 X 25

250000925

$1.70

30a6

Tip

505073761

$72.28

30a9

Knob Adjuster Repair Kit

415130043

$53.05

30a10

Circlip

293370109

$1.86

30a11

Spring

505073785

$8.68

30a12

Knob Adjuster Repair Kit

415130043

$53.05

30a13

Screw

505073767

$3.25

30a14

Knob Adjuster Repair Kit

415130043

$53.05

30a15

O-Ring

293300013

$5.69

30b

Mecanism | Includes 30b to 30b15

505075082

$349.20

30b2

Bushing

505073773

$23.82

30b3

Knob Adjuster Repair Kit

415130043

$53.05

30b4

Shaft

505073771

$40.74

30b5

Socket Head Screw M6 X 25

250000925

$1.70

30b6

Tip

505073761

$72.28

30b9

Knob Adjuster Repair Kit

415130043

$53.05

30b10

Circlip

293370109

$1.86

30b11

Spring

505073785

$8.68

30b12

Knob Adjuster Repair Kit

415130043

$53.05

30b13

Screw

505073767

$3.25

30b14

Knob Adjuster Repair Kit

415130043

$53.05

30b15

O-Ring

293300013

$5.69

30c

Runner

860202192

$234.58

30d

Pin

505073782

$8.92

30f

Black, Rubber Grommet

505073772

$8.97

30g

Ski Stopper

505073788

$12.62
