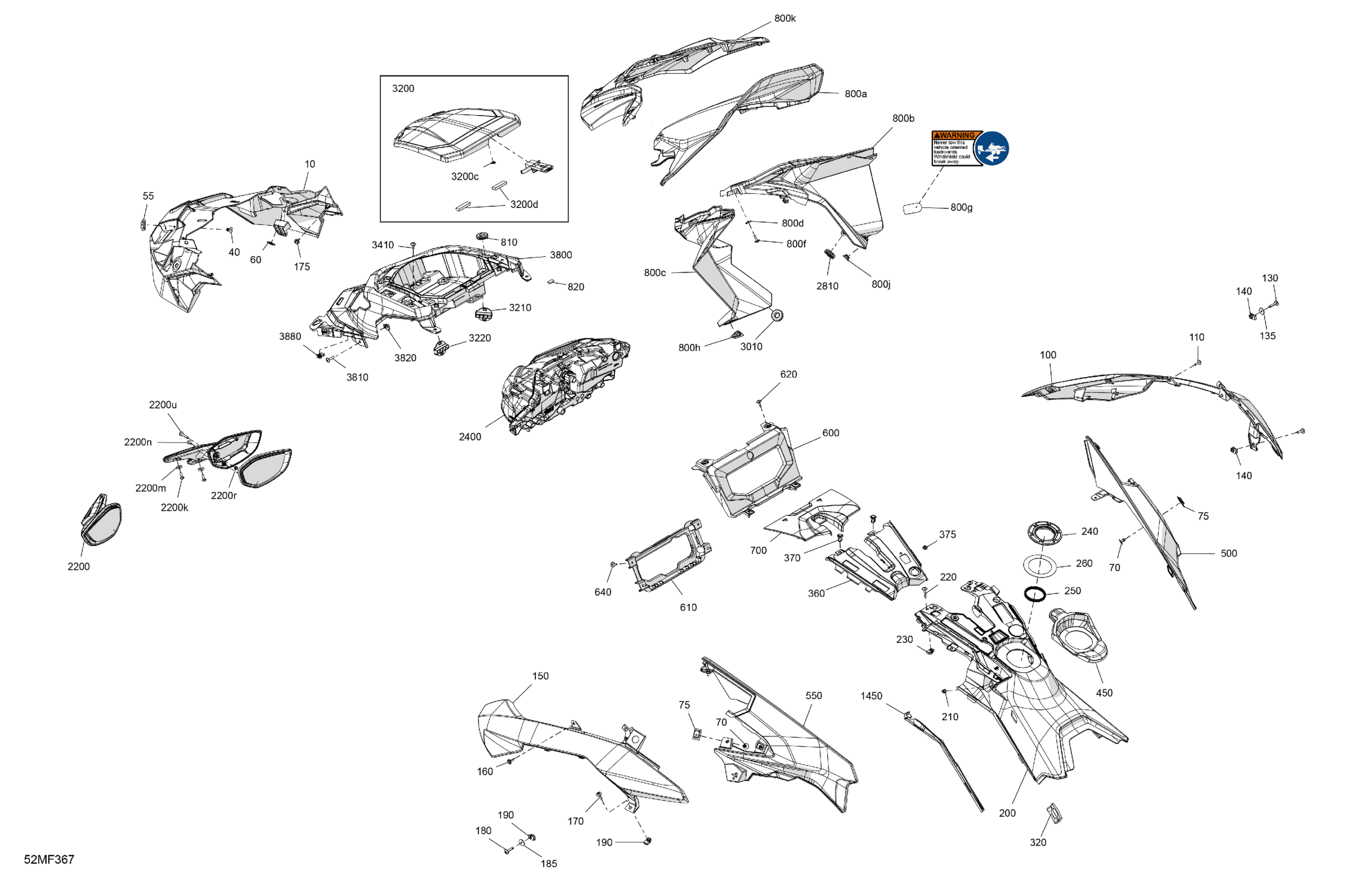

Ski-Doo GRAND TOURING - LE - 900 ACE TURBO - ERTA - Deep Black - 15X137X1.25ST3 Track, 2026 Body - Hood Diagram

#

Description
Price

10

Center Hood

517307755

$198.43

40

Black, Pop Rivet 3/16 X ,550

293150292

$0.86

55

Rivet Plate

517305109

$4.66

60

Push Nut

508000853

$1.92

70

Black, Pop Rivet 3/16 X ,550

293150292

$0.86

75

Rivet Plate

517305109

$4.66

100

RH Front Hood

517307746

$197.66

110

Screw M4 X 16

250000725

$2.87

130

Torx Screw M5 X 26

250000587

$3.61

135

Washer

517307442

$1.48

140

Panel Nut M5 X 0.8

250000958

$3.48

150

LH Front Hood

517307747

$197.66

160

Screw M4 X 16

250000725

$2.87

170

Torx Screw M5 X 20

250000528

$1.74

175

Screw M4 X 16

250000725

$2.87

180

Torx Screw M5 X 26

250000587

$3.61

185

Washer

517307442

$1.48

190

Panel Nut M5 X 0.8

250000958

$3.48

200

Rear Console

517308760

$167.66

210

Hex. Flange Elastic Nut M5

233251414

$1.66

220

Torx Screw M5 X 26

250000587

$3.61

230

Panel Nut M5 X 0.8

250000958

$3.48

240

Round Slotted Nut

517309507

$11.22

250

Gasket

517309450

$0.98

260

Joint

517309451

$2.37

320

Self Adhesive Weather Strip

517308930

$2.28

360

Front Console

517309794

$29.97

370

Tuflok Plastic Rivet

293150230

$1.21

375

Push Nut

732610072

$1.72

450

Rear Short Console

517309348

$146.12

500

RH Hood

517308227

$192.28

550

LH Hood

517308228

$192.28

600

Gauge Support

517307750

$36.89

610

Gauge Support

515179034

$5.17

620

Screw M4 X 16

250000889

$2.46

640

Screw M4 X 16

250000725

$2.87

700

Access Cover

517308427

$8.45

800a

Windshield 600 Mm

517309564

$124.58

800b

RH Wide Air Deflector

517308791

$34.58

800c

LH Wide Air Deflector

517308792

$34.58

800d

Rubber Washer 4 MM

517306524

$2.25

800f

Screw M4 X 16

250000889

$2.46

800g

Winshield Warning Label

516013311

Unavailable

800h

RH Stopper

517308989

$7.58

800j

LH Stopper

517308990

$7.58

800k

Windshield Support Long

517309565

$44.99

810

Grommet

517303756

$3.15

820

Foam_Support

517309970

$3.80

1450

Molded Gasket

517308963

$5.17

2200

Rear-View Mirror Kit | Includes 2200 to 2200u

517309198

$113.82

2200k

Torx Screw M5 X 14

250000742

$1.20

2200m

Rubber Washer 5 mm

250200024

$1.77

2200n

Torx Truss Screw K40 X 12

250000577

$1.74

2200r

Elastic Stop Nut M5

232551414

$0.72

2200u

Torx Screw Nylon

250000732

$1.74

2400

Headlight Ass'y

517309060

$526.89

2810

Grommet

517303756

$3.15

3010

Grommet

517303756

$3.15

3200

Box Cover Ass'y | Includes 3200 to 3200d

517307754

$29.20

3200c

Push Nut

732610072

$1.72

3200d

Joint Seal

517308246

$2.28

3210

Box Cap

517308260

$11.31

3220

Box Cap

517308260

$11.31

3410

Screw M4 X 16

250000889

$2.46

3800

Upper Fairing

517308231

$59.97

3810

Torx Screw M5 X 20

250000528

$1.74

3820

Panel Nut M5 X 0.8

250000958

$3.48

3880

Panel Nut M5 X 0.8

250000958

$3.48
