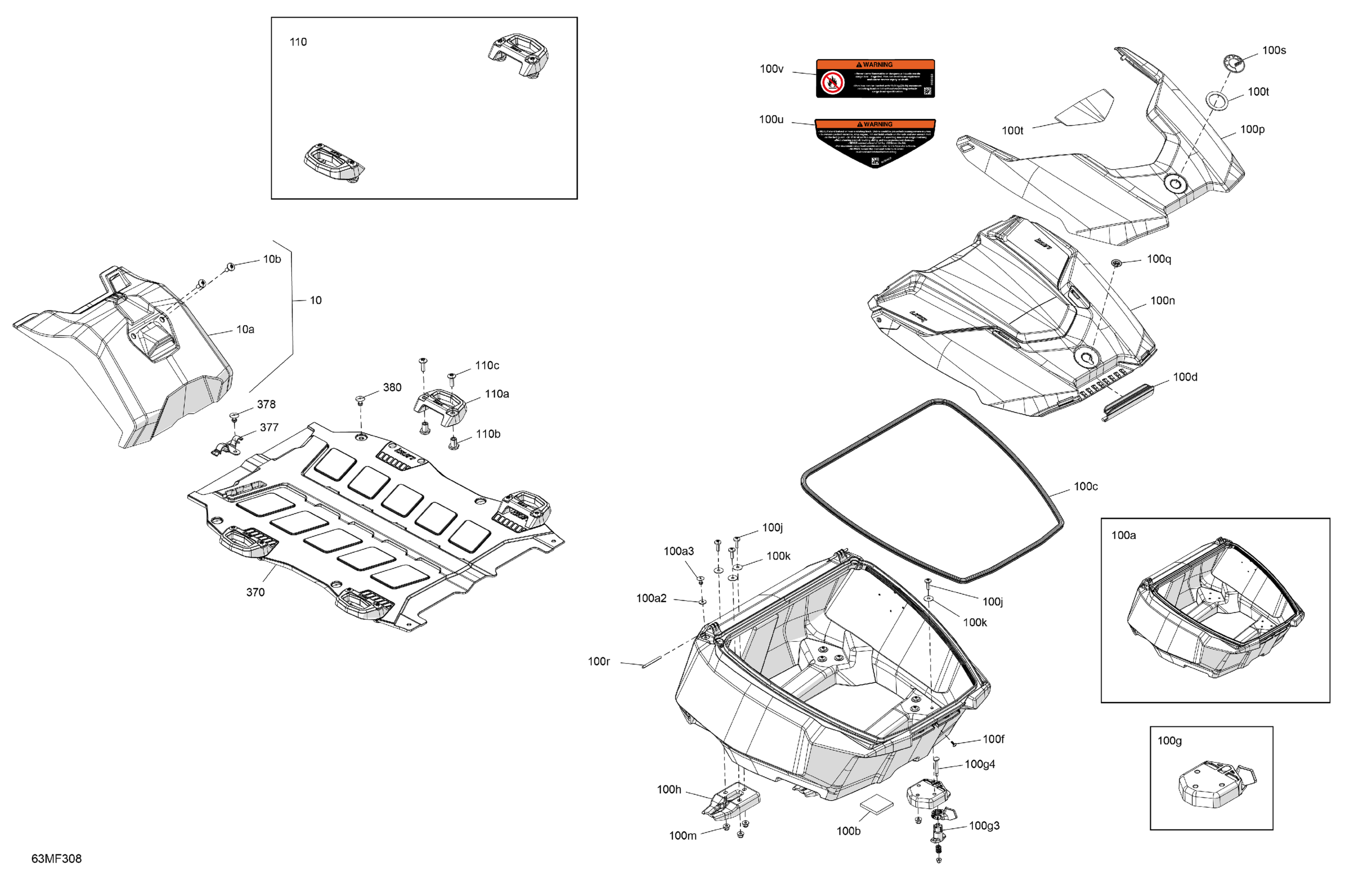

Ski-Doo North America - GRAND TOURING - LE - 900 ACE - EBTA - Deep Black - 15X137X1.25ST3 Track, 2026 07- Body - Cargo Diagram

Description

Price

Battery Cover Kit | Includes 10 to 10b

511001432

$39.99

10a

Battery Cover

511001210

$30.99

10b

Torx Screw M6 X 16

250001005

$0.53

100a

Storage Box Ass'y | Includes 100a to 100a3

511001340

$139.99

100a2

Washer

517124300

$0.19

100a3

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

100b

Self Adhesive Protective Foam

511001275

$0.72

100c

Seal, 1PC = 3M

293830188

$39.99

100d

Clip | Outlander Max

269501945

$15.89

100f

Torx-Truss Screw K40 X 10

250001034

$0.98

100g

RH Low Profile LINK Fasterner | Includes 100g to 100g4

511001827

$42.49

100g3

RH Latch

708200772

$7.94

100g4

Rod

511001584

$19.49

100h

Linq Toe In

511001164

$23.49

100j

Torx Screw M6 X 20

250000712

$2.11

100k

Flat Washer

250200040

$1.90

100m

Hex. Flange Elastic Nut M6

233261466

$2.00

100n

Storage Lid

511001150

$60.99

100p

Deep Black, Storage Box Trim

511001208

$119.99

100q

Self Threading Nut 8MM

250100213

$3.80

100r

Hinge Pin

511001211

$14.68

100s

BRP Logo Emblem 48 MM UV

704909040

$16.49

100t

Self Adhesive Weather Strip

511001392

$0.70

100u

Warning Label

516009527

Unavailable

100v

Warning Label

516009528

Unavailable

110

Luggage Rack Base With Hardware | Includes 5200 to 5200c

860201806

$42.49

110a

Not Available As Spare Parts

XXX

Unavailable

110b

Threaded Insert

511000822

$2.09

110c

Torx Screw M6 X 20, Scotch Grip

250000446

$4.44

370

Radiator Trim

511001781

$34.99

377

Cap

520001722

$11.49

378

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

380

Black, Pop Rivet 3/16 X ,550

293150292

$1.05
