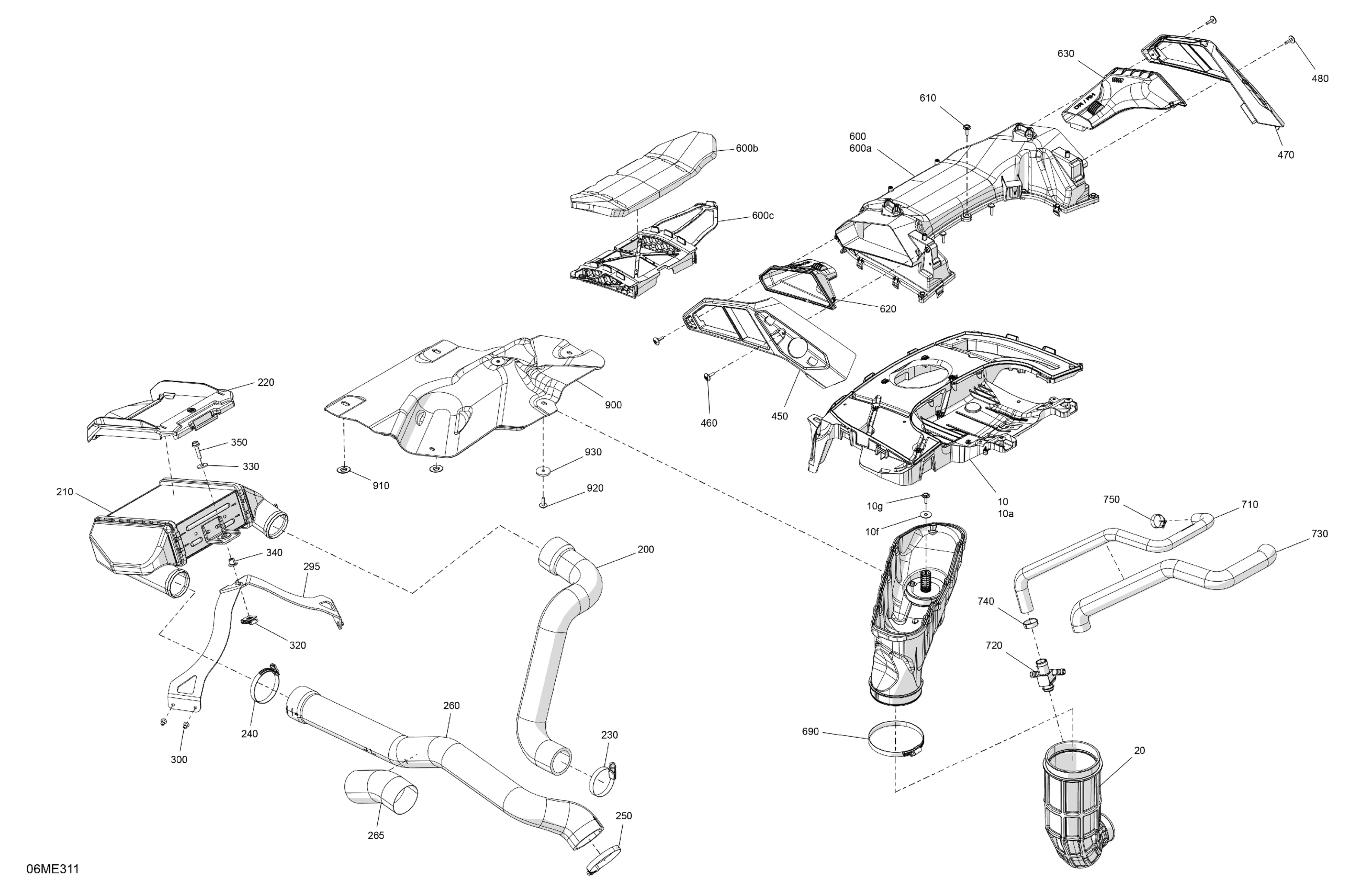

Ski-Doo North America - GRAND TOURING - 900 ACE TURBO R - LE - EPSB - Deep Black - 137X15X1.25ST3 Track - 2025 02- Engine - Air Intake Diagram

Description

Price

Molded Multipurpose Plate Ass'y | Includes 10 to 10g

508001262

$179.99

10a

Multi Purpose Plate

508001178

$42.99

10f

Flat Washer

224060201

$1.26

10g

Screw M4 X 16

250000725

$3.49

Intake Silencer

508001297

$54.99

200

Inlet Hose

508000856

$76.99

210

Intercooler

508001317

$404.49

220

Adapter

508001241

$22.99

230

Mounting Clamp

293650303

$3.59

240

Mounting Clamp

293650302

$3.72

250

Mounting Clamp

293650302

$3.72

260

Inlet Hose

508001010

$91.99

265

Protector Tube

508001033

$13.49

295

Rear Support

508001234

$38.99

300

Avex Rivet

390909100

$0.30

320

Panel Nut M6 X 1.0

250100208

$1.46

330

Flat Washer

250200082

$0.42

340

Bushing

293900151

$7.66

350

Hex. Flange Screw M6 X 25

207562544

$1.69

450

LH Air Filter

508001136

$33.99

460

Screw M4 X 16

250000889

$3.09

470

RH Air Filter

508001137

$42.49

480

Screw M4 X 16

250000889

$3.09

600

Upper Intake Silencer Duct Ass'y | Includes 600 to 600c

508001300

$64.99

600a

Upper Intake Silencer Duct

508001289

$49.99

600b

Acoustic Insulation

508001224

$15.27

600c

Foam Support

508001222

$36.99

610

Screw M4 X 16

250000725

$3.49

620

LH Upper Resonator

508001199

$14.49

630

RH Resonator

508001200

$14.49

690

Norma Clamp

514052924

$14.22

710

Vent Hose

508000862

$16.49

720

Molded Breather

508001278

$27.99

730

Insulating Tube

508000907

$16.49

740

Oeticker Gear Clamp, 25.6-706R

509000442

$5.19

750

Clamp Gear

293650285

$3.27

900

Acoustic Panel

508001263

$45.99

910

Push Nut

508000853

$2.09

920

Screw M4 X 16

250000725

$3.49

930

Thermal Insulation

508001264

$1.99
