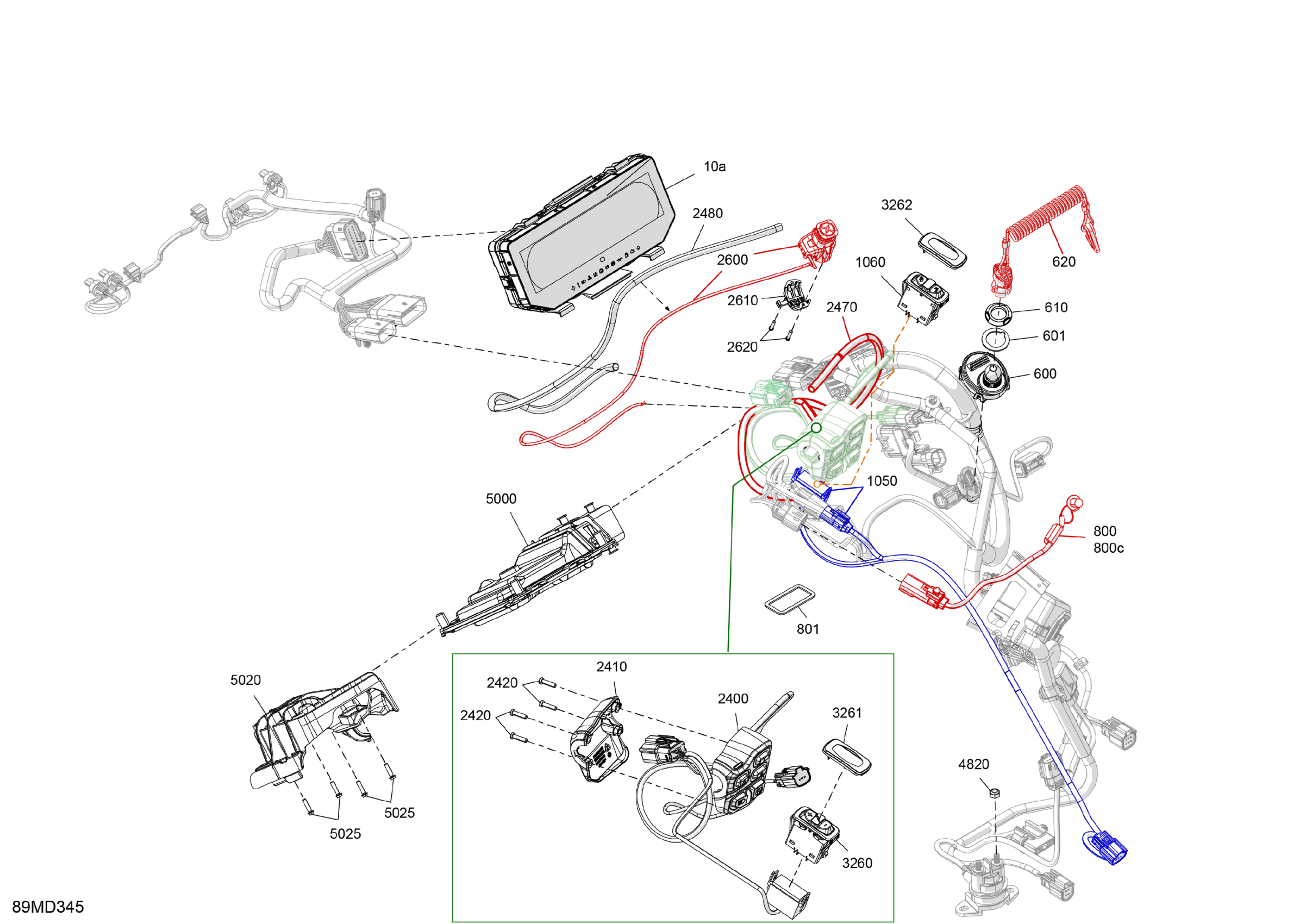

Ski-Doo GRAND TOURING 900 ACE Turbo R - LE - EPRA - Deep Black - 137X15X1.25ST3 Track, 2024 Electric - Upper Section Diagram

Description

Price

10a

Multifunction Gauge Full Size Mono

515178227

$509.67

600

Terminal DESS CAN | CARB Vehicle

710008832

$69.37

601

Self Adhesive Weather Strip

513034206

$11.60

610

Specialized Nut

278004274

$3.12

620

Grey, Ski-Doo DESS Key

515179475

$62.66

800

Heated Visor Wiring Harness Ass'y | Includes 800 to 800c

515179484

$24.60

800c

Cap

572103300

$9.36

801

Self Adhesive Weather Strip

513034207

$11.66

1050

Seat Wiring Harness

515178608

$35.04

1060

Heated Seat Switch

515179491

$18.63

2400

LH Front Multifunction Switch

515179435

$258.93

2410

Switch Cover

515179437

$11.61

2420

Torx Screw

250000671

$0.96

2470

Braided Sleeve

415130141

$54.45

2480

Braided Sleeve

415130141

$54.45

2600

Emergency Stop Switch

515179472

$74.60

2610

Clamp

515179182

$8.34

2620

Screw PT. Socket T10 K30 X 16

250001201

$3.10

3260

Suspension Switch

515179214

$23.85

3261

Boot

515179778

$8.10

3262

Boot

515179778

$8.10

4820

Elastic Stop Nut M6

232561434

$1.78

5000

Vehicle Control Unit

420464172

$611.16

5020

Module Support

512061397

$14.10

5025

Hex. Flange Screw K40 X 16

241141660

$1.43
