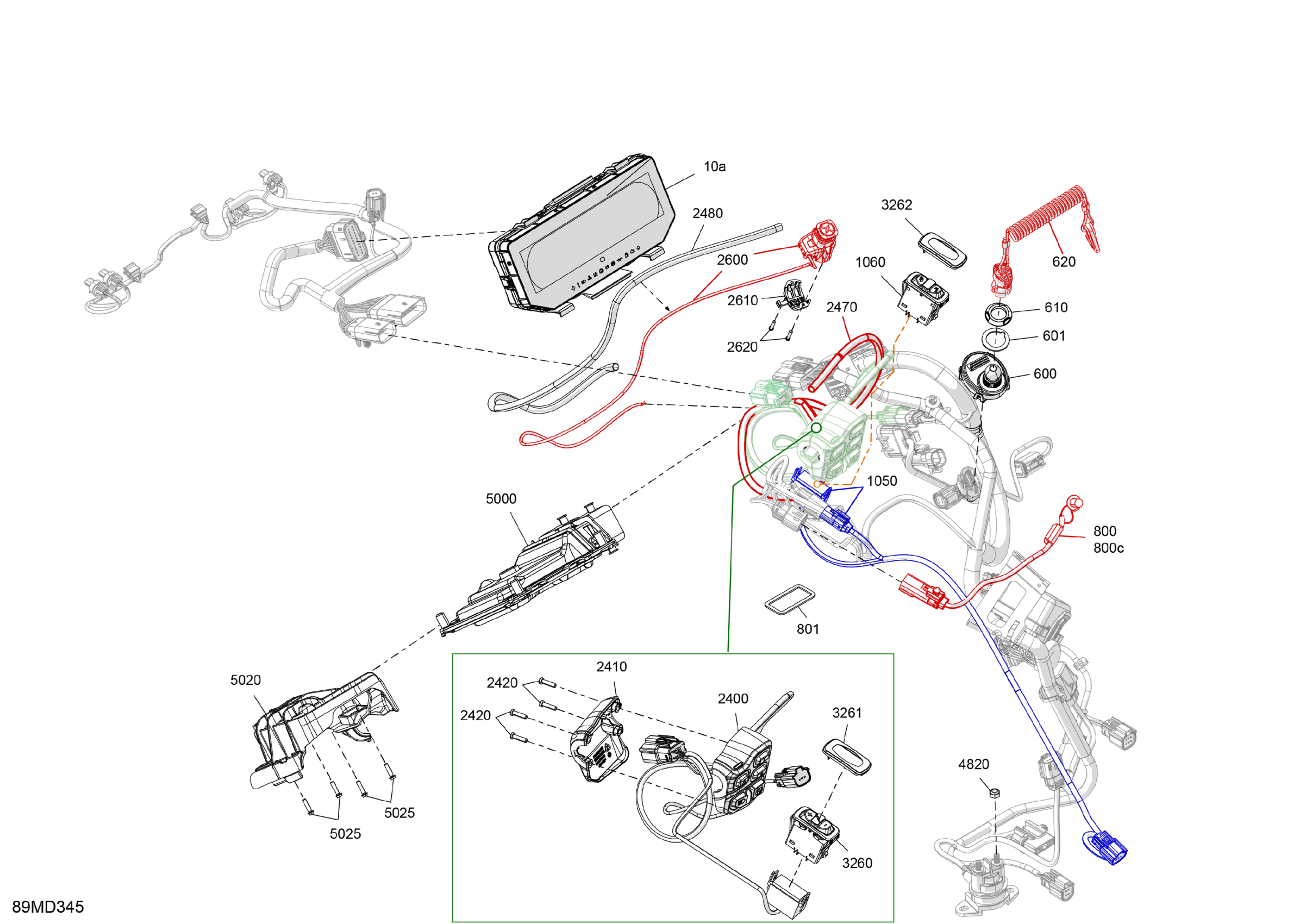

Ski-Doo GRAND TOURING 900 ACE Turbo R - LE - EPRA - Deep Black - 137X15X1.25ST3 Track, 2024 Electric - Upper Section Diagram

Description

Price

10a

Multifunction Gauge Full Size Mono

515178227

$559.99

600

Terminal DESS CAN | CARB Vehicle

710008832

$72.99

601

Self Adhesive Weather Strip

513034206

$13.99

610

Specialized Nut

278004274

$3.28

620

Grey, Ski-Doo DESS Key

515179475

$84.99

800

Heated Visor Wiring Harness Ass'y | Includes 800 to 800c

515179484

$26.99

800c

Cap

572103300

$10.49

801

Self Adhesive Weather Strip

513034207

$13.99

1050

Seat Wiring Harness

515178608

$38.99

1060

Heated Seat Switch

515179491

$20.49

2400

LH Front Multifunction Switch

515179435

$284.99

2410

Switch Cover

515179437

$13.68

2420

Torx Screw

250000671

$1.01

2470

Braided Sleeve

415130141

$55.99

2480

Braided Sleeve

415130141

$55.99

2600

Emergency Stop Switch

515179472

$78.49

2610

Clamp

515179182

$9.19

2620

Screw PT. Socket T10 K30 X 16

250001201

$3.39

3260

Suspension Switch

515179214

$24.99

3261

Boot

515179778

$8.57

3262

Boot

515179778

$8.57

4820

Elastic Stop Nut M6

232561434

$1.99

5000

Vehicle Control Unit

420464172

$629.99

5020

Module Support

512061397

$16.33

5025

Hex. Flange Screw K40 X 16

241141660

$1.48
