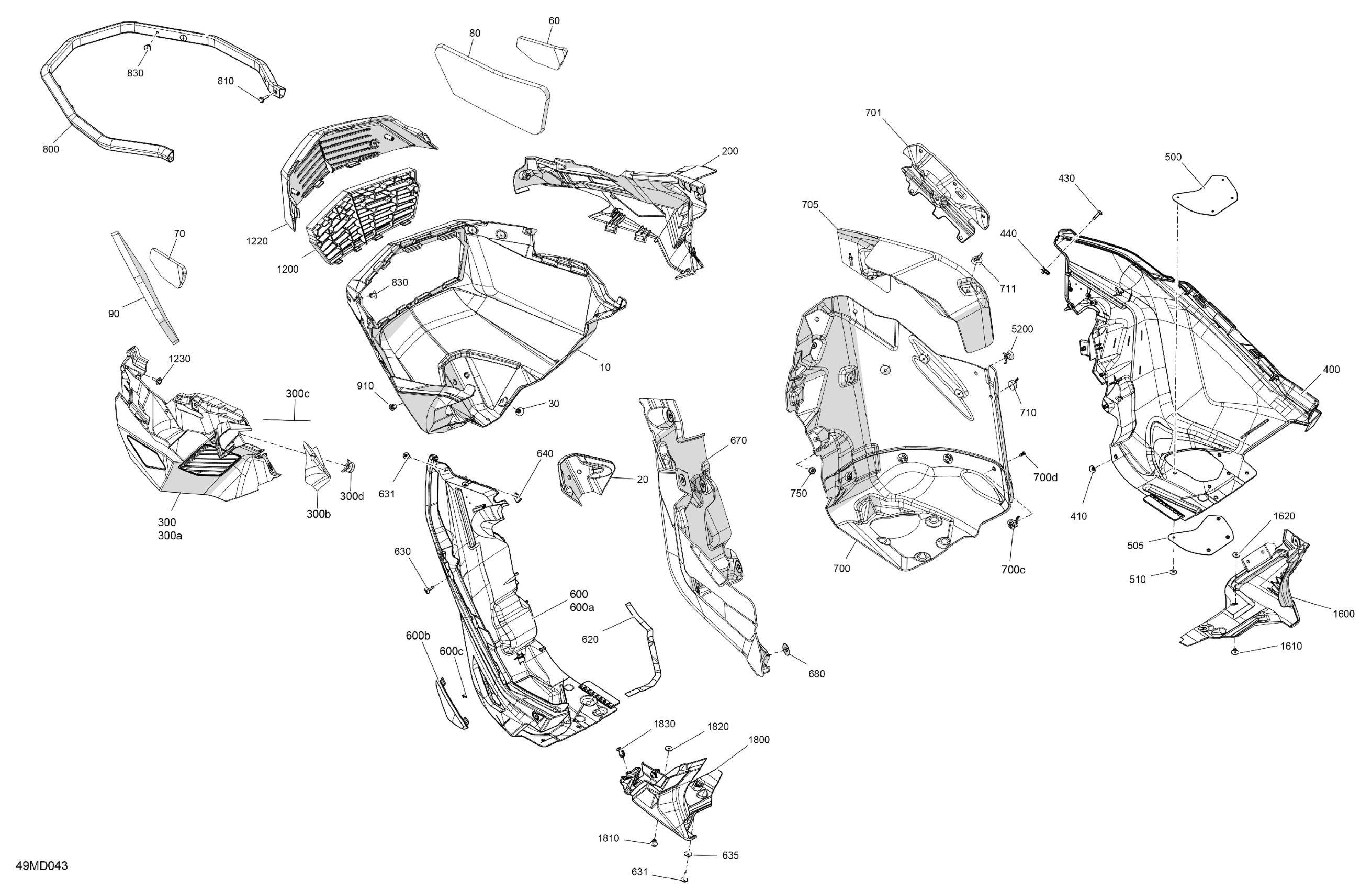

Ski-Doo North America - GRAND TOURING 900 ACE Turbo - LE with Luxury Package - ERRB - Tundra Green - 137X15X1.25ST3IR Track, 2024 07- Body - Bottom Pan Diagram

Description

Price

Deep Black, Front Bottom Pan

502008525

$194.99

Skid Plate

502008466

$7.76

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

RH Front Central Bottom Pan Foam

502008308

$9.59

LH Front Central Bottom Pan Foam

502008309

$13.99

Bonded Foam

502008355

$19.49

Bonded Foam

502008356

$7.89

200

Deep Black, RH Bottom Pan Cap

502008264

$61.99

300

Deep Black, LH Bottom Pan Cap Ass'y | Includes 300 to 300d

502008529

$124.99

300a

Deep Black, LH Bottom Pan Cap

502008265

$61.99

300b

LH Front Heat Shield

502008487

$4.79

300c

LH Front Heat Shield

502008575

$4.39

300d

Stopper

502008610

$2.09

400

Deep Black, RH Bottom Pan

502008663

$139.99

410

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

430

Torx Truss M5 X 20

250000586

$4.44

440

Panel Nut M5 X 0.8

250000958

$4.23

500

Plate

502007868

$2.19

505

Plate

502007868

$2.19

510

Black, Pop Rivet 3/16 X ,425

293150291

$0.56

600

Deep Black, LH Bottom Pan Ass'y | Includes 600 to 600c

502008507

$134.99

600a

Deep Black, LH Bottom Pan

502008512

$99.99

600b

Bottom Pan Door

502007676

$38.99

600c

Hairpin Cotter

269800431

$1.29

620

Gasket, Neoprene 2000Mm Long

219704476

$15.36

630

Screw Torx M5 X 20

250001232

$1.37

631

Torx Truss M5 X 20

250000586

$4.44

635

Washer M5

250200025

$0.74

640

Panel Nut M5 X 0.8

250000958

$4.23

670

LH Lower Acoustic Panel

502008508

$45.99

680

Push Nut

508000853

$2.09

700

Rear Lower Acoustic Panel Ass'y | Includes 700 to 700d

502008699

$119.99

700c

Stopper

502008753

$1.99

700d

Dart

293730062

$2.09

701

Heat Shield

502008087

$7.09

705

Acoustic Panel

502008698

$45.99

710

Stopper

502008610

$2.09

711

Stopper

502008610

$2.09

750

Oval Head Torx Screw K60 X 16

250000546

$2.11

800

Platnum Silver, Front Bumper

502008395

$81.99

810

Hex. Flange Screw M5 X 20, Scotch Grip

207552044

$5.19

830

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

910

Torx Screw M6 X 25

250000758

$2.11

1200

Lower Prefilter Grille

502007979

$26.99

1220

Upper Grille Prefilter

502008736

$27.99

1230

Screw M4 X 16

250000725

$3.49

1600

RH Panel

502007714

$53.99

1610

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

1620

Washer

517124300

$0.19

1800

LH Panel

502007872

$56.99

1810

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

1820

Washer

517124300

$0.19

1830

Tuflok Plastic Rivet

293150230

$1.47

5200

Stopper

502008753

$1.99
