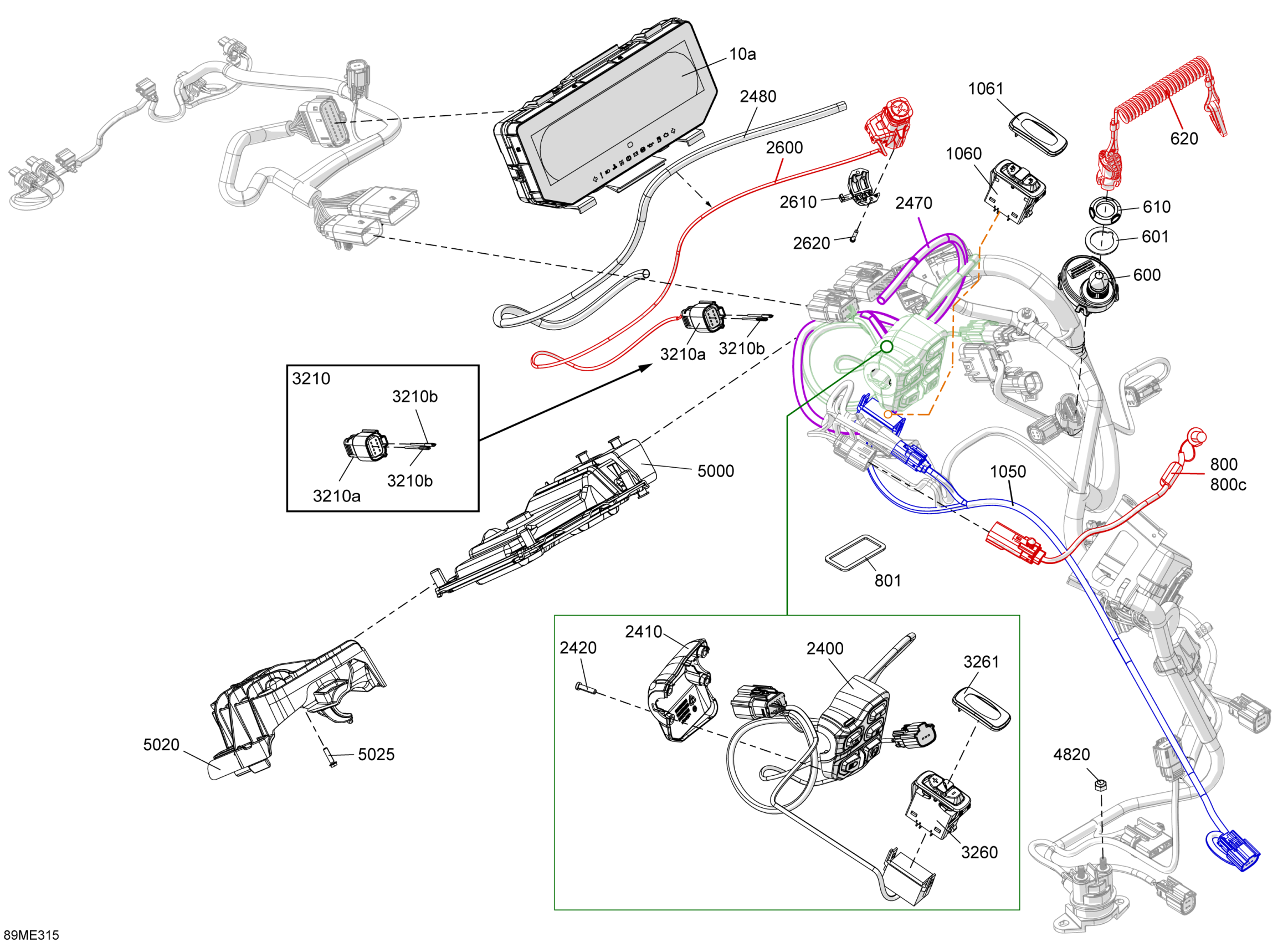

Ski-Doo GRAND TOURING - 900 ACE TURBO - LE - ERSB - Deep Black - 137X15X1.25ST3 Track - 2025 Electric - Upper Section Diagram

Description

Price

10a

Multifunction Full Size Mono Gauge

515179828

$559.99

600

Terminal DESS CAN | CARB Vehicle

710008832

$72.99

601

Self Adhesive Weather Strip

513034206

$13.99

610

Specialized Nut

278004274

$3.28

620

Grey, RF Key Ass'y | Includes 620 to 620d

515178286

$84.99

800

Heated Visor Wiring Harness Ass'y | Includes 800 to 800c

515179484

$26.99

800c

Cap

572103300

$10.49

801

Self Adhesive Weather Strip

513034207

$13.99

1050

Seat Wiring Harness

515178608

$38.99

1060

Heated Seat Switch

515179491

$20.49

1061

Boot

515179778

$8.57

2400

LH Front Multifunction Switch

515179678

$284.99

2410

Switch Cover

515179437

$13.68

2420

Torx Screw

250000671

$1.01

2470

Braided Sleeve

415130141

$55.99

2480

Braided Sleeve

415130141

$55.99

2600

Emergency Stop Switch

515179472

$78.49

2610

Clamp

515179182

$9.19

2620

Screw PT. Socket T10 K30 X 16

250001201

$3.39

3210

Connector Plug | Includes 3210 to 3210b

515179276

$14.28

3210a

Connector Molex Female 8 Cavities

515179228

$48.49

3210b

Sealing Cap

278002860

$1.79

3260

Suspension Switch

515179214

$24.99

3261

Boot

515179778

$8.57

4820

Elastic Stop Nut M6

232561434

$1.99

5000

Vehicle Control Unit

420464172

$629.99

5020

Module Support

512061397

$16.33

5025

Hex. Flange Screw K40 X 16

241141660

$1.48
