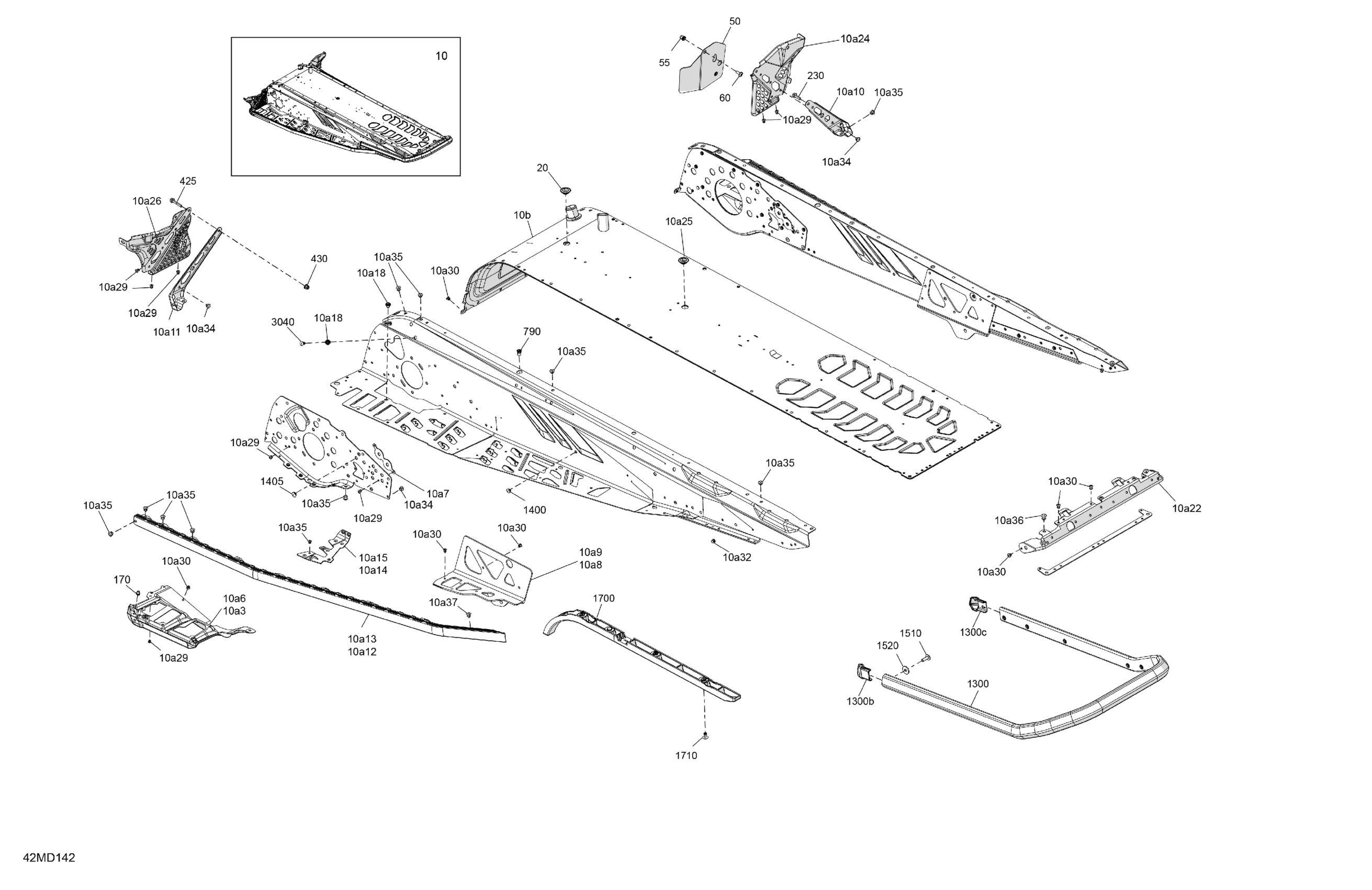

Ski-Doo GRAND TOURING 900 ACE - SPORT - EARA - Neo Yellow - 137X15X1.25ST3 Track, 2024 Frame - System - Rear Section Diagram

Description

Price

Chassis Tunnel Module 137 | Includes 10 to 10b

415130681

$3.00

10a3

Deep Black, RH Footrest Reinforcement

518330738

$88.99

10a6

Deep Black, LH Footrest Reinforcement

518331523

$88.99

10a7

Front Suspension Arm Reinforcement

518327233

$4.69

10a8

RH Rear Suspension Support

518334403

$82.99

10a9

LH Rear Suspension Support

518334402

$82.99

10a10

Stirrup Reinforcement

518334507

$21.99

10a11

Deep Black, LH Chassis Reinforcement

518332924

$21.99

10a12

RH Roller

518328451

$194.99

10a13

LH Roller

518328452

$194.99

10a14

LH Footrest Reinforcement

518332296

$21.99

10a15

RH Footrest Reinforcement

518332297

$21.99

10a18

Threaded Insert M6 X 1.0

250100242

Unavailable

10a22

Rear Cap

518328990

$22.49

10a24

RH Footrest

518334509

$22.49

10a25

Black, Plug

293730052

$9.19

10a26

LH Foot Protector

518334305

$23.99

10a29

Rivet Avibulb 3/16

293150203

$2.09

10a30

Avibulb Rivet 4.8 X 12.1

293150237

$2.09

10a32

Henrob Rivet

293150245

$1.69

10a34

Rivet Ornit 6,5 X 10.5

293150264

$2.40

10a35

Rivet Ornit 6,5 X 12.5

293150265

$2.40

10a36

Rivet Ornit 6,5 X 16.5

293150267

$2.40

10a37

Ornit Rivet 6,5 X 14.5

293150266

$2.40

10b

Radiator Tunnel 137 Ass'y

518334488

$720.49

Black, Plug

293730052

$9.19

Heat Shield

518331823

$10.49

Insert

293450275

$12.99

Torx Head Screw M6 X 16

250000717

$2.11

170

Insert M5 - 0.8

293450267

$4.59

230

Hex. Flange Screw M6 X 20

207562056

$2.11

425

Hex. Flange Screw M6 X 20

207562056

$2.11

430

Elastic Flange Nut M6 X 1.0

233261416

$2.11

790

Insert

293450278

$4.49

1300

Rear Bumper | Includes 1300 to 1300c

518330033

$111.49

1300b

LH Cap

520001837

Unavailable

1300c

Cap

520001841

Unavailable

1400

Black, Dart 8 mm

293730047

$2.21

1405

Black, Dart 10 mm

293730060

$4.55

1510

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

1520

Flat Washer

224061201

$1.37

1700

Front Protector

518329982

$18.49

1710

Pop Rivet 3/16”

293150108

$1.19

3040

Dart

293730079

$2.09
