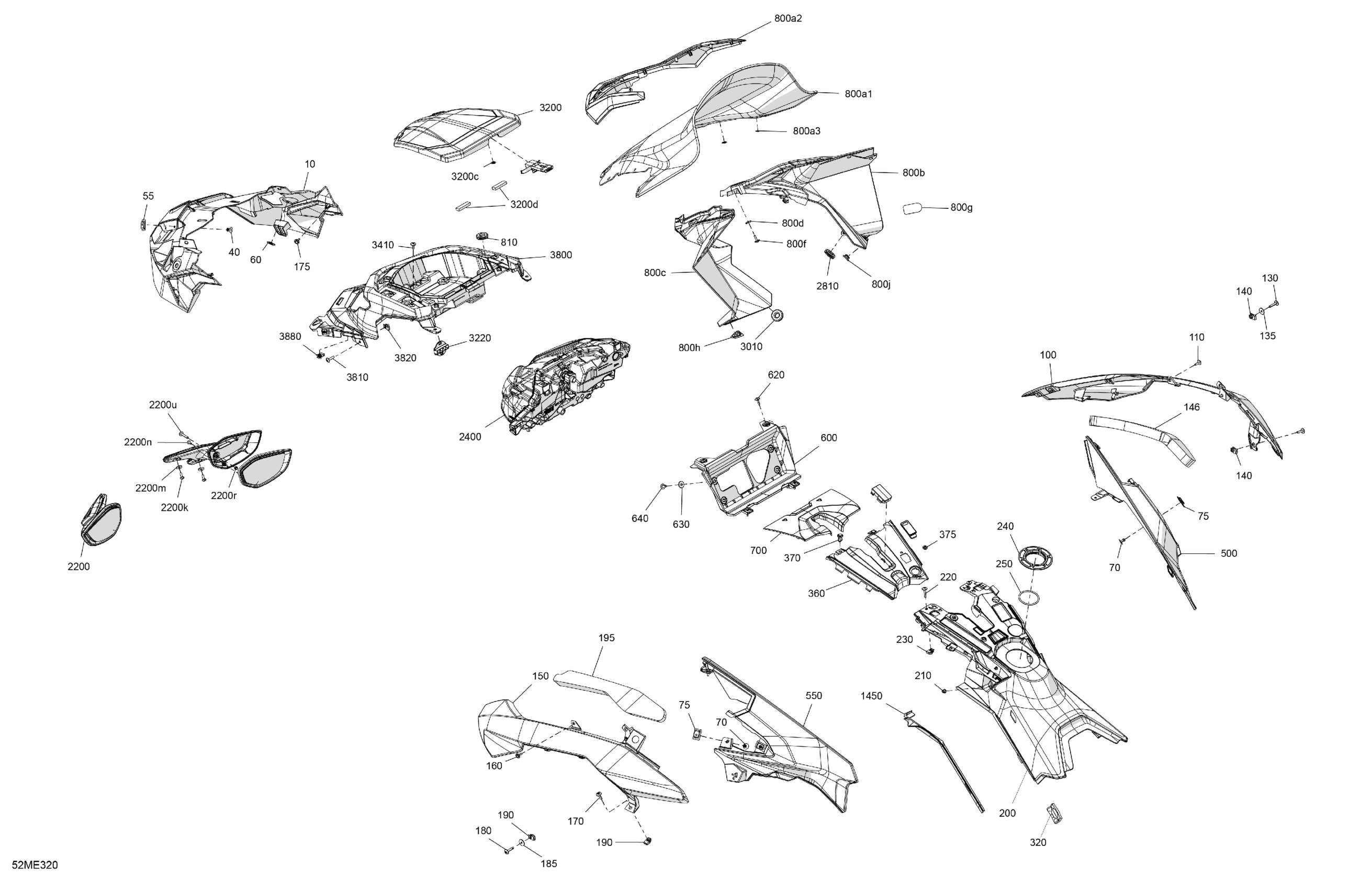

Ski-Doo GRAND TOURING - 900 ACE - LE with Luxury Package - EBSA - Orange Metallic - 137X15X1.25ST3IR Track - 2025 Body - Hood Diagram

#

Description
Price

10

Center Hood

517307755

$214.99

40

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

55

Rivet Plate

517305109

$4.99

60

Push Nut

508000853

$2.09

70

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

75

Rivet Plate

517305109

$4.99

100

Alloy Orange, RH Front Hood

517309272

$214.99

110

Screw M4 X 16

250000725

$3.49

130

Torx Screw M5 X 26

250000587

$4.44

135

Washer

517307442

$1.48

140

Panel Nut M5 X 0.8

250000958

$4.23

146

RH Front Hood Acoustic Insulation

517307948

$12.49

150

Alloy Orange, LH Front Hood

517309273

$214.99

160

Screw M4 X 16

250000725

$3.49

170

Torx Screw M5 X 20

250000528

$2.11

175

Screw M4 X 16

250000725

$3.49

180

Torx Screw M5 X 26

250000587

$4.44

185

Washer

517307442

$1.48

190

Panel Nut M5 X 0.8

250000958

$4.23

195

LH Front Hood Acoustic Insulation

517307950

$13.99

200

Rear Console

517308760

$179.99

210

Flange Elastic Nut M5

233251434

$2.00

220

Torx Screw M5 X 26

250000587

$4.44

230

Panel Nut M5 X 0.8

250000958

$4.23

240

Round Slotted Nut

517309507

$14.49

250

O-Ring

706002839

$1.01

320

Self Adhesive Weather Strip

517308930

$2.39

360

Front Console

517307913

$31.99

370

Tuflok Plastic Rivet

293150230

$1.47

375

Push Nut

732610072

$2.19

500

RH Hood

517308227

$209.99

550

LH Hood

517308228

$209.99

600

Gauge Support

517307751

$38.99

620

Screw M4 X 16

250000889

$3.09

630

Stainless Steel Flat Washer

234062670

$2.11

640

Torx Truss Screw M6 X 12

250000767

$2.00

700

Access Cover

517308427

$9.09

800a1

Windshield 640 MM

517307977

$218.49

800a2

Windshield Support Long

517308793

$44.99

800a3

Push Nut

732610072

$2.19

800b

RH Wide Air Deflector

517308791

$32.99

800c

LH Wide Air Deflector

517308792

$32.99

800d

Rubber Washer 4 MM

517306524

$2.32

800f

Screw M4 X 16

250000889

$3.09

800g

Decal

516009227

Unavailable

800h

RH Stopper

517308989

$8.09

800j

LH Stopper

517308990

$8.09

810

Grommet

517303756

$4.09

1450

Molded Gasket

517308963

$5.49

2200

Rear-View Mirror Kit | Includes 2200 to 2200u

517309198

$116.49

2200k

Torx Screw M5 X 14

250000742

$1.47

2200m

Rubber Washer 5 mm

250200024

$2.19

2200n

Torx Truss PT K40 x 12

250001131

$2.11

2200r

Elastic Stop Nut M5

232551414

$0.87

2200u

Torx Screw Nylon

250000732

$2.11

2400

Headlight Ass'y

517309061

$569.99

2810

Grommet

517303756

$4.09

3010

Grommet

517303756

$4.09

3200

Box Cover Ass'y | Includes 3200 to 3200d

517307754

$30.99

3200c

Push Nut

732610072

$2.19

3200d

Joint Seal

517308246

$2.39

3220

Box Cap

517308260

$13.49

3410

Screw M4 X 16

250000889

$3.09

3800

Upper Fairing

517308231

$64.99

3810

Torx Screw M5 X 20

250000528

$2.11

3820

Panel Nut M5 X 0.8

250000958

$4.23

3880

Panel Nut M5 X 0.8

250000958

$4.23
