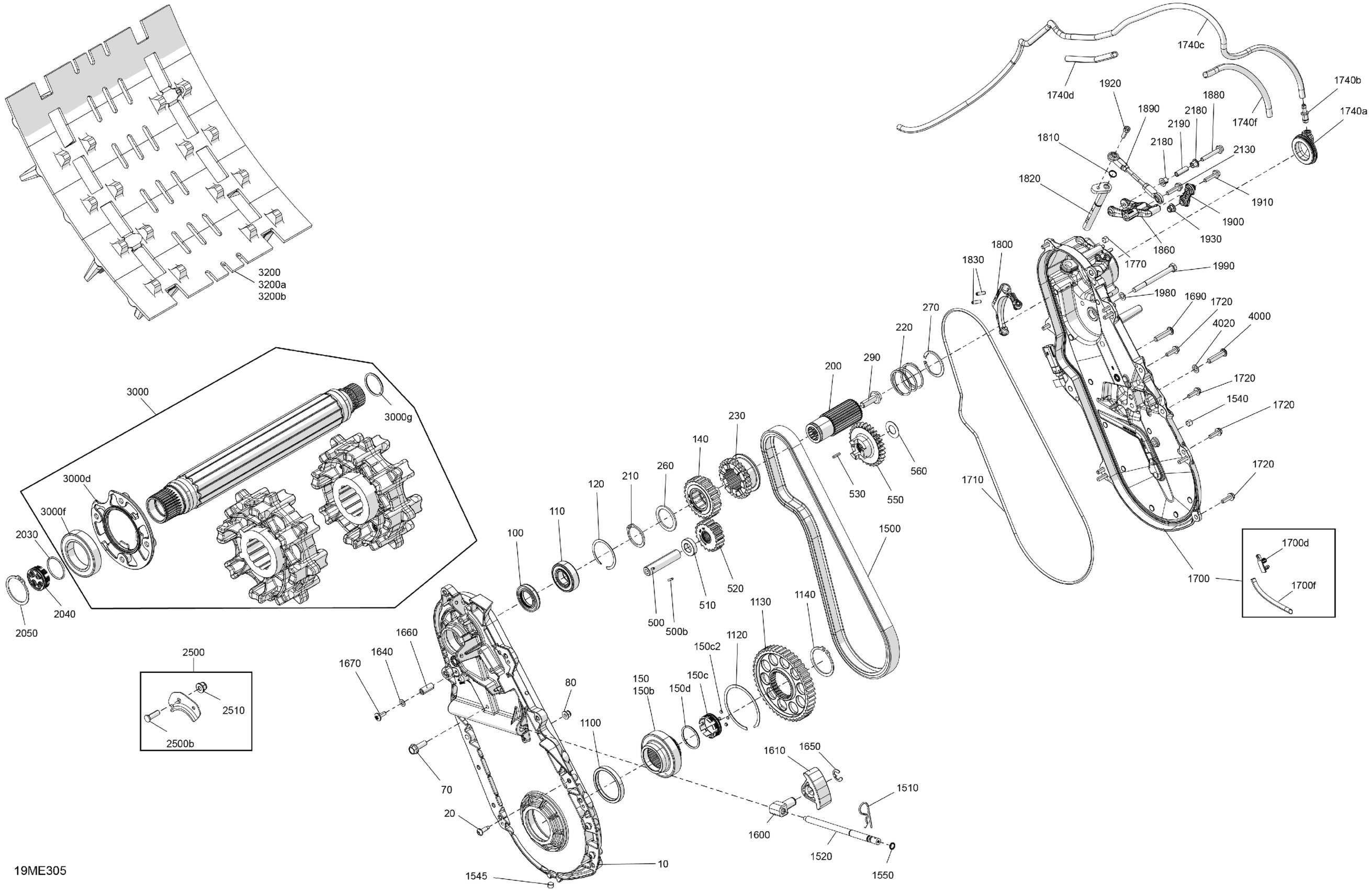

Ski-Doo GRAND TOURING - 900 ACE - LE with Luxury Package - EBSA - Orange Metallic - 137X15X1.25ST3IR Track - 2025 Drive - System Diagram

#

Description
Price

10

Deep Black, Chain Case Ass'y | Includes 10 to 10b

504154292

$98.43

20

Socket Head Screw M6 X 18

250001213

$7.31

70

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.07

80

Flange Elastic Nut M6

233261434

$3.61

100

Oil Seal

293200168

$13.65

110

Ball Bearing

293350153

$11.15

120

Circlip

504152576

$8.71

140

Sprocket 24 Teeth Ass'y

504154083

$50.74

150

Adapter Ass'y | Includes 150 to 150d

504154893

$61.51

150b

Ball Bearing

293350142

$34.99

150c

Magnetic Cap | Includes 150c to 150c2

504154019

$26.12

150c2

Cap

504154043

$2.09

150d

O-Ring Seal

293300291

$0.98

200

Connecting Shaft Ass'y

504153500

$126.89

210

External Retaining Ring

293370183

$3.51

220

Spring Release

504153179

$9.83

230

Sliding Gear 27 Teeth Machined

504153502

$101.51

260

Washer

504152689

$6.26

270

Circlip

293370055

$7.31

290

Hex. Flange Screw M10 X 30, Scotch Grip

207503046

$2.46

500

Axle Reverse Ass'y | Includes 500 to 500b

504153519

$35.35

500b

Rolled Pin M3 X 10

250400010

$1.85

510

Ring

504078700

$17.66

520

Sprocket 19 Teeth Ass'y

504154086

$87.66

530

Alignement Rod

570048600

$13.77

550

Gear Straight 29 Teeth Ass'y

504154087

$103.82

560

Spacer

504077300

$6.26

1100

Oil Seal

293200159

$13.12

1120

Circlip

504152582

$8.71

1130

Sprocket 49 Teeth

504153996

$46.12

1140

Circlip

504152572

$6.26

1500

Drive Chain, 110 Links

504153266

$179.20

1510

Hair Pin

414575600

$1.51

1520

Adjustment Screw

504153760

$23.82

1540

Hex. Countersunk Drain Plug

250500013

$6.78

1545

Magnetic Plug

504153704

$4.88

1550

O-Ring

293300202

$0.98

1600

Chain Tensioner

504154577

$15.06

1610

Slider Chain

504153312

$67.66

1640

Copper Washer

250200185

$1.26

1650

Circlip

293370105

$2.06

1660

Slide Chain

504153531

$16.12

1670

Torx Head Screw M6 X 16

250000717

$1.74

1690

Hex. Button Head Screw M8 X 1.25 X 35

250000764

$1.66

1700

Chain Case Cover Ass'y | Includes 1700 to 1700f

504154064

$179.97

1700d

Connector Support

515179692

$1.63

1700f

Braided Sleeve

415130141

$56.12

1710

O Ring

293300214

$11.52

1720

Hex. Flange Screw M6X20

250001153

$1.76

1740a

Plug

504154839

$6.26

1740b

Straight Pipe Fitting

293710180

$8.68

1740c

Hose 5.7MM - 630MM

219704539

Unavailable

1740d

Heat Shield

515179201

$3.23

1740f

Protector Tube | Not shown

503195447

$12.58

1770

Hex. Countersunk Drain Plug

250500013

$6.78

1800

Fork Ass'y

504154097

$31.51

1810

O-Ring

293300202

$0.98

1820

Reverse Axle

504154096

$18.43

1830

Spring Pin M5 X 16

250400045

$3.73

1860

Machined Lever

504153532

$28.43

1880

Hex. Flange Screw M6 X 40, Scotch Grip

207564044

$3.61

1890

Rod Actuating Adjustable Ass'y

504153657

$38.43

1900

Rod Actuating Ass'y

504153707

$12.32

1910

Hex. Flange Screw M6 X 25

207562544

$1.39

1920

Socket Head Screw M6 X 20, Scotch Grip

205562044

$1.74

1930

Flange Elastic Nut M6

233261434

$3.61

1980

Washer

504082900

$2.58

1990

Hex. Screw M8 X 90

207089044

$2.82

2030

O-Ring

293300201

$0.98

2040

Cap

504154043

$2.09

2050

Circlip

504152572

$6.26

2130

Hex. Flange Screw M6 X 25

207562544

$1.39

2180

Bushing

504153735

$0.52

2190

Spacer

504153648

$3.37

2500

Bearing Housing Ass'y | Includes 2500 to 2500b

504153695

$18.43

2500b

Clinch Stud, M8 X 25

250300028

$4.28

2510

Hex. Flange Elastic Nut M8

233281414

$1.14

3000

Drive Axle Ass'y | Includes 3000 to 3000g

504154547

$396.89

3000d

Retaining Ring

504154417

$18.43

3000f

Ball Bearing

293350059

$30.74

3000g

O-Ring Seal

293300291

$0.98

3200

Track 15 X 137 X 1,25 | Includes 3200 to 3200b

504154384

$1,149.99

3200a

Clip

415130661

$3.12

3200b

Cleat

504152651

$8.22

4000

Hex. Button Head Screw M8 X 1.25 X 35

250000764

$1.66

4020

Washer

504082900

$2.58
