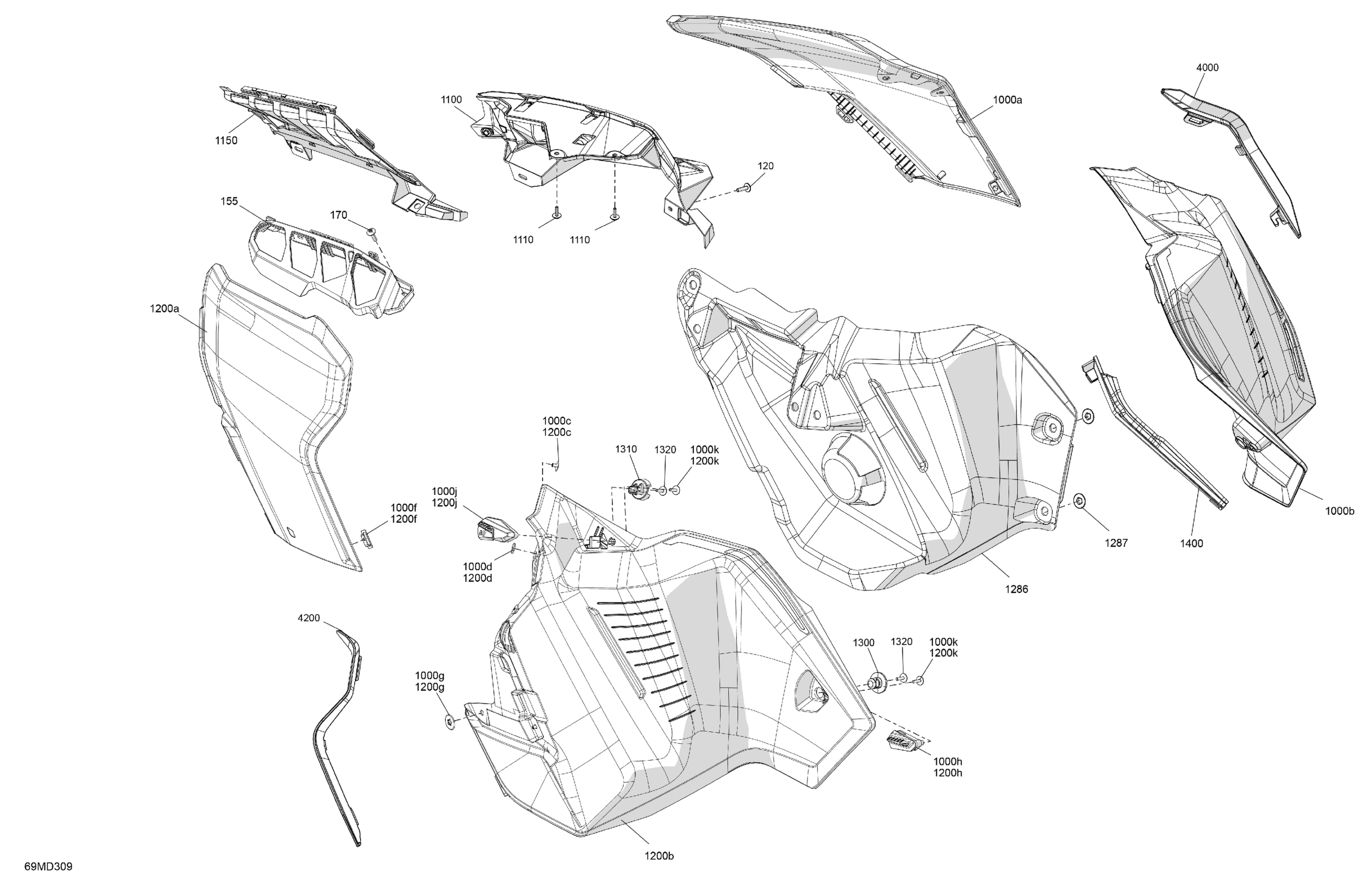

Ski-Doo North America - GRAND TOURING 900 ACE - LE with Luxury Package - EBRB - Tundra Green - 137X15X1.25ST3IR Track, 2024 07- Body - Side Panels Diagram

Description

Price

120

Torx Screw M5 X 20

250000528

$2.11

155

LH Hood Trim

517306470

$26.49

170

Torx Screw M5 X 20

250000528

$2.11

1000a

Tundra Green, RH Front Panel

517308869

$214.99

1000b

RH Rear Panel

517306671

$184.99

1000c

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

1000d

Washer

517124300

$0.19

1000f

Rivet Plate

517305109

$4.99

1000g

Push Nut

250100158

$2.11

1000h

RH Rear Latch

517305773

$18.49

1000j

RH Front Latch

517305979

$16.79

1000k

Screw M4 X 16

250000725

$3.49

1100

RH Hood Grille

517308651

$28.99

1110

Screw M4 X 16

250000725

$3.49

1150

LH Hood Trim

517308650

$31.99

1200a

Tundra Green, LH Front Panel

517308874

$204.99

1200b

Deep Black, LH Rear Panel

517308780

$204.99

1200c

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

1200d

Washer

517124300

$0.19

1200f

Rivet Plate

517305109

$4.99

1200g

Push Nut

250100158

$2.11

1200h

LH Rear Latch

517305774

$18.49

1200j

LH Front Latch

517305980

$18.49

1200k

Screw M4 X 16

250000725

$3.49

1286

LH Acoustic Panel

517308600

$45.99

1287

Push Nut

508000853

$2.09

1300

Rear Stud

517305985

$15.36

1310

Front Stud

517305988

$16.18

1320

Screw M4 X 16

250000725

$3.49

1400

Molded Gasket

517308962

$5.49

4000

RH Panel Deflector

517306356

$9.99

4200

LH Panel Deflector

517306357

$9.99
