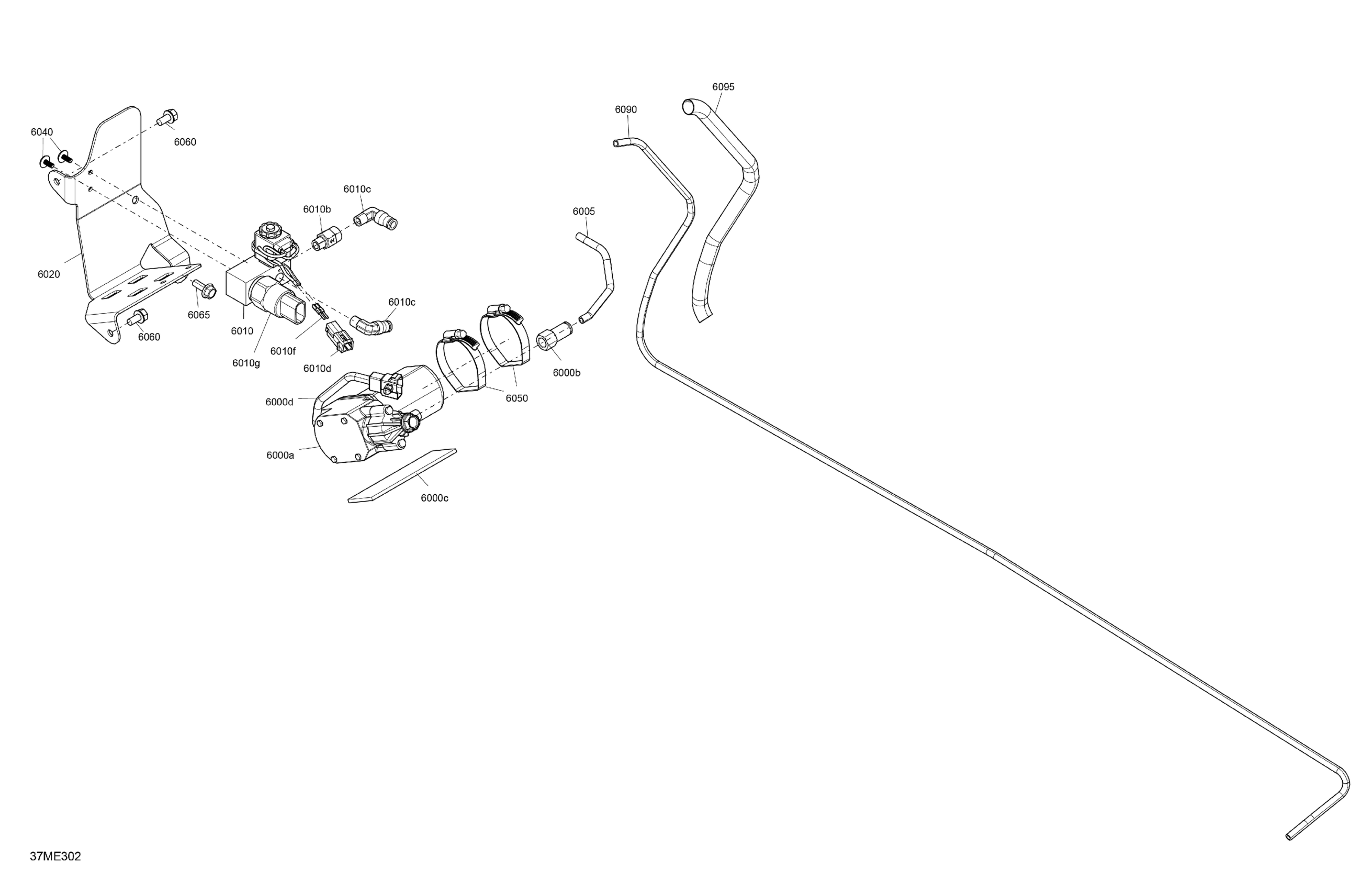

Ski-Doo GRAND TOURING - 900 ACE - LE - EBSB - Deep Black - 137X15X1.25ST3 Track - 2025 Suspension - Air Compressor Diagram

Description

Price

6000a

Compressor

503194941

$469.99

6000b

Female Connector

706201253

$28.99

6000c

Rubber Damper

503191940

$10.49

6000d

Tubing 6 Mm 3000Mm Long

219704425

$13.75

6005

Hose 4.32Mm 3000Mm Long

219704415

$55.99

6010

Air Manifold Ass'y | Includes 6010 to 6010g

503196323

$1.00

6010b

Check Valve

706000860

$42.99

6010c

Elbow 90°

706000872

$28.99

6010d

Male Terminal Housing, 2 Circuits

515175654

$9.12

6010f

Male Terminal

515175232

$1.58

6010g

Air Suspension Sensor

515179088

$174.99

6020

Support Manifold

503195677

$42.99

6040

Hexalob Screw M4 X 10

250000565

$2.11

6050

Norma Gear Clamp

293650090

$4.54

6060

Hex. Flange Screw M6 X 12

210261250

$1.90

6065

Hex. Flange Screw M6 X 16

207661654

$2.11

6090

Hose 4.32Mm 3000Mm Long

219704415

$55.99

6095

Protector Tube | Not shown

503195447

$13.49
