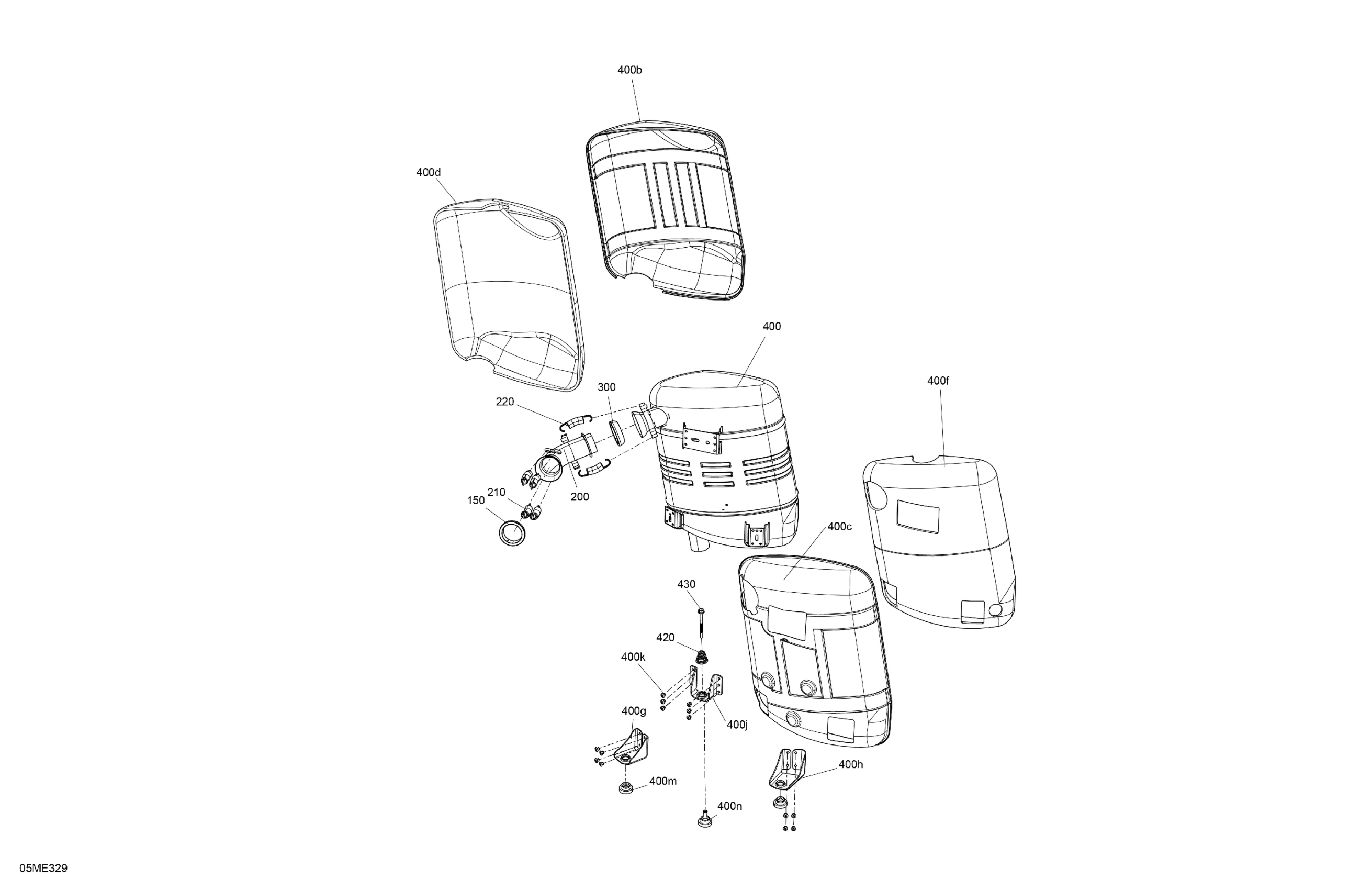

Ski-Doo GRAND TOURING - 900 ACE - LE - EBSB - Deep Black - 137X15X1.25ST3 Track - 2025 Engine - Exhaust Diagram

Description

Price

150

Exhaust Gasket

707601033

$13.77

200

Pipe

514055475

$402.99

200d

Steel Wire S6 .9mm HI-DEP | Not Shown

75011200

Unavailable

210

Spring

707601834

$6.35

220

Spring

514055198

$6.35

300

Exhaust Gasket

707601033

$13.77

400

Exhaust Muffler Ass'y | Includes 400 to 400n

514056372

$1.00

400a19

Steel Wire S6 .9mm HI-DEP | Not Shown

75011200

Unavailable

400b

RH Deflector

514055981

$53.99

400c

LH Deflector

514056330

$62.99

400d

Glass Wool

514056353

$19.99

400f

Glass Wool

514056354

$8.39

400g

Front Muffler Support

514056022

$5.39

400h

Rear Muffler Support

514056038

$6.39

400j

Support

514056055

$6.39

400k

Pop Rivet 3/16 X ,425

293150293

$0.35

400m

Stopper

514055203

$20.49

400n

Stopper Ass'y

514056138

$13.22

420

Spring

514055282

$6.35

430

Hex. Flange Screw M6

250000926

$1.01
