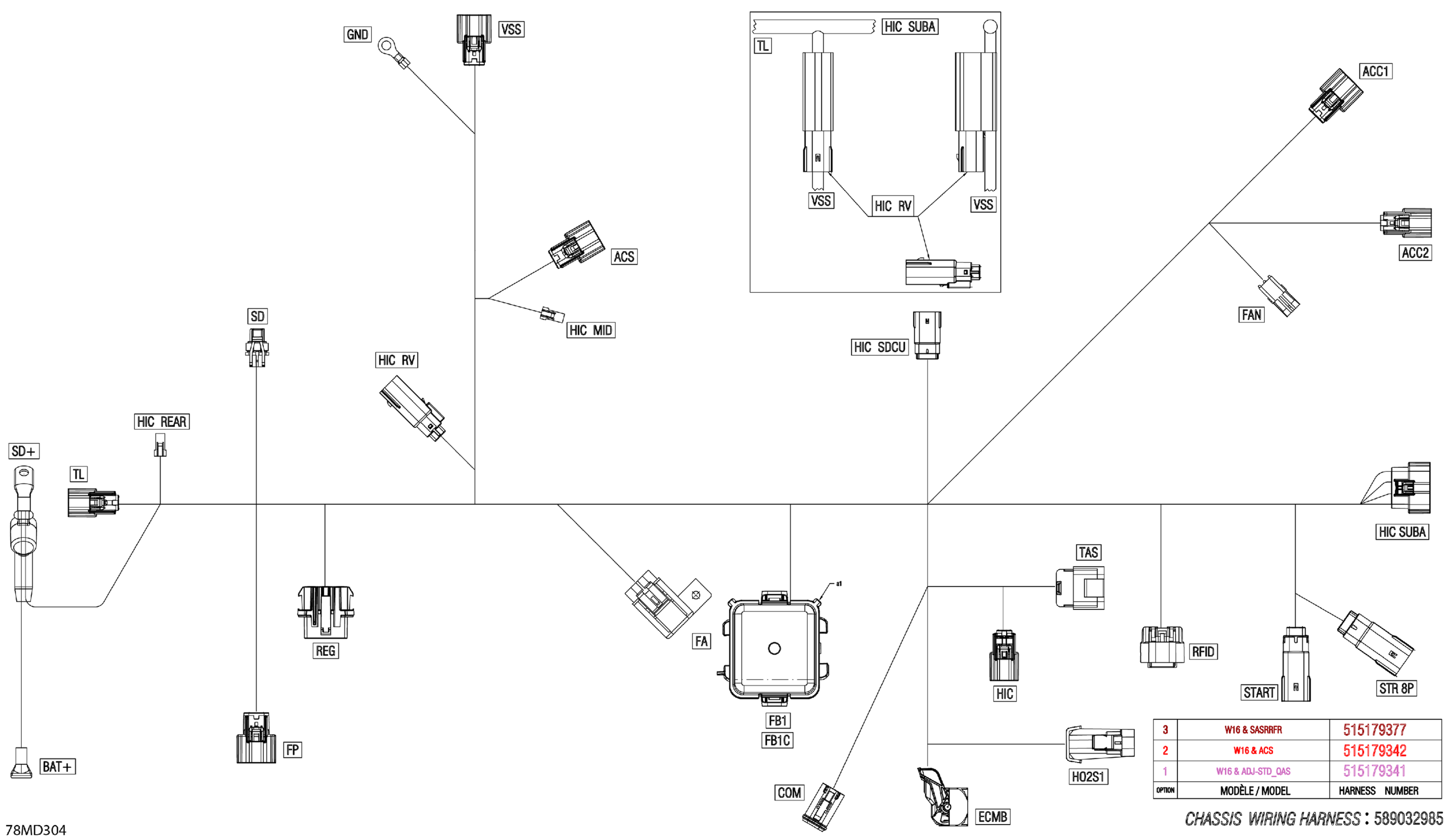

Ski-Doo GRAND TOURING 900 ACE - LE - EBRA - Deep Black - 137X15X1.25ST3 Track, 2024 Electric - Main Harness - 515179342 Diagram

#

Description
Price

3000

Chassis Wiring Harness

515179342

$389.99

ACC1

Housing

515178954

$35.99

ACC1

Female Terminal

515178018

$1.19

ACC2

2 Circuits Female Housing

278002853

$17.99

ACC2

Female Terminal

515178018

$1.19

ACS

Coil Connector

515178202

$13.24

ACS

Female Terminal

515178018

$1.19

ACS

Female Terminal

515178014

$2.39

COM

Female Housing 6 Circuits

710002706

$20.49

COM

Lock

710002705

$4.44

COM

Female Terminal

710005438

$4.29

COM

Female Terminal

710005439

$4.44

ECMB

Cover

515178601

$18.49

ECMB

Housing 56 Circuits

515178595

$29.49

ECMB

Plate

515178604

$4.59

ECMB

Plug

515178599

$3.17

ECMB

Plate

515178603

$4.59

ECMB

Terminal

515178596

$3.72

ECMB

Terminal

515178598

$3.61

ECMB

Terminal

515178597

$15.36

F1

Little Fuse, 5 Amperes

710000742

$8.79

F10

Little Fuse, 15 Ampere

710000745

$8.49

F2

Little Fuse, 15 Ampere

710000745

$8.49

F3

Little Fuse, 10 Amperes

710000744

$8.79

F4

Little Fuse, 10 Amperes

710000744

$8.79

F5

Little Fuse, 15 Ampere

710000745

$8.49

F7

Little Fuse, 10 Amperes

710000744

$8.79

F8

Little Fuse, 20 Amperes

710000746

$8.49

F9

Little Fuse, 15 Ampere

710000745

$8.49

FA

Fuse Holder Cap

278001326

$7.69

FA

Cushion

278000805

$3.28

FA

Fuse

710001613

$8.79

FA

Fuse Holder

278001325

$8.79

FA

Female Terminal

710000357

$7.69

FAN

Female Housing, 2 Circuits

278000217

$9.59

FAN

Wire Seal

278000218

$4.39

FAN

Male Terminal

409004300

$5.61

FB1

Fuse Puller

710000781

$8.09

FB1

Fuse Base Ass'y

278003448

$31.99

FB1

Seal Plug

278002880

$7.86

FB1

Wire Seal

278000218

$4.39

FB1

Wire Seal

278001065

$7.69

FB1

Female Terminal

710000890

$4.55

FB1

Female Terminal

710000918

$7.69

FB1

Female Terminal

278002578

$1.04

FB1C

Fuse Box Cover

515179483

$4.33

FB1C

Little Fuse, 10 Amperes

710000744

$8.79

FB1C

Little Fuse, 15 Ampere

710000745

$8.49

FB1C

Little Fuse, 20 Amperes

710000746

$8.49

FP

Female Housing

515178474

$34.99

FP

Female Terminal

515178018

$1.19

GND

Open Barrel Terminal

278001392

$4.79

HIC

Female Housing, 4 circuits

278003535

$25.99

HIC

Female Terminal

515178018

$1.19

HIC SUBA

Female Molex Connector 20 Cavities

515179227

$16.49

HIC SUBA

Female Terminal

515178018

$1.19

HIC SUBA

Female Terminal

515178014

$2.39

HIC RV

Molex Male Connector 8 Cavities

515178907

$11.12

HIC RV

Male Terminal

515178013

$3.19

HO2S1

Clip

710000992

$4.29

HO2S1

Housing

710002466

$3.19

HO2S1

Lock

515178661

$4.44

HO2S1

Seal

278001482

$3.19

HO2S1

Gold Terminal

710002597

$3.19

HO2S1

Terminal

710000736

$5.50

REG

Female Housing, 3 Circuits

710000879

$25.99

REG

Seal

710001932

$3.27

REG

Seal

278003685

$16.79

REG

Terminal

710001934

$5.50

RFID

Female Delphi Connector 5 Cavities

710007151

$17.04

RFID

Wire Seal

710001163

$7.69

RFID

Female Terminal

710001164

$8.89

RY1

Relay

715900824

$21.99

RY2

Relay

715900824

$21.99

RY3

Relay

715900824

$21.99

RY4

Relay

715900824

$21.99

SD

Female Housing, 2 Circuits

515177192

$9.12

SD

Seal Wire

710001332

$3.28

SD

Terminal

710000925

$3.19

SD+

Terminal

515177214

$7.86

START

Housing

515178023

$14.74

START

Male Terminal

515178013

$3.19

STR8P

Molex Male Connector 8 Cavities

515178907

$11.12

STR8P

Male Terminal

515178013

$3.19

TAS

Clip

710000992

$4.29

TAS

Housing

710001231

$13.99

TAS

Seal

710001233

$3.19

TAS

Terminal

710001224

$3.19

TL

Female Housing Connector 4 Pins W/O CPA

515178346

$14.28

TL

Female Terminal

515178018

$1.19

TL

Female Terminal

515178014

$2.39

VSS

Housing

515178954

$35.99

VSS

Female Terminal

515178018

$1.19
