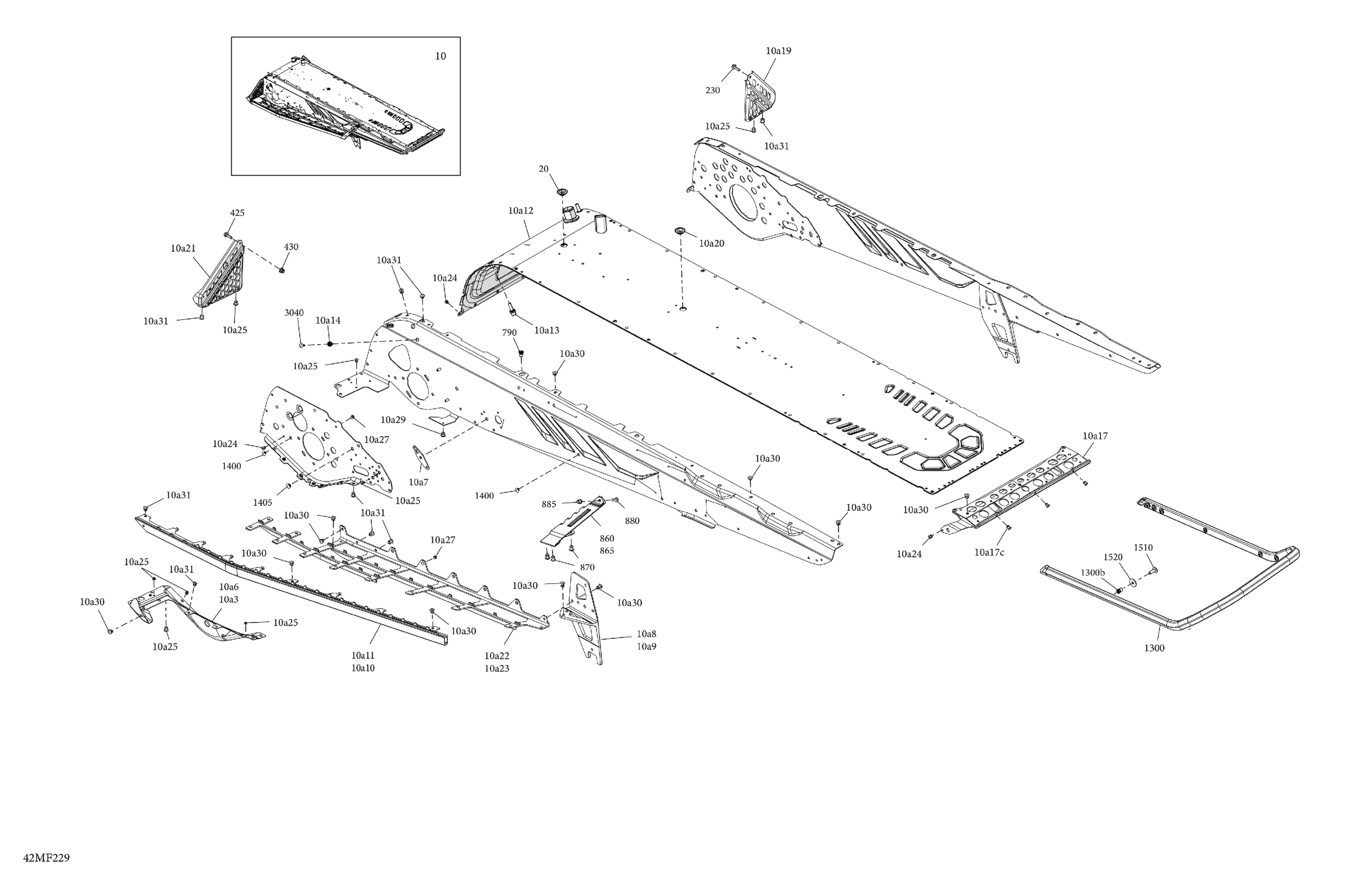

Ski-Doo FREERIDE - STD - 850 E-TEC - VBTC - Scandi Blue - 15X146X2.5P Track, 2026 Frame - System - Rear Section Diagram

Scandi Blue, Chassis Tunnel Moduel 146 Short

415130970

$3,139.52

RH Footrest Reinforcement

518332455

$79.07

LH Footrest Reinforcement

518332456

$79.07

Front Suspension Arm Reinforcement

518335959

$3.73

LH Rear Suspension Support

518335956

$91.76

RH Rear Suspension Support

518335957

$41.01

RH Formed Boarding Step

518332833

$179.07

LH Formed Boarding Step

518332834

$179.07

Radiator Tunnel 137

518336157

$682.06

Protruding Stud M8 x 22

250300652

$4.15

Insert Half Hex Body M6 x 1.0

250100199

$2.91

Rear Cap Ass'y | Includes 10a17 to 10a17c

518331704

$57.43

Rivet Avibulb 3/16

293150203

$0.28

RH Footrest

518332462

$41.01

Black, Plug

293730052

$6.18

LH Footrest

518332463

$41.01

LH Rear Perforated Footstep

518335287

$105.94

RH Rear Perforated Footstep

518335288

$105.94

Rivet Ornit 4,8 X 11,3

293150312

$0.28

Rivet Ornit 4,8 X 8,8

293150313

$0.28

Henrob Rivet

293150245

$1.60

Rivet Ornit 6,5 X 12.5

293150265

$1.88

Rivet Ornit 6,5 X 16.5

293150267

$1.88

Ornit Rivet 6,5 X 14.5

293150266

$1.88

Black, Plug

293730052

$6.18

Hex. Flange Screw M6 X 20

207562056

$2.00

Hex. Flange Screw M6 X 20

207562056

$2.00

Elastic Flange Nut M6 X 1.0

233261416

$2.00

Insert

293450278

$3.97

Scandi Blue, RH Rear Footrest Reinforcement

518336304

$44.00

Scandi Blue, LH Rear Footrest Reinforcement

518336303

$44.00

Rivet Ornit 6,5 X 16.5

293150267

$1.88

Socket Head Screw M6 X 16

250001367

$7.69

Hex. Flange Elastic Nut M6

233261466

$1.91

Rear Short Bumper 146 | Includes 1300 to 1300b

518336436

$134.99

Insert

293450275

$11.36

Black, Dart 8 mm

293730047

$2.07

Black, Dart 10 mm

293730060

$4.28

Dart

293730079

$1.87

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.00

Flat Washer

224061201

$1.27
