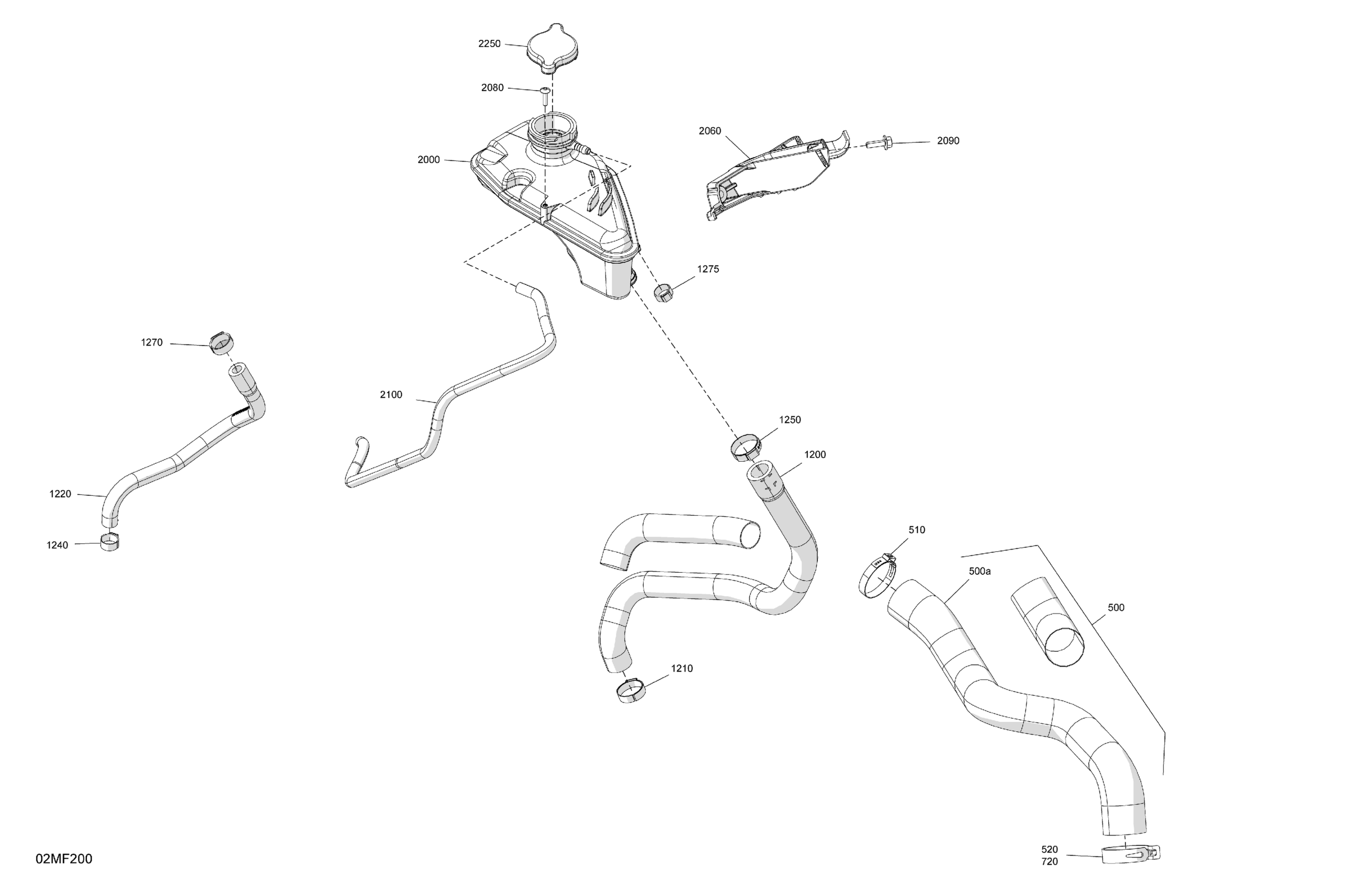

Ski-Doo FREERIDE - STD - 850 E-TEC - VBTC - Scandi Blue - 15X146X2.5P Track, 2026 Engine - Cooling Diagram

Description

Price

500

Thermostat Hose | Includes 500 to 500a

509001413

$23.85

500a

Thermostat Hose | Includes 500 to 500a

509001413

$23.85

510

Oetiker Gear Clamp

293650254

$8.89

520

Norma Spring Clamp

293650264

$4.15

720

Norma Spring Clamp

293650264

$4.15

1200

Cooling Hose

509001429

$20.12

1210

Oeticker Gear Clamp, 25.6-706R

509000442

$4.73

1220

Purge Hose

509001342

$10.21

1240

Oetiker Clamp

293650046

$2.67

1250

Oetiker Clamp

509001041

$1.87

1270

Oetiker Clamp | Europe

293650030

$4.96

1275

Oetiker Clamp

293650046

$2.67

2000

Coolant Tank

509001314

$72.36

2060

Coolant Tank Support Ass'y | Includes 2060 to 2060c

509001405

$10.21

2060c

Insert M5 - 0.8

293450267

$4.09

2080

Torx-Truss Pt K40 X 16

250000759

$2.00

2090

Hex. Flange Screw M5 X 16

207651646

$2.00

2100

Hose 6 Mm 15000Mm Long

219704360

$120.12

2250

Radiator Pressure Cap

509000180

$13.42
