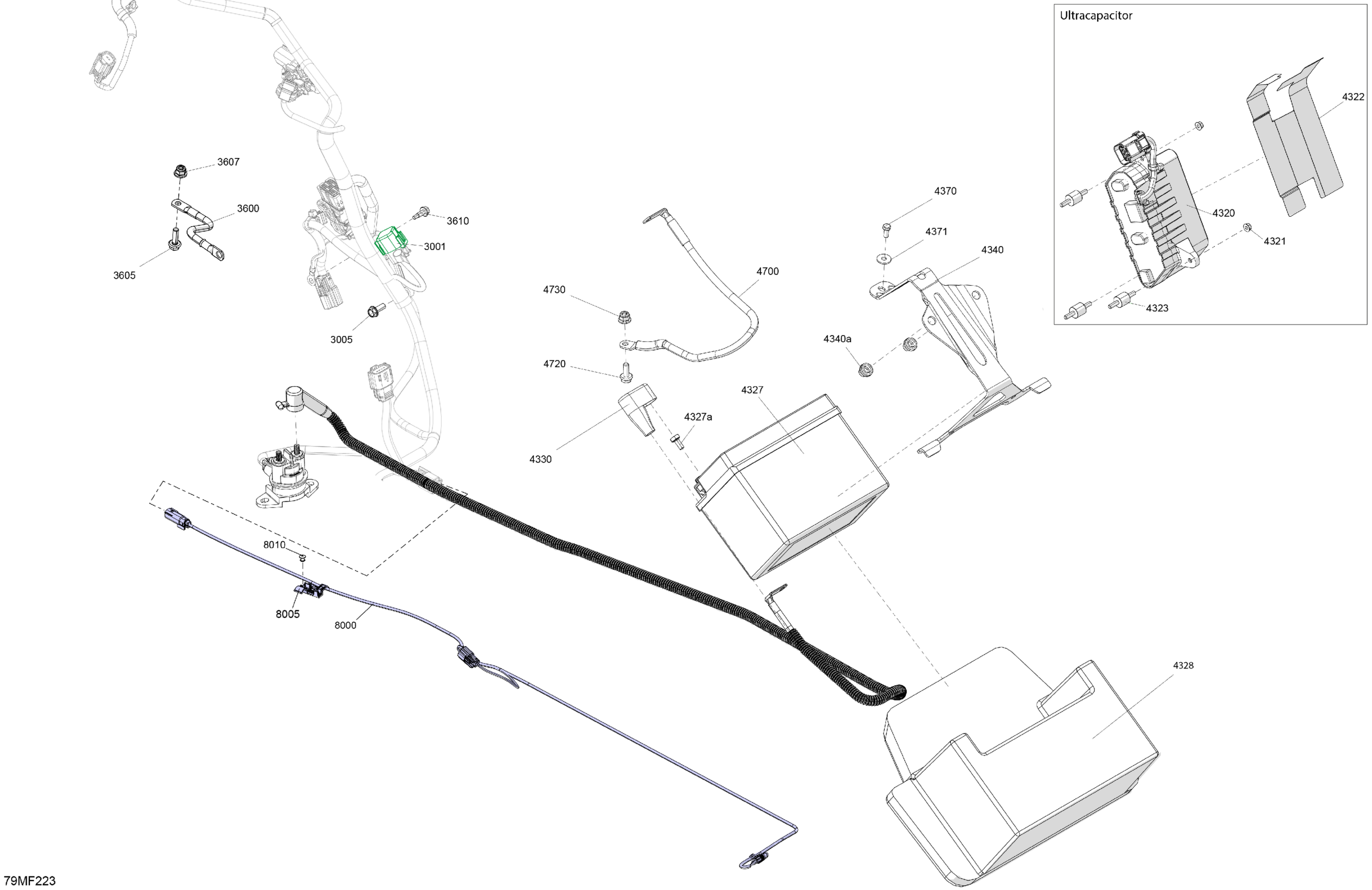

Ski-Doo North America - FREERIDE - STD - 850 E-TEC Turbo R - VKTA - Deep Black - 15X146X2.5P Track, 2026 08- Electric - Lower Section Diagram

Description

Price

3001

Diagnostic Cap

515178435

$8.79

3005

Hex. Flange Screw M6 X 16

250001062

$1.57

3600

Ground Wire

515178248

$24.99

3605

Hex. Flange Screw M6 X 20

207662044

$2.00

3607

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

3610

Hex. Flange Screw M5 X 16

250000911

$0.85

4320

Ultracapacitor Module

515178891

$509.99

4321

Hex. Flange Nut M5

233151414

$0.55

4322

Heat Shield

515178698

$3.49

4323

Rubber Mount

707000746

$9.19

4327

Battery 12 Volt 4 Ah

415130961

Unavailable

4327a

Battery Bolt Kit

715500541

$3.29

4328

Battery Support

515179279

$13.99

4330

Protector Cap | STD

710001817

$11.12

4340

Battery Strip | Includes 4340 to 4340a

515177870

$19.99

4340a

Insert

293450275

$12.99

4370

Hex. Screw M5 X 12

207151244

$0.90

4371

Washer | DS 650 X

391301600

$0.48

4700

Ground Wire

515178155

$26.99

4720

Hex. Flange Screw M6 X 16

207661644

$0.74

4730

Elastic Flange Nut M6 X 1.0

233261416

$2.11

8000

Taillight Wiring Harness

515179887

$58.99

8005

Wiring Harness Support

515179630

$11.01

8010

Pop Rivet 3/16 X ,425

293150293

$0.35
