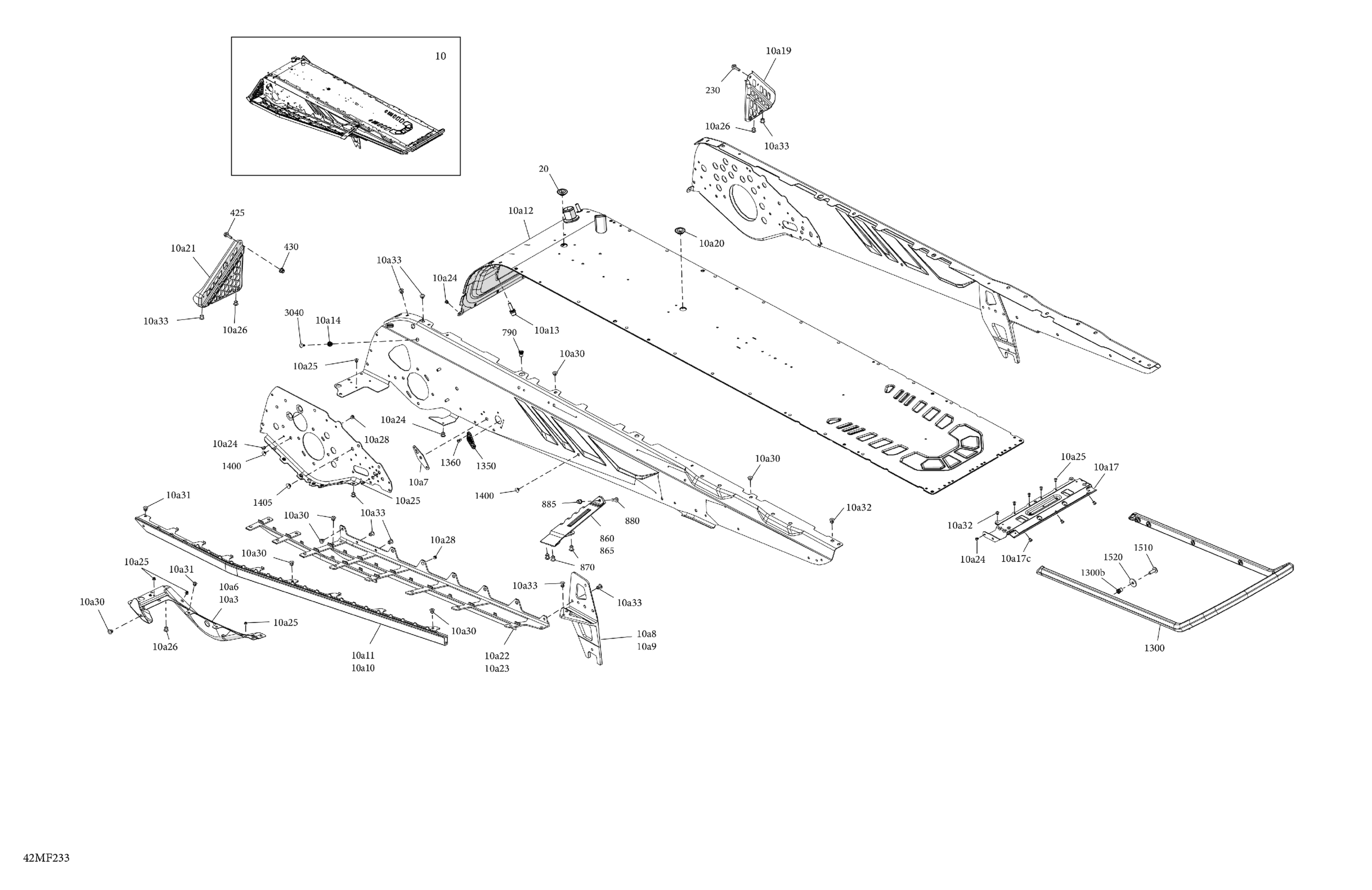

Ski-Doo North America - FREERIDE - STD - 850 E-TEC Turbo R - VDTG - Scandi Blue - 15X165X3P4 Track, 2026 06- Frame - System - Rear Section Diagram

Description

Price

Scandi Blue, Chassis Tunnel Module 165 Short

415130972

$3.00

10a3

RH Footrest Reinforcement

518332455

$88.99

10a6

LH Footrest Reinforcement

518332456

$88.99

10a7

Front Suspension Arm Reinforcement

518335959

$4.19

10a8

LH Rear Suspension Support

518335956

$94.99

10a9

RH Rear Suspension Support

518335957

$42.99

10a10

RH Formed Boarding Step

518332833

$194.99

10a11

LH Formed Boarding Step

518332834

$194.99

10a12

Radiator Tunnel 146

518336164

$739.99

10a13

Protruding Stud M8 x 22

250300652

$4.44

10a14

Insert Half Hex Body M6 x 1.0

250100199

$3.19

10a17

Tss Tunnel Cap Ass'y | Includes 10a17 to 10a17c

518335914

$58.30

10a17c

Rivet Ornit 4,8 X 11,3

293150312

$0.30

10a19

RH Footrest

518332462

$44.99

10a20

Black, Plug

293730052

$9.19

10a21

LH Footrest

518332463

$44.99

10a22

LH Rear Perforated Footstep

518335287

$114.99

10a23

RH Rear Perforated Footstep

518335288

$114.99

10a24

Rivet Ornit 4,8 X 11,3

293150312

$0.30

10a25

Rivet Ornit 4.8 X 14

293150289

$0.99

10a26

Rivet Ornit 4,8 X 8,8

293150313

$0.30

10a28

Henrob Rivet

293150245

$1.69

10a30

Rivet Ornit 6,5 X 12.5

293150265

$2.40

10a31

Rivet Ornit 6,5 X 18.5

293150268

$2.40

10a32

Rivet Ornit 6,5 X 16.5

293150267

$2.40

10a33

Ornit Rivet 6,5 X 14.5

293150266

$2.40

Black, Plug

293730052

$9.19

230

Hex. Flange Screw M6 X 20

207562056

$2.11

425

Hex. Flange Screw M6 X 20

207562056

$2.11

430

Elastic Flange Nut M6 X 1.0

233261416

$2.11

790

Insert

293450278

$4.49

860

Scandi Blue, RH Rear Footrest Reinforcement

518336304

$48.99

865

Scandi Blue, LH Rear Footrest Reinforcement

518336303

$48.99

870

Rivet Ornit 6,5 X 16.5

293150267

$2.40

880

Socket Head Screw M6 X 16

250001367

$8.15

885

Hex. Flange Elastic Nut M6

233261466

$2.00

1300

Rear Bumper Ass'y 165 | Includes 1300 to 1300b

518335952

$132.99

1300b

Insert

293450275

$12.99

1350

Trim Cap

518335954

$10.99

1360

Rivet Ornit 4.8 X 14

293150289

$0.99

1400

Black, Dart 8 mm

293730047

$2.21

1405

Black, Dart 10 mm

293730060

$4.55

3040

Dart

293730079

$2.09

1510

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

1520

Flat Washer

224061201

$1.37
