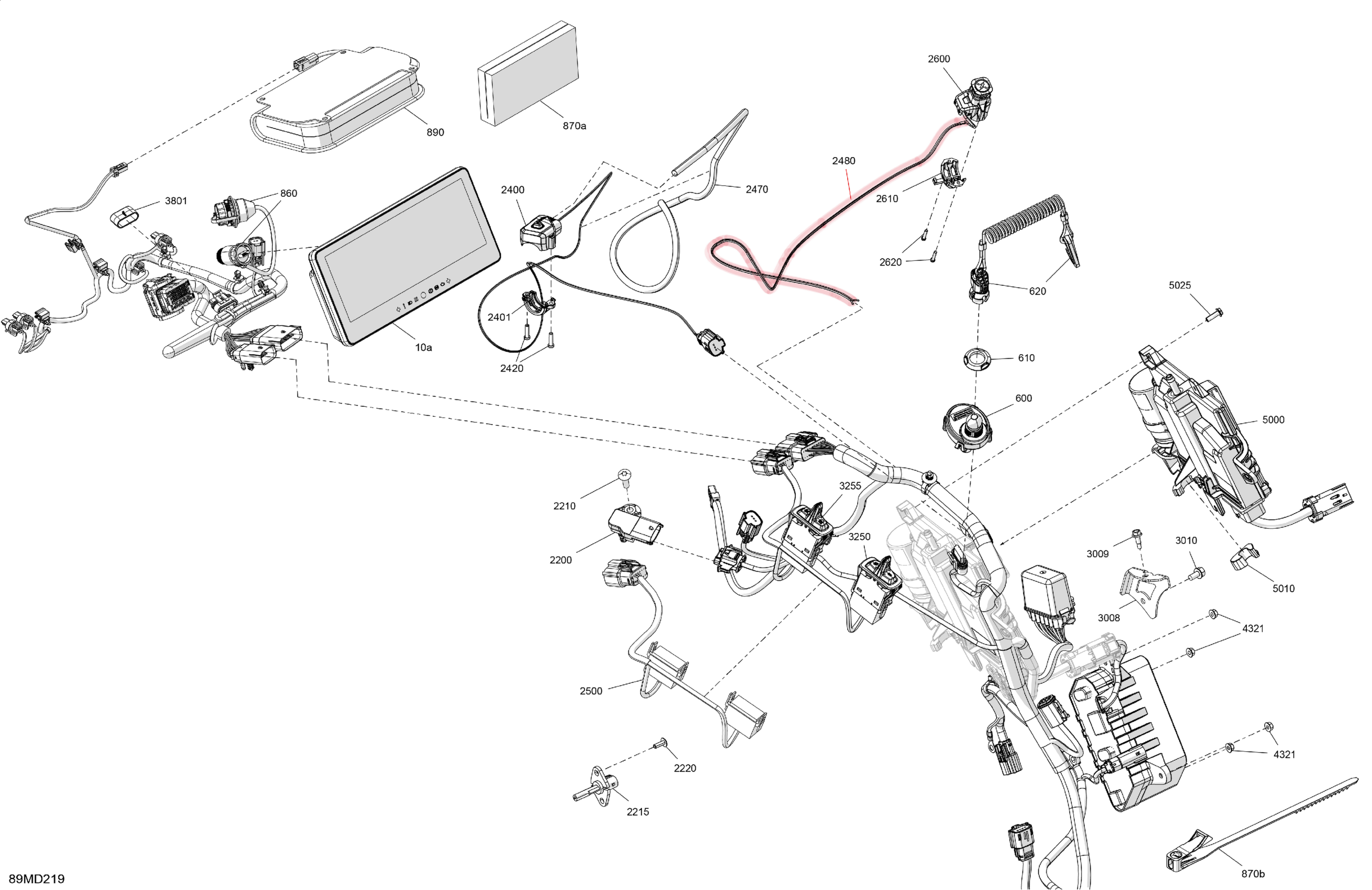

Ski-Doo FREERIDE 850 E-TEC Turbo R - 146 - VKRB - Neo Mint - 146X15X2.5P Track, 2024 Electric - Upper Section Diagram

Description

Price

10a

Multifunction Gauge 10

710009417

$2,012.66

600

Terminal DESS CAN | CARB Vehicle

710008832

$69.37

610

Specialized Nut

278004274

$3.12

620

Grey, Ski-Doo DESS Key

515179475

$62.66

860

USB Wiring Harness Ass'y

515179248

$72.36

870a

Sealed Compartment Foam

264000135

$10.58

870b

Mounting Clamp P

515179675

$4.09

890

NEEDS DESCRIPTION | Includes 890 to 890a This part replaces 515179904.

860202888

$108.93

2200

Pressure Sensor And Air Temperature

515178563

$154.45

2210

Torx-Truss Pt K40 X 16

250000759

$2.00

2215

Air Temperature Sensor

515176366

$17.88

2220

Torx Truss PT K40 x 12

250001131

$2.00

2400

Ignition Switch

515179056

$66.39

2401

Clamp

515177952

$8.31

2420

Torx Screw

250000671

$0.96

2470

Braided Sleeve

415130141

$54.45

2480

Braided Sleeve

415130141

$54.45

2500

Console Wiring Harness

515179085

$70.12

2600

Emergency Stop Switch

515179472

$74.60

2610

Clamp

515179182

$8.34

2620

Screw PT. Socket T10 K30 X 16

250001201

$3.10

3008

Fuse Box Support

515179281

$30.57

3009

Hex. Flange Screw M5 X 16

250000911

$0.81

3010

Hex. Flange Screw M6 X 16

250001062

$1.39

3250

Switch Rocker Hand Warmer

515178462

$18.63

3255

Switch Rocker Headlignt

515178463

$18.63

3801

Plug

515179300

$8.31

4321

Hex. Flange Nut M5

233151414

$0.52

5000

ECM Module | Includes 5000a to 5000a1

515179355

$571.61

5010

Rubber Stopper

515178430

$2.03

5025

Hex. Flange Screw, Scotch Grip

207551634

$1.91
