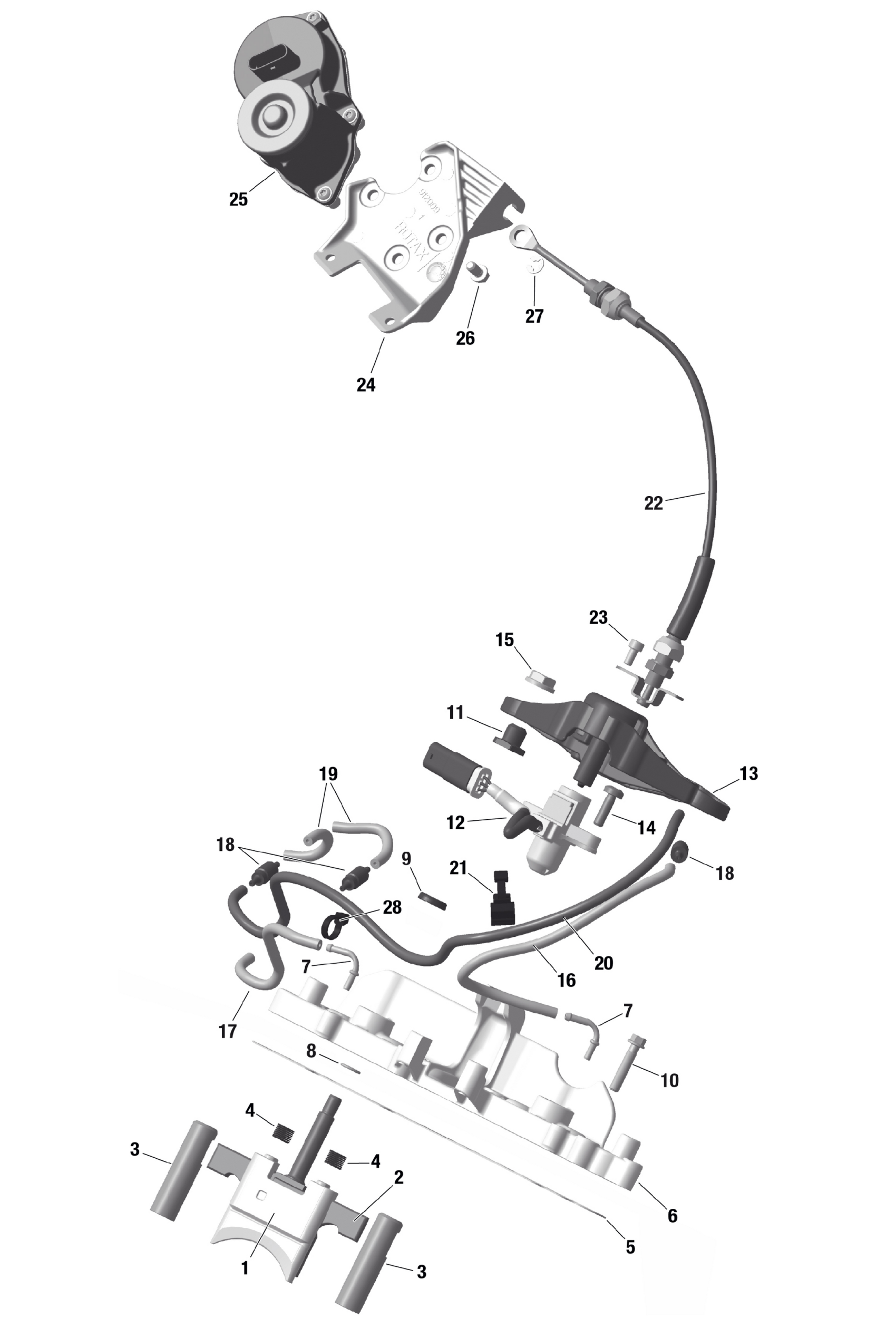

Ski-Doo FREERIDE 850 E-TEC Turbo R - 146 - VKRA - Neo Mint - 146X15X2.5P Track, 2024 ROTAX - RAVE Valve Diagram

#

Description
Price

1

Exhaust Valve Upper

420954051

$19.37

2

Lower Exhaust Valve

420954054

$32.06

3

Exhaust Valve

420954041

$10.85

4

Spring

420238558

$5.06

5

Valve Rod Housing Gasket

420430037

$7.99

6

Valve Housing | Includes no. 6-7

420954063

$89.52

7

Fitting 90D

420924053

$9.03

8

O-Ring

420950950

$0.96

9

Oil Seal | Included in gasket kit

420950732

$8.09

10

Torx Flange Screw M6 X 30

420440647

$1.91

11

Collar Nut M8

420942331

$4.15

12

Valve Bar With Position Sensor | Includes no. 12-13

420855295

$105.94

12

Valve Bar With Position Sensor | Includes no. 12-13

420855295

$105.94

13

Valve Bar

420855290

Unavailable

14

Torx Flange Screw M6 X 20

420441386

$2.00

15

Nut M12 X 1.5

420942190

$12.15

16

Oil Line 673MM

420201924

$8.34

17

Oil Line 673MM

420201924

$8.34

18

Check Valve Ass’y

420956515

$7.64

19

Oil Line 673MM

420201924

$8.34

20

Oil Line 673MM

420201924

$8.34

21

Tie-Rap With Mount

420951655

$1.72

22

Bowden Cable Ass'y

420997033

$102.21

23

Allen Screw M5 X 10

420240692

$1.60

24

Mounting Bracket

420912007

$17.88

25

Servo Motor Ass'y

420889432

$302.21

26

Hex. Flange Screw M6 X 12

420440149

$2.00

27

Retaining Ring

420945710

$0.48

28

Not Available As Spare Parts

XXX

Unavailable
