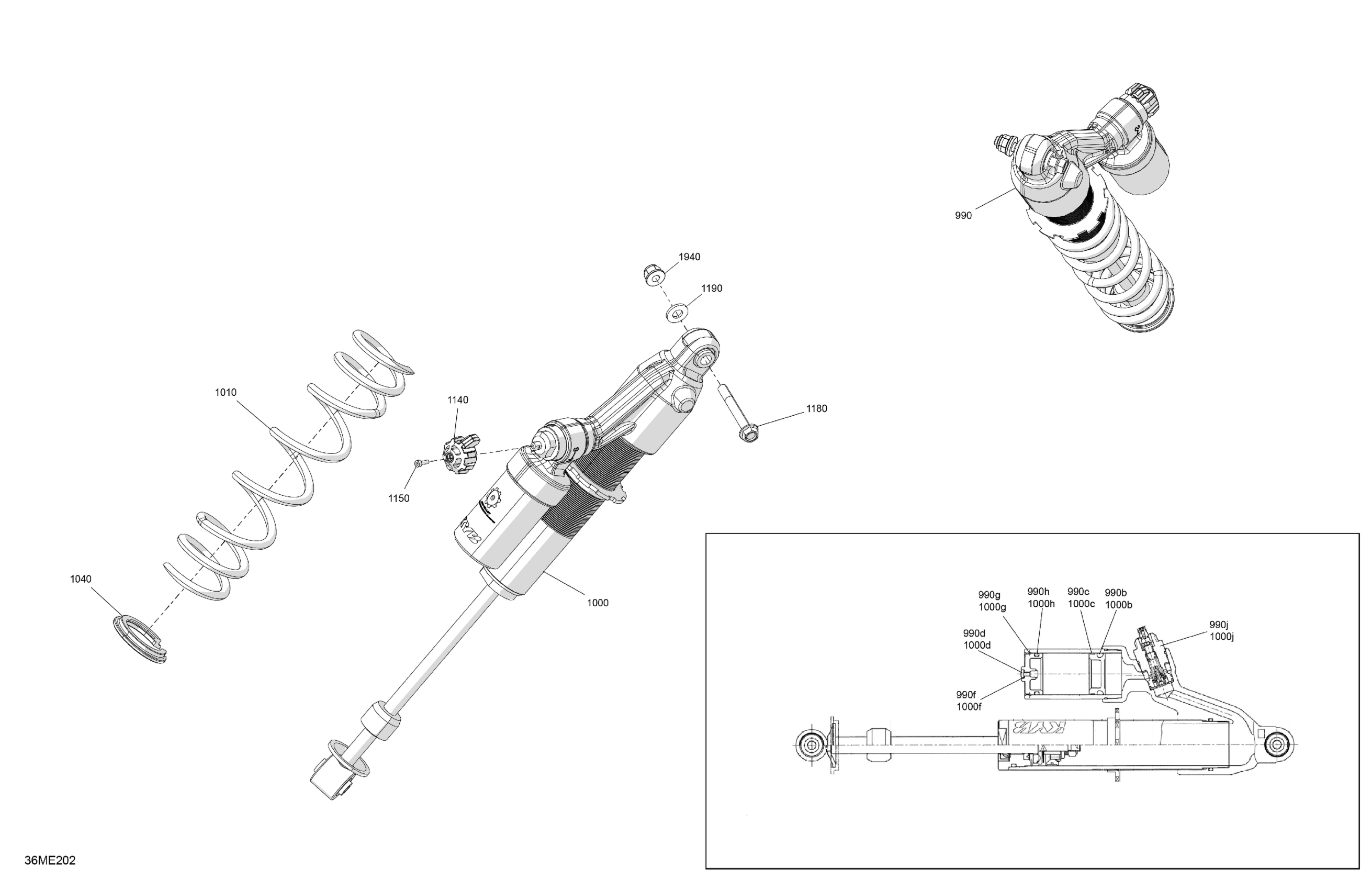

Ski-Doo FREERIDE - 850 E-TEC - 146 - VBSB - Flare Yellow HG - 146X15X2.5P Track - 2025 Suspension - Front Shock Diagram

Description

Price

990

RH Front Shock Absorber KYB PRO 40-3C | Includes 990 to 990j

505075558

$812.99

990b

O-Ring

415093807

$35.99

990c

Piston Ring | Not Shown

415093806

$16.86

990d

Screw | Not Shown

505070399

$4.12

990f

O-Ring

505070400

$4.54

990g

Circlip - Call your local BRP dealership

715900076

$4.12

990h

O-Ring

415093804

$4.54

990j

Valve

503195958

$98.99

1000

LH Front Shock Absorber PRO 40-3C | Includes 1000 to 1000j

505075559

$812.99

1000b

O-Ring

415093807

$35.99

1000c

Piston Ring | Not Shown

415093806

$16.86

1000d

Screw | Not Shown

505070399

$4.12

1000f

O-Ring

505070400

$4.54

1000g

Circlip - Call your local BRP dealership

715900076

$4.12

1000h

O-Ring

415093804

$4.54

1000j

Valve

503195958

$98.99

1010

Deep Black, Spring

505072760

$52.99

1040

Spring Stopper

503194270

$19.99

1140

Adjustment Button

503196209

$2.79

1150

Allen Screw M3 X 0.5 X 10

250000644

$2.11

1180

Hex. Flange Screw M8 X 58

250000824

$2.11

1190

Washer

503192494

$3.17

1940

Elastic Flange Nut M8

233281466

$1.01
