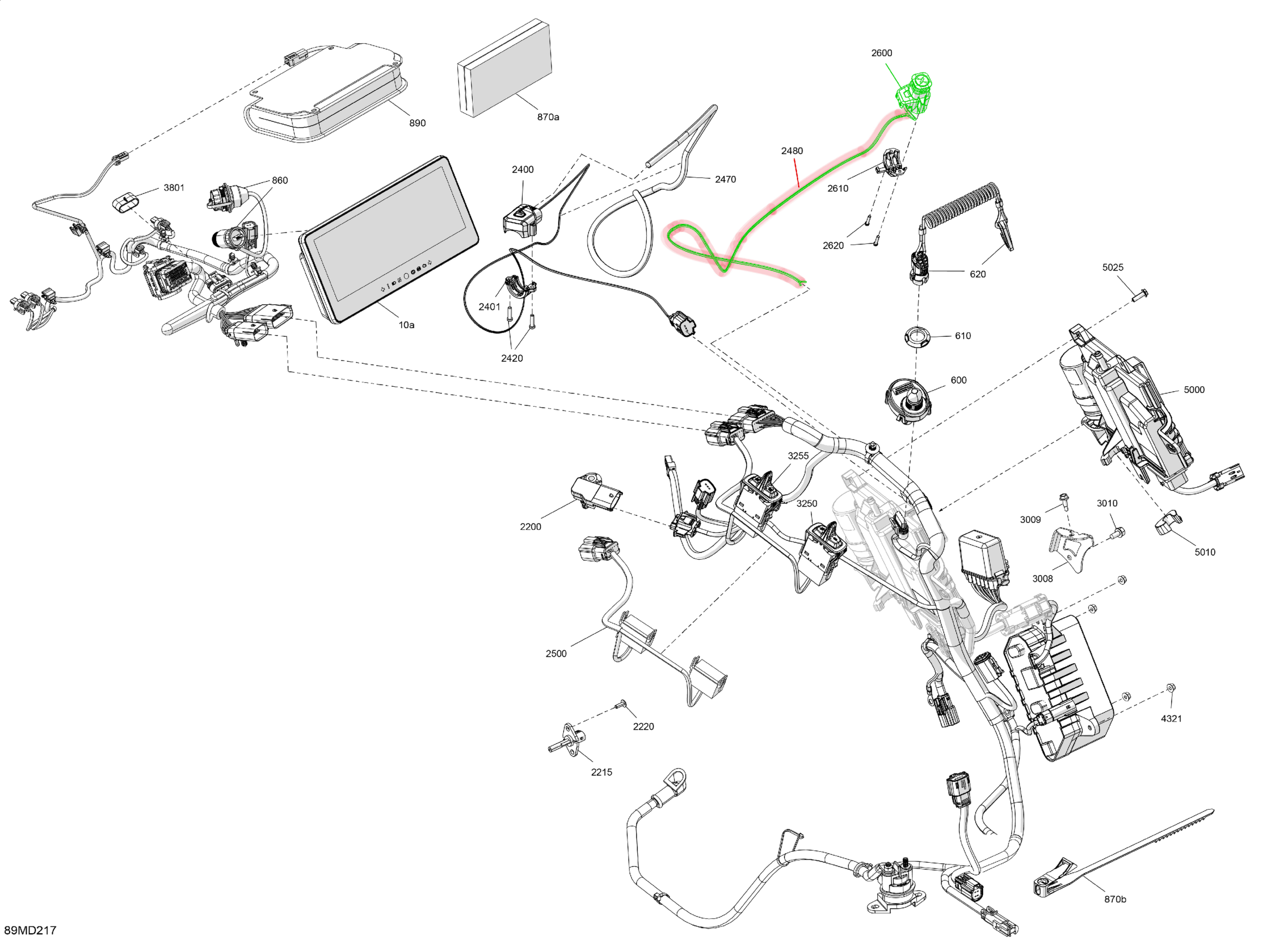

Ski-Doo North America - FREERIDE 850 E-TEC - 146 - VBRD - Neo Mint - 146X15X2.5P Track, 2024 08- Electric - Upper Section Diagram

Description

Price

10a

Multifunction Gauge 10

710009417

$2,049.99

600

Terminal DESS CAN | CARB Vehicle

710008832

$72.99

610

Specialized Nut

278004274

$3.28

620

Grey, Ski-Doo DESS Key

515179475

$84.99

860

USB Wiring Harness Ass'y

515179248

$78.99

870a

Sealed Compartment Foam

264000135

$12.99

870b

Mounting Clamp P

515179675

$4.15

890

NEEDS DESCRIPTION | Includes 890 to 890a This part replaces 515179904.

860202888

$106.49

2200

Pressure And Temperature Sensor

707000995

$88.99

2215

Air Temperature Sensor

515176366

$19.99

2220

Torx Truss PT K40 x 12

250001131

$2.11

2400

Ignition Switch

515179056

$69.99

2401

Clamp

515177952

$8.79

2420

Torx Screw

250000671

$1.01

2470

Braided Sleeve

415130141

$55.99

2480

Braided Sleeve

415130141

$55.99

2500

Console Wiring Harness

515179085

$76.99

2600

Emergency Stop Switch

515179472

$78.49

2610

Clamp

515179182

$9.19

2620

Screw PT. Socket T10 K30 X 16

250001201

$3.39

3008

Fuse Box Support

515179281

$33.99

3009

Hex. Flange Screw M5 X 16

250000911

$0.85

3010

Hex. Flange Screw M6 X 16

250001062

$1.57

3250

Switch Rocker Hand Warmer

515178462

$20.49

3255

Switch Rocker Headlignt

515178463

$20.49

3801

Plug

515179300

$8.79

4321

Hex. Flange Nut M5

233151414

$0.55

5000

ECM Module | Includes 5000a to 5000a2

515179354

$589.99

5010

Rubber Stopper

515178430

$2.11

5025

Hex. Flange Screw, Scotch Grip

207551634

$2.00
