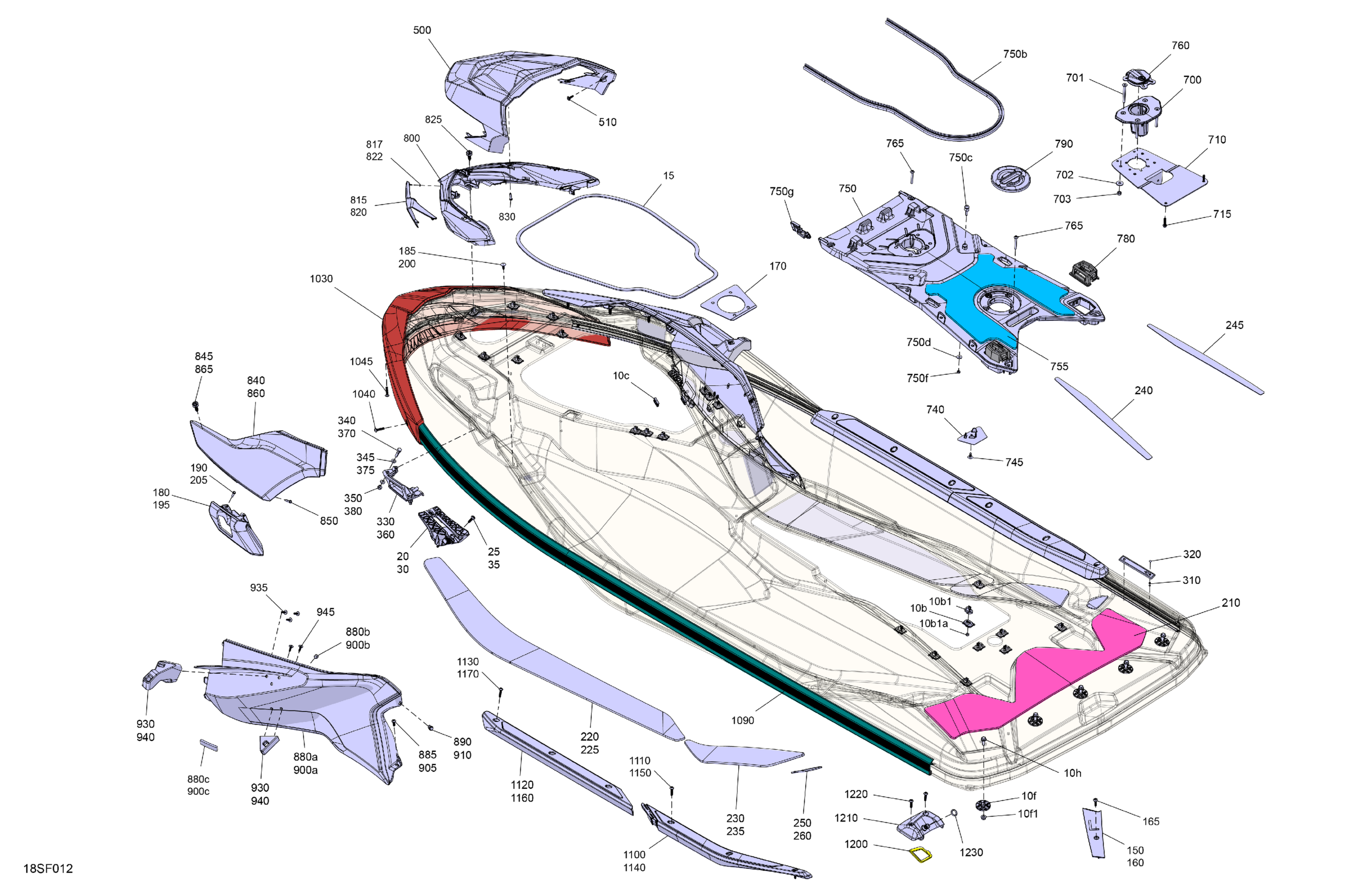

Sea-doo FISH PRO TROPHY - 170 - 19TB - Flint Grey - Audio, 2026 Body - System Diagram

Nut Housing M6 Ass'y | Includes 10b to 10b1a

291006093

$2.39

Housing Nut Overmolded | Includes 2060 to 2060a

291004662

$2.00

Elastic Stop Nut M6, Brass

232561200

$4.23

Anchorage Tie Wrap

293750109

$1.25

Housing Nut M8 | Includes 400a1m to 400a1m1

293450387

$7.09

Hex. Flange Nut M8

233181600

$1.05

Hex. Flange Screw M8 X 25

207682544

$1.35

Gasket

293250401

$12.11

LH Support

291004714

$10.99

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.66

RH Support

291004715

$12.49

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.66

LH Shim

291005176

$16.49

RH Shim

291005177

$16.49

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.66

Gasket

293250451

$23.99

LH Shell Cleat

291004661

$10.99

Black, Dart

293730011

$0.99

Hex. Screw 10-14 X 7/8”

211000023

$3.59

RH Shell Cleat

291004719

$10.99

Black, Dart

293730011

$0.99

Hex. Screw 10-14 X 7/8”

211000023

$3.59

Deck Anti Slip Mat

291005817

$51.99

Deep Black, LH Front Anti Slip Footrest Mat

291006841

$33.99

Deep Black, RH Front Anti Slip Footrest Mat

291006842

$33.99

LH Rear Anti Slip Mat

291005353

$17.20

RH Rear Anti Slip Mat

291005352

$17.20

LH Anti Slip Mat

291005916

$17.20

RH Anti Slip Mat

291005917

$17.20

LH Anti Slip Mat

291005883

$5.50

RH Anti Slip Mat

291005884

$5.50

Rivet 1/8"

293150016

$0.40

Black, Snap Cap

293000014

$1.09

LH Cleat

291004559

$9.79

Hex. Screw M8 X 35

207083560

$1.47

Stainless, Flat Washer 8 mm

234081600

$0.55

Hex. Elastic Nut M8 Brass

232581200

$2.22

RH Cleat

291004720

$9.79

Hex. Screw M8 X 35

207083560

$1.47

Stainless, Flat Washer 8 mm

234081600

$0.55

Hex. Elastic Nut M8 Brass

232581200

$2.22

Deep Black, Hood

291005579

$97.99

Flange Screw Plastite #10, 14 X 7/8"

250001087

$3.49

Lower Seat Anchorage

291005708

$46.99

Socket Screw, M8 X 75 RIE

250001197

$11.58

Flat Washer 8 mm, Stainless

234082600

$2.43

Hex. Elastic Nut M8 Brass

232581200

$2.22

Retaining Plate

291005641

$64.99

Hex. Flange Screw M6.81 X 30

243163060

$2.32

Hose Protector

291004941

$4.69

Black, Dart

293730011

$0.99

Access Cover Ass'y | Includes 750 to 750g

291005669

$229.99

Was 293200062 Seal

219704366

$76.49

Stud - Call your local BRP dealership This part replaces 291005183.

291005183

Unavailable

Flat Washer M6, Stainless

234062600

$0.77

Elastic Stop Nut M6, Brass

232561200

$4.23

Seal

291004717

$12.99

Deep Black, Rear Mat

291005861

$39.99

Panel Cap

291005698

$7.49

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$4.44

Linq Bases Kit

295100858

$13.30

Access Cap Ass'y

291004481

$10.99

Front Hood Grille

291005915

$35.99

Orange Crush, LH Trim

291005968

$28.99

Push Nut

250100206

$1.01

Orange Crush, RH Trim

291005969

$28.99

Push Nut

250100206

$1.01

Dard

293730071

$1.15

Hex. Screw 10-14 X 7/8”

211000023

$3.59

Coastal Gray, LH Front Body Panel

291005774

$164.99

Dard

293730071

$1.15

Hex. Screw 10-14 X 7/8”

211000023

$3.59

Coastal Gray, RH Front Body Panel

291005775

$164.99

Dard

293730071

$1.15

Coastal Gray, LH Central Body Panel

291005769

$164.99

Rubber Bumper

293830005

$8.09

Stopper

278003618

$0.74

Screw-Plastite Torx Hd.M6.81X20

250001206

$2.54

Tuflok Plastic Rivet

293150230

$1.47

Coastal Gray, RH Central Body Panel

291005772

$164.99

Rubber Bumper

293830005

$8.09

Stopper

278003618

$0.74

Screw-Plastite Torx Hd.M6.81X20

250001206

$2.54

Tuflok Plastic Rivet

293150230

$1.47

LH Rod Holder Top Adapter

295100948

$31.99

Flange Screw Plastite #10, 14 X 7/8"

250001087

$3.49

RH Rod Holder Top Adapter

295100949

$31.99

Flange Screw Plastite #10, 14 X 7/8"

250001087

$3.49

Front Bumper

291004452

$77.49

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.11

Lateral Bumper

291006726

$142.99

Orange Crush, LH Rear Footrest Ass'y

291005909

$61.99

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.66

Orange Crush, LH Front Footrest Ass'y

291005907

$61.99

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.66

Orange Crush, RH Rear Footrest Ass'y

291005905

$61.99

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.66

Orange Crush, RH Front Footrest Ass'y

291005903

$61.99

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.66

Gasket

291005694

$5.82

Trim Support

291006092

$14.99

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.66

O-RING - Call your local BRP dealership

293300137

Unavailable
