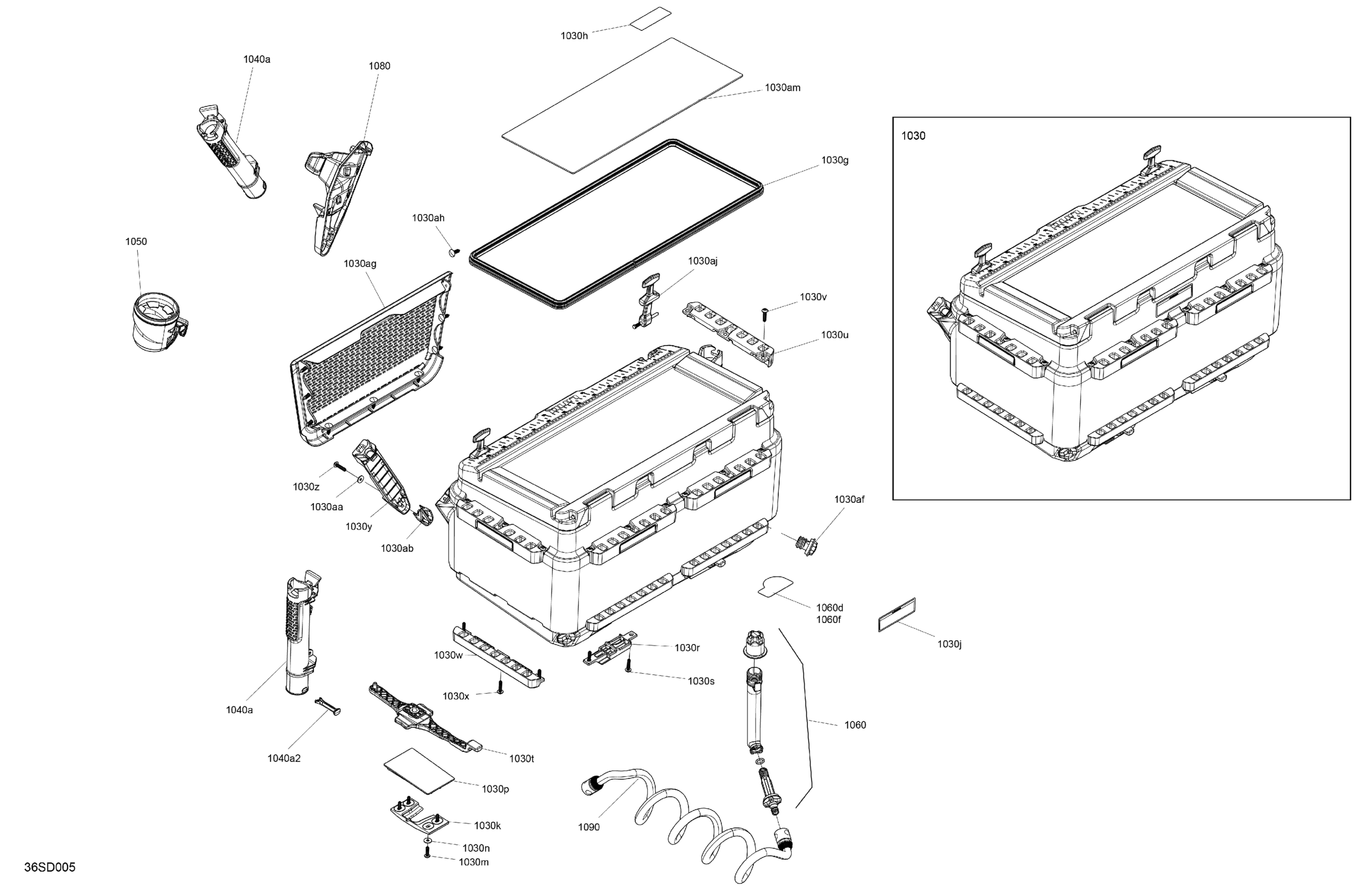

Sea-doo FISH PRO TROPHY 170 - 19RG - FishT package - Flint Grey - Audio,2024 Miscellaneous - Utilities Diagram

Description

Price

1030

Cooler Ass'y | Includes 1030 to 1030am

269801151

$809.99

1030g

Cover Gasket

269801261

$48.99

1030h

Warning Decal

219905522

Unavailable

1030j

Warning Decal

219905521

Unavailable

1030k

Under Cargo Anchorage

269800824

$8.79

1030m

Torx Screw Plastite M6

250000466

$6.98

1030n

Flat Washer M6, Stainless

234062600

$0.77

1030p

Cooler Reinforcement

269800832

$11.99

1030r

Plate Stop

269800825

$19.99

1030s

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

1030t

Lever Latch

269800826

$30.99

1030u

Upper Rail

269800827

$9.79

1030v

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

1030w

Lower Rail

269800830

$9.79

1030x

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

1030y

Front Upper Rail

269800831

$9.79

1030z

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

1030aa

Stainless Steel Flat Washer

234062670

$2.11

1030ab

Front Lower Rail

269800848

$9.79

1030af

Drain Plug Ass'y

269800833

$28.99

1030ag

Net Cargo

269800829

$88.99

1030ah

Black Dart

293730083

$4.79

1030aj

Lid Latch

520002067

$7.59

1030am

Anti Slip Mat

269800828

$30.49

1040a

Orange Crush, Rod Holder Ass'y | Includes 1040a to 1040a2

269801239

$71.99

1040a2

Rod Stopper

269800838

$4.99

1050

Orange Crush, Cup Holder Support KIt | Includes 1050 to 1050a1

269801449

$37.99

1060

Livewell Kit

269801483

$38.49

1060d

Vivier Fillin Label Notice

219906005

Unavailable

1060f

Vivier Drain Label Notice

219906006

Unavailable

1080

Accessory Support Kit

269801231

$38.99

1090

Hose Ass'y | Includes 2050 to 2050b

269801202

$94.99

1110a

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30
