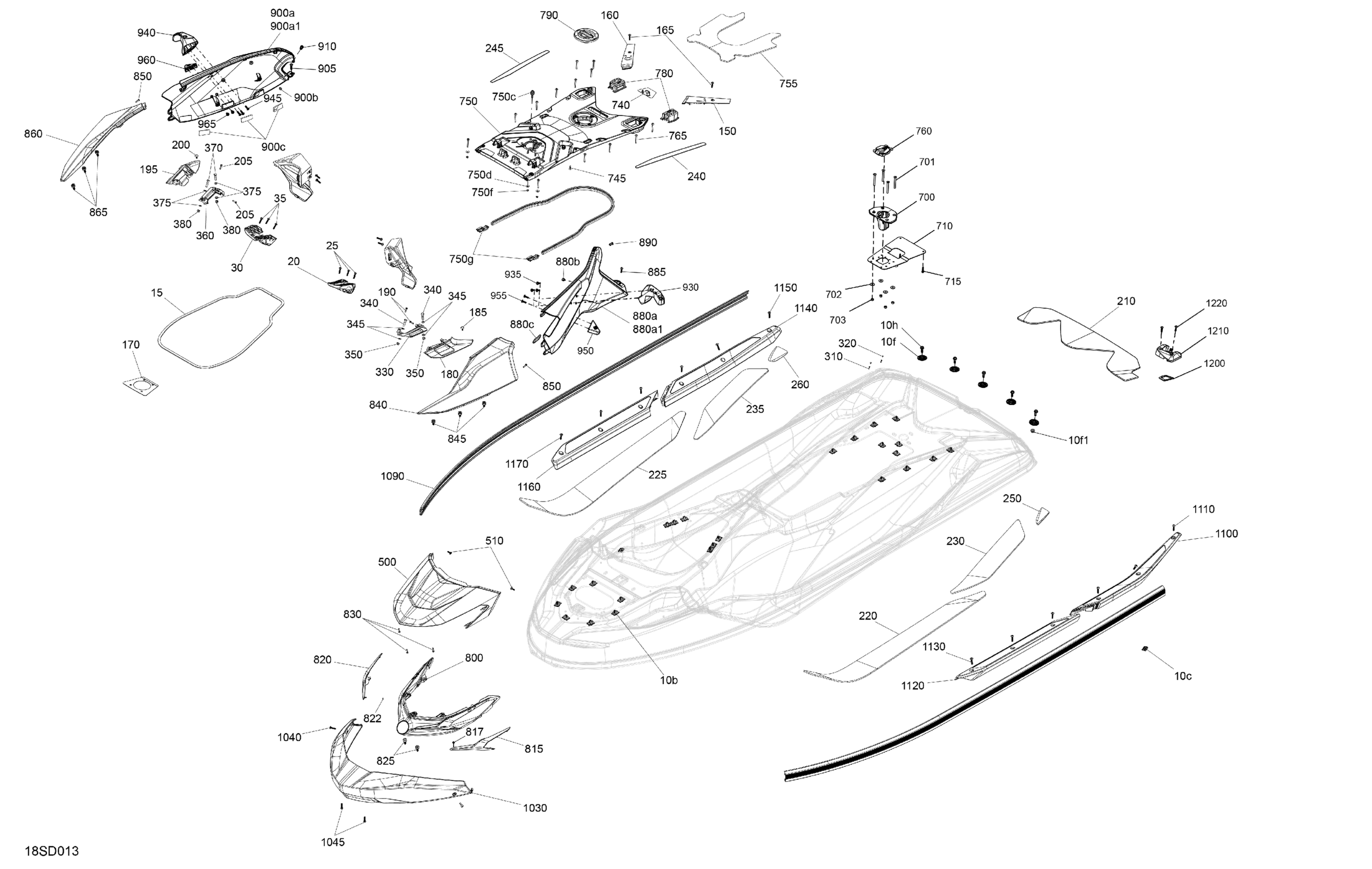

Sea-doo FISH PRO TROPHY 170 - 19RG - FishT package - Flint Grey - Audio,2024 Body - System Diagram

#

Description
Price

10b

Nut Housing M6 Ass'y | Includes 10b to 10b1a

291006093

$2.15

10c

Anchorage Tie Wrap

293750109

$0.99

10f

Housing Nut M8 | Includes 400a1m to 400a1m1

293450387

$6.58

10f1

Hex. Flange Nut M8

233181600

$0.99

10h

Hex. Flange Screw M8 X 25

207682544

$1.03

15

Gasket

293250401

$10.10

20

LH Support

291004714

$8.21

25

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.45

30

RH Support

291004715

$9.03

35

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.45

150

LH Shim

291005176

$13.52

160

RH Shim

291005177

$13.52

165

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.45

170

Gasket

293250451

$22.36

180

LH Shell Cleat

291004661

$8.21

185

Black, Dart

293730011

$0.91

190

Hex. Screw 10-14 X 7/8”

211000023

$3.34

195

RH Shell Cleat

291004719

$8.21

200

Black, Dart

293730011

$0.91

205

Hex. Screw 10-14 X 7/8”

211000023

$3.34

210

Deck Anti Slip Mat

291005817

$48.48

220

LH Front Anti Slip Mat

291005351

$31.31

225

RH Front Anti Slip Mat

291005350

$31.31

230

LH Rear Anti Slip Mat

291005353

$15.64

235

RH Rear Anti Slip Mat

291005352

$15.64

240

LH Anti Slip Mat

291005916

$15.64

245

RH Anti Slip Mat

291005917

$15.64

250

LH Anti Slip Mat

291005883

$5.07

260

RH Anti Slip Mat

291005884

$5.07

310

Rivet 1/8"

293150016

$0.33

320

Black, Snap Cap

293000014

$0.97

330

LH Cleat

291004559

$7.31

340

Hex. Screw M8 X 35

207083560

$1.40

345

Stainless, Flat Washer 8 mm

234081600

$0.52

350

Hex. Elastic Nut M8 Brass

232581200

$1.48

360

RH Cleat

291004720

$7.31

370

Hex. Screw M8 X 35

207083560

$1.40

375

Stainless, Flat Washer 8 mm

234081600

$0.52

380

Hex. Elastic Nut M8 Brass

232581200

$1.48

500

Deep Black, Hood

291005579

$87.28

510

Flange Screw Plastite #10, 14 X 7/8"

250001087

$3.31

700

Lower Seat Anchorage

291005708

$41.76

701

Socket Screw, M8 X 75 RIE

250001197

$9.82

702

Flat Washer 8 mm, Stainless

234082600

$2.27

703

Hex. Elastic Nut M8 Brass

232581200

$1.48

710

Retaining Plate

291005641

$58.18

715

Hex. Flange Screw M6.81 X 30

243163060

$2.18

740

Hose Protector

291004941

$4.22

745

Black, Dart

293730011

$0.91

750

Access Cover Ass'y | Includes 750 to 750g

291005669

$206.69

750c

Stud - Call your local BRP dealership This part replaces 291005183.

291005183

Unavailable

750d

Flat Washer M6, Stainless

234062600

$0.73

750f

Elastic Stop Nut M6, Brass

232561200

$4.03

750g

Seal

291004717

$10.37

755

Deep Black, Rear Mat

291005861

$36.54

760

Panel Cap

291005698

$6.69

765

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.82

780

Linq Bases Kit

295100858

$24.60

790

Access Cap Ass'y

291004481

$8.21

800

Front Hood Grille

291005915

$32.06

815

Orange Crush, LH Trim

291005968

$25.34

817

Push Nut

250100206

$0.96

820

Orange Crush, RH Trim

291005969

$25.34

822

Push Nut

250100206

$0.96

825

Dard

293730071

$1.03

830

Hex. Screw 10-14 X 7/8”

211000023

$3.34

840

Coastal Gray, LH Front Body Panel

291005774

$148.48

845

Dard

293730071

$1.03

850

Hex. Screw 10-14 X 7/8”

211000023

$3.34

860

Coastal Gray, RH Front Body Panel

291005775

$148.48

865

Dard

293730071

$1.03

880a

Coastal Gray, LH Central Body Panel

291005769

$148.48

880a1

Coastal Gray, LH Central Body Panel

291005770

$148.48

880b

Rubber Bumper

293830005

$6.12

880c

Stopper

278003860

$0.70

885

Screw-Plastite Torx Hd.M6.81X20

250001206

$2.43

890

Tuflok Plastic Rivet

293150230

$1.39

900a

Coastal Gray, RH Central Body Panel

291005772

$148.48

900a1

Coastal Gray, RH Central Body Panel

291005773

$148.48

900b

Rubber Bumper

293830005

$6.12

900c

Stopper

278003860

$0.70

905

Screw-Plastite Torx Hd.M6.81X20

250001206

$2.43

910

Tuflok Plastic Rivet

293150230

$1.39

930

LH Rod Holder Top Adapter

295100948

$30.57

935

Flange Screw Plastite #10, 14 X 7/8"

250001087

$3.31

940

RH Rod Holder Top Adapter

295100949

$30.57

945

Flange Screw Plastite #10, 14 X 7/8"

250001087

$3.31

950

LH Rod Holder Top Adapter

295100948

$30.57

955

Flange Screw Plastite #10, 14 X 7/8"

250001087

$3.31

960

RH Rod Holder Top Adapter

295100949

$30.57

965

Flange Screw Plastite #10, 14 X 7/8"

250001087

$3.31

1030

Front Bumper

291004452

$71.61

1040

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.85

1045

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.00

1090

Bumper 2775±25mm

291004468

$129.82

1100

Orange Crush, LH Rear Footrest Ass'y

291005909

$55.19

1110

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.45

1120

Orange Crush, LH Front Footrest Ass'y

291005907

$55.19

1130

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.45

1140

Orange Crush, RH Rear Footrest Ass'y

291005905

$55.19

1150

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.45

1160

Orange Crush, RH Front Footrest Ass'y

291005903

$55.19

1170

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.45

1200

Gasket

291005694

$5.39

1210

Trim Support

291006092

$13.28

1220

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.45
