07- Body - Front Cover

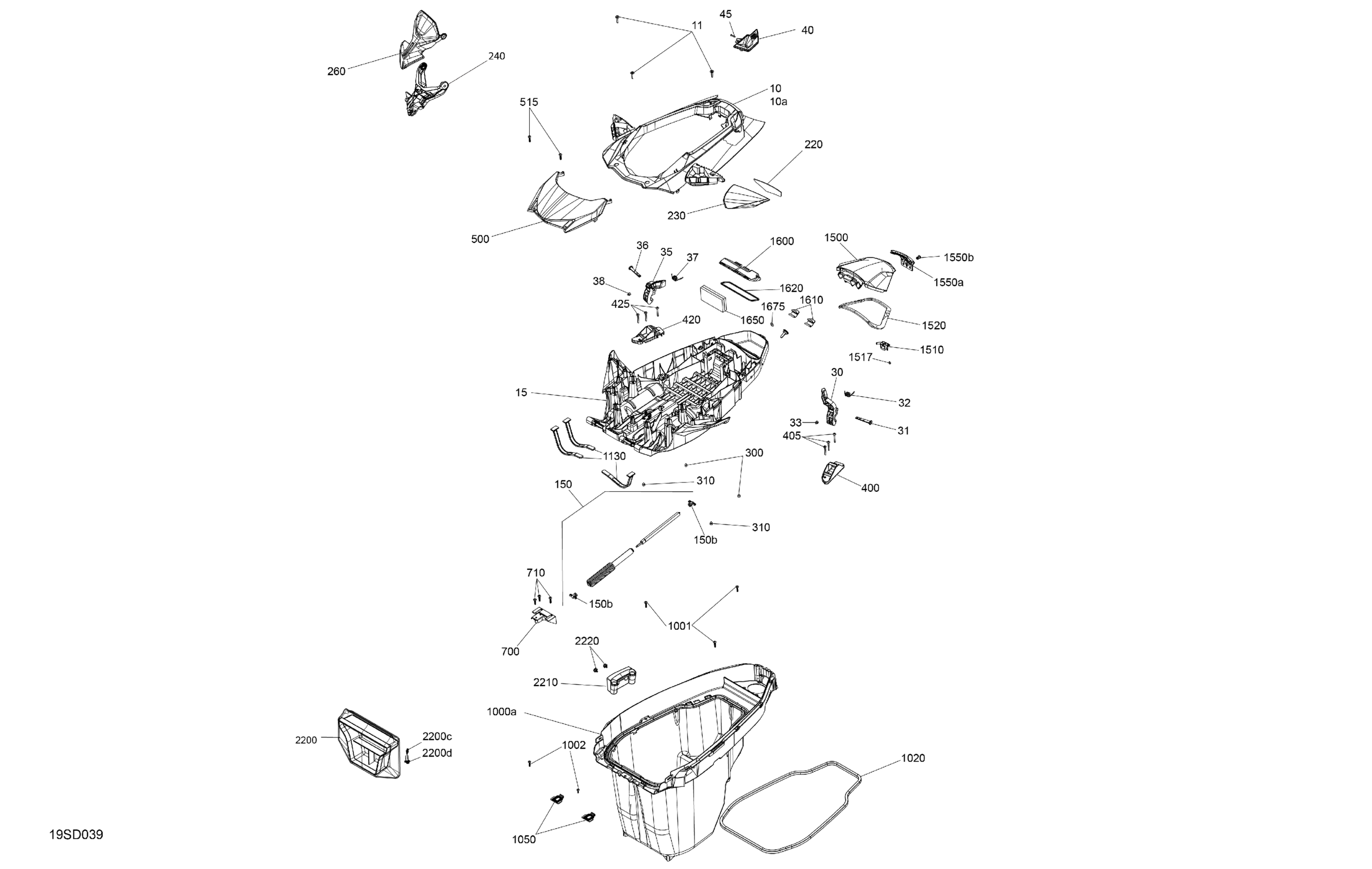

Sea-doo North America - FISH PRO TROPHY 170 - 19RG - FishT package - Flint Grey - Audio,2024 07- Body - Front Cover Diagram
#
10
Perforated Upper Hood | Includes 10 to 10a
269502481
$199.99
10a
Outer Skin
269502394
$204.99
11
Hexagonal Cap Screw M6 X35
250000399
$4.44
15
Inner Skin
269502555
$169.99
30
LH Latch
269502267
$30.99
31
Pin
269502536
$18.49
32
Latch Spring
269502268
$26.99
33
Rubber Bumper
293830005
$8.09
35
RH Latch
269502299
$30.99
36
Pin
269502536
$18.49
37
Latch Spring
269502268
$26.99
38
Rubber Bumper
293830005
$8.09
40
Switch Support
277002323
$22.99
45
Plastite Torx Screw #10 X 7/8"
250001196
$4.61
150
Shock Absorber Assembly | Includes 150 to 150b
269502426
$99.99
150b
Shock Absorber End Fitting
269501984
$11.49
220
LH Mirror Glass
269502274
$88.99
230
Deep Black, LH Mirror Cover
269502427
$55.99
240
Echo Sounder Support
269502551
$229.99
260
Deep Black, Echosounder Deflector
269502375
$110.99
300
Rubber Bumper
293830005
$8.09
310
Rubber Bumper
293830005
$8.09
400
LH Latch Base
269502385
$18.99
405
Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270
250000827
$4.44
420
RH Latch Base
269502386
$18.99
425
Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270
250000827
$4.44
500
Deep Black, Upper Hood
269502446
$124.99
515
Plastite Screw Torx Cone HD.M6.81X3
250001138
$2.30
700
Shock Base
269502282
$25.99
710
Plastite Torx Screw M6.81X30 | Not Shown
250000879
$2.11
1000a
Bin Compartment
264000144
$124.99
1001
Plastite Screw Torx Cone HD.M6.81X3
250001138
$2.30
1002
Plastite Torx Screw M6.81X30 | Not Shown
250000879
$2.11
1020
Gasket
293250478
$13.49
1050
Adjustment Hook
269502325
$10.99
1130
Strap
269502493
$14.30
1500
Glove Box Door
264000132
$65.99
1510
Glove Box Latch
264000133
$21.99
1517
Screw K40 X 10
250001119
$2.40
1520
Cover Gasket
293250717
$29.99
1550a
Glove Box Trim
269502538
$19.49
1550b
Tuflok Plastic Rivet
293150230
$1.47
1600
Box Cover
264000158
$14.49
1610
Clip
269501718
$15.89
1620
Gasket
293250591
$17.99
1650
Sealed Compartment Foam
264000135
$12.99
1675
Vent Membrane
264000137
$12.99
2200
Rear Bin Organiser Ass'y | Includes 2200 to 2200d
295100836
$83.99
2200c
Flange Torx Screw K40 X 25
250001092
$3.70
2200d
Flat Washer 4 mm, Stainless
234042600
$1.15
2210
Backrest Support
269801183
$18.49
2220
Rivet | Model-T3
293150067
$2.89
