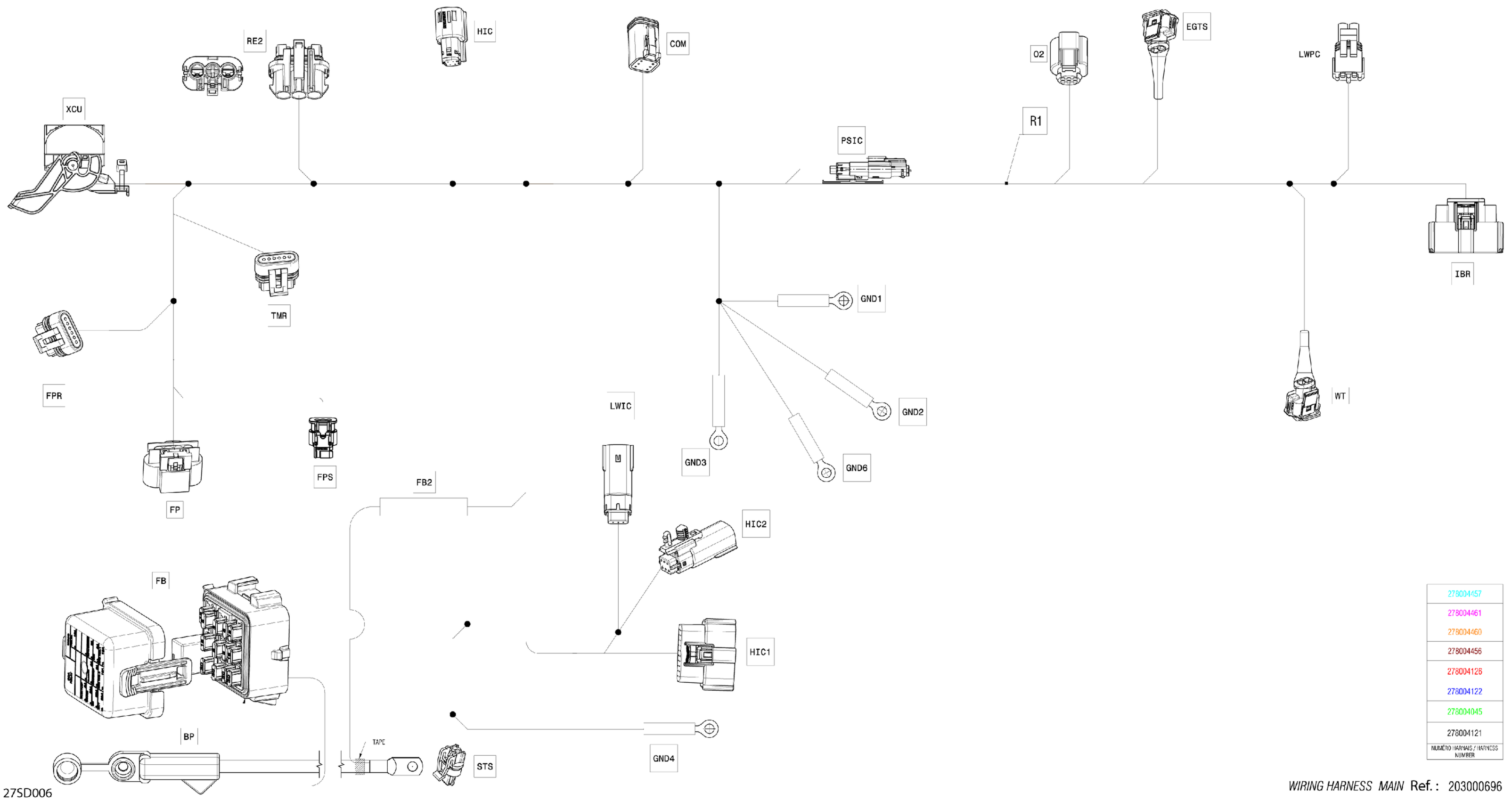

Sea-doo FISH PRO TROPHY 170 - 19RG - FishT package - Flint Grey - Audio,2024 Electric - Main Harness - 278004126 Diagram

#

Description
Price

1000

Main Wiring Harness

278004126

$662.66

BP

Battery Cable

278004036

$66.39

COM

Female Housing 6 Circuits

710002706

$18.63

COM

Lock

710002705

$4.15

COM

Female Terminal

710005438

$3.88

COM

Female Terminal

710005439

$4.15

EGTS

RUBBER CAP - Call your local BRP dealership

278001484

Unavailable

EGTS

Housing

710001136

$12.01

EGTS

Seal

415128501

$1.73

EGTS

Female Terminal

710001137

$4.28

FB

Fuse Cover

278003879

$4.22

FB

Little Fuse, 4 Amps

710007051

$26.84

FB

Little Fuse, 4 Amps

710007051

$26.84

FB

Little Fuse, 5 Amperes

710000742

$8.31

FB

Little Fuse, 5 Amperes

710000742

$8.31

FB

Little Fuse, 5 Amperes

710000742

$8.31

FB

Little Fuse, 5 Amperes

710000742

$8.31

FB

Little Fuse, 15 Ampere

710000745

$7.78

FB

Little Fuse, 15 Ampere

710000745

$7.78

FB

Little Fuse, 15 Ampere

710000745

$7.78

FB

Little Fuse, 15 Ampere

710000745

$7.78

FB

Little Fuse, 30 Amperes

710000747

$7.78

FB

Little Fuse, 30 Amperes

710000747

$7.78

FB

Little Fuse, 30 Amperes

710000747

$7.78

FB

Fuse Base Ass'y

278003448

$30.57

FB

Seal Plug

278002880

$6.24

FB

Relay 30 Amp

278003828

$11.22

FB

Relay

715900824

$18.63

FB

Wire Seal

278000218

$4.00

FB

Wire Seal

710000048

$5.85

FB

Wire Seal

278001065

$5.85

FB

Female Terminal

710000918

$5.85

FB

Female Terminal

278002578

$0.99

FB

Female Terminal

515177177

$4.96

FB2

50A Fuse

710007318

$21.61

FB2

Shrink Tubing

710004230

Unavailable

FB2

Fuse Holder Support

710007204

$9.48

FB2

Elastic Stop Nut M5

232551414

$0.82

FB2

Terminal Ring

515177799

$8.31

FB2

Phillips Screw M5 X 12 | Not Shown

208651200

$2.09

FB2

Adhesive Tape

710001767

Unavailable

FP

Male Housing, 4 Circuits

278002185

$6.73

FP

Lock

710001222

$1.93

FP

Wire Seal

278002186

$5.18

FP

Female Terminal

278002187

$5.79

GND1

Open Barrel

278000992

$2.06

GND2

Open Barrel Terminal

278001392

$4.00

GND3

Open Barrel Terminal

278001392

$4.00

GND4

Open Barrel

278000992

$2.06

GND6

Open Barrel

278000992

$2.06

HIC

Female Housing, 4 circuits

278003535

$24.60

HIC

Female Terminal

515178018

$0.90

HIC1

Female Housing 20 Circuits

278002858

$22.98

HIC1

Sealing Cap

278002860

$1.63

HIC1

Female Terminal

515178018

$0.90

HIC1

Female Terminal

515178014

$2.21

HIC2

Clip Connector

515178223

$1.87

HIC2

Housing 6 Circuits

278003866

$12.70

HIC2

Male Terminal

515178013

$2.93

IBR

Female Housing ,16 Circuits

278003484

$16.39

IBR

Seal Plug

278002880

$6.24

IBR

Sealing Cap

278002860

$1.63

IBR

Seal

278003046

$0.85

IBR

Female Terminal

278003045

$2.69

IBR

Female Terminal

515178018

$0.90

LWIC

Housing

515178023

$12.60

LWIC

Male Terminal

515178013

$2.93

LWPC

Male Connector, 2 Circuits

278000220

$12.66

LWPC

Wire Seal

278000218

$4.00

LWPC

Female Terminal

409007300

$0.42

PSIC

Clip

278003549

$2.01

PSIC

Housing

515178023

$12.60

PSIC

Housing

515178954

$34.30

PSIC

Sealing Cap

278002860

$1.63

PSIC

Male Terminal

515178013

$2.93

R1

Shrink Tubing, 6 mm

515177246

$0.99

R1

Resistor

710000700

$29.82

RE2

Female Housing, 3 Circuits

710000879

$24.60

RE2

Seal

710001932

$3.06

RE2

Seal

278003685

$13.40

RE2

Terminal

710001934

$5.18

STS

Female Housing, 2 Circuits

515177192

$7.25

STS

Wire Seal

710001163

$5.85

STS

Female Terminal

710001164

$6.79

TMR

Female Terminal Housing 6 Circuits

278002299

$8.58

TMR

Plug

515175812

$1.96

TMR

Female Terminal

278001114

$2.93

WT

RUBBER CAP - Call your local BRP dealership

278001484

Unavailable

WT

Housing

710001136

$12.01

WT

Seal

415128501

$1.73

WT

Female Terminal

710001137

$4.28

XCU_A

Cover

515178601

$16.39

XCU_A

Housing 56 Circuits

515178595

$27.58

XCU_A

Plate

515178604

$4.16

XCU_A

Plug

515178599

$2.99

XCU_A

Plug

515178600

$2.99

XCU_A

Plate

515178603

$4.16

XCU_A

Terminal

515178596

$3.79

XCU_A

Terminal

515178598

$3.69

XCU_A

Terminal

515178666

$4.19
