Description

Price

150

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$118.92

151

Hex. Flange Screw K50 X 25

250000680

$1.67

200

Starter Relay

278003012

$35.07

340

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$126.07

340a

Battery Bolt Kit

250000282

$2.95

380

Pop Rivet 3/16"

293150123

$3.43

410

Battery Support

278003473

$22.72

420

Fuel Tank Strap

293850095

$14.27

850

Elastic Stop Nut M6, Brass

232561200

$3.51

1020

USB Charger Cable Ass'y | Includes 1020 to 1020b

295100710

$140.37

1020a

Connector USB wih Cable

710005857

$38.78

1025

USB Charger Cable Ass'y | Includes 1020 to 1020b

295100710

$140.37

1026

USB Charger Cable Ass'y | Includes 1020 to 1020b

295100710

$140.37

1028

Hexagonal Cap Screw M6 X35

250000399

$3.61

1040

Ground Battery Cable

278003451

$31.17

1050

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

1060

Stainless Flat Washer M6

234061600

$0.25

1070

Starter Cable

278003369

$31.17

1080

Elastic Stop Nut M6, Brass

232561200

$3.51

1090

Stainless Flat Washer M6

234061600

$0.25

1190

LH Throttle Sensor

278002284

$108.18

1320

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

1340

Stainless Flat Washer M6

234061600

$0.25

1530

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

1540

Elastic Stop Nut M6, Brass

232561200

$3.51

1550

Stainless Flat Washer M6

234061600

$0.25

1580

Retainer

278003564

$6.57

1585

Clip Connector

515178223

$1.63

1600

Full Size Multifunction Mono Gauge

278003432

$729.07

1650

Throttle Position Sensor

278002283

$94.22

1700

Switch

278003821

$101.37

1710

RH Switch Keypad

278003474

$101.37

1731

Switch Start/Stop This part replaces 278002676.

278002676

Unavailable

1735

Terminal DESS CAN | CARB Vehicle

710008832

$60.42

1740

Specialized Nut

278004274

$2.72

1760

Hex. Screw 10-14 X 7/8”

211000023

$2.91

3000

GPS Receiver

278004784

$1,074.99

3010

Echosounder Power Supply Harness

278003673

$74.07

3030

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

3040

Mount Dart

710008294

$0.99

3050

Transducer | Includes 103000 to 103000a

278003914

$349.99

3050a

Seal

292002447

$2.63

3060

Transducer Harness

278003683

$86.42

8010

Safety Lanyard Ass'y, RFID

278003400

$58.47

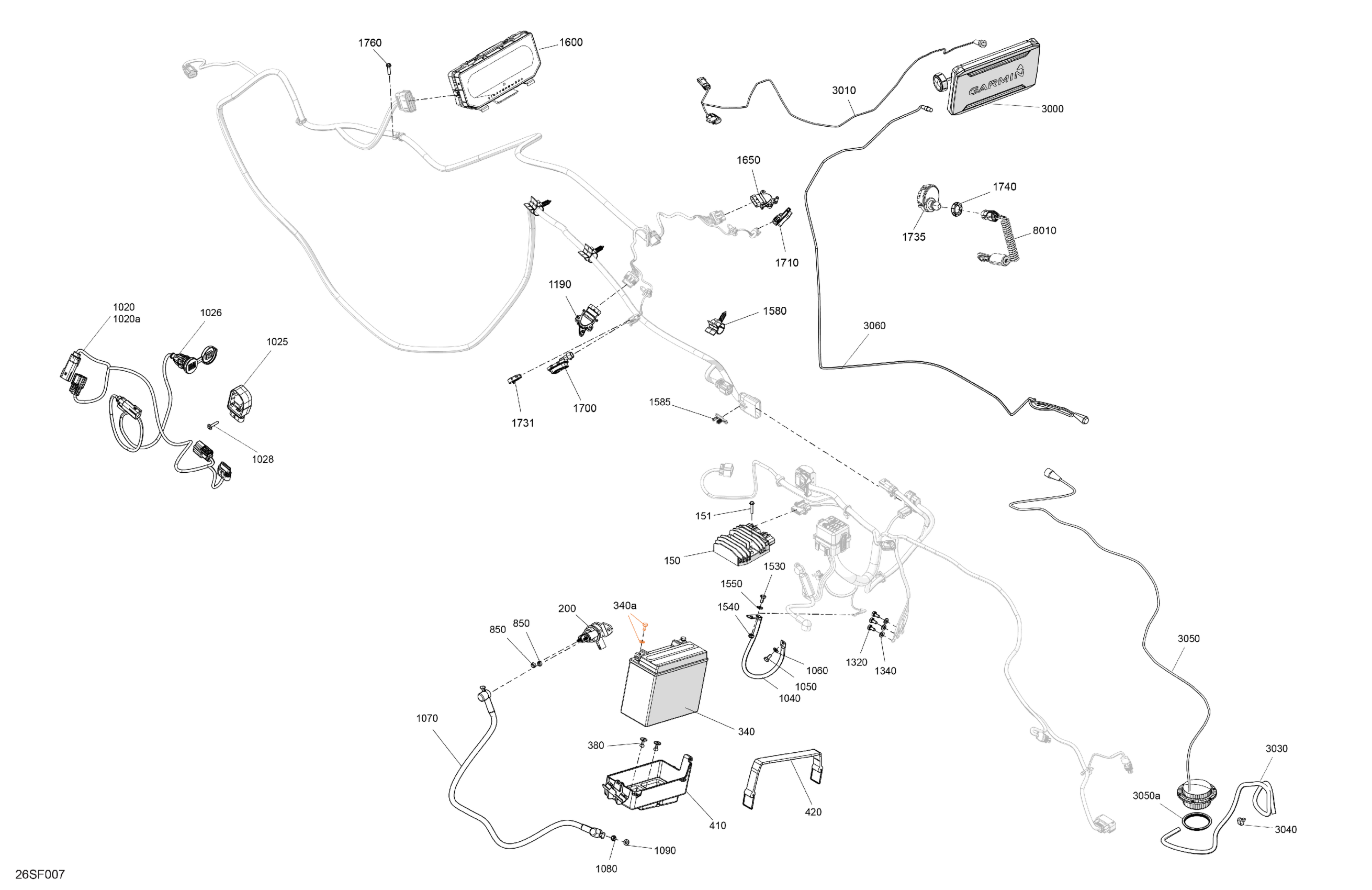

Sea-doo FISH PRO SPORT - 170 - 18TA - Bright White, 2026 Electric - System Diagram

Voltage Regulator | For replacement, refer to service bulletin 2005-5

Hex. Flange Screw K50 X 25

Starter Relay

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

Battery Bolt Kit

Pop Rivet 3/16"

Battery Support

Fuel Tank Strap

Elastic Stop Nut M6, Brass

USB Charger Cable Ass'y | Includes 1020 to 1020b

Connector USB wih Cable

USB Charger Cable Ass'y | Includes 1020 to 1020b

USB Charger Cable Ass'y | Includes 1020 to 1020b

Hexagonal Cap Screw M6 X35

Ground Battery Cable

Hex. Screw M6 X 12, Scotch Grip

Stainless Flat Washer M6

Starter Cable

Elastic Stop Nut M6, Brass

Stainless Flat Washer M6

LH Throttle Sensor

Hex. Screw M6 X 12, Scotch Grip

Stainless Flat Washer M6

Hex. Screw M6 X 12, Scotch Grip

Elastic Stop Nut M6, Brass

Stainless Flat Washer M6

Retainer

Clip Connector

Full Size Multifunction Mono Gauge

Throttle Position Sensor

Switch

RH Switch Keypad

Switch Start/Stop This part replaces 278002676.

Terminal DESS CAN | CARB Vehicle

Specialized Nut

Hex. Screw 10-14 X 7/8”

GPS Receiver

Echosounder Power Supply Harness

Polyurethane Hose 4000MM Long | Includes 250 to 250a

Mount Dart

Transducer | Includes 103000 to 103000a

Seal

Transducer Harness

Safety Lanyard Ass'y, RFID
