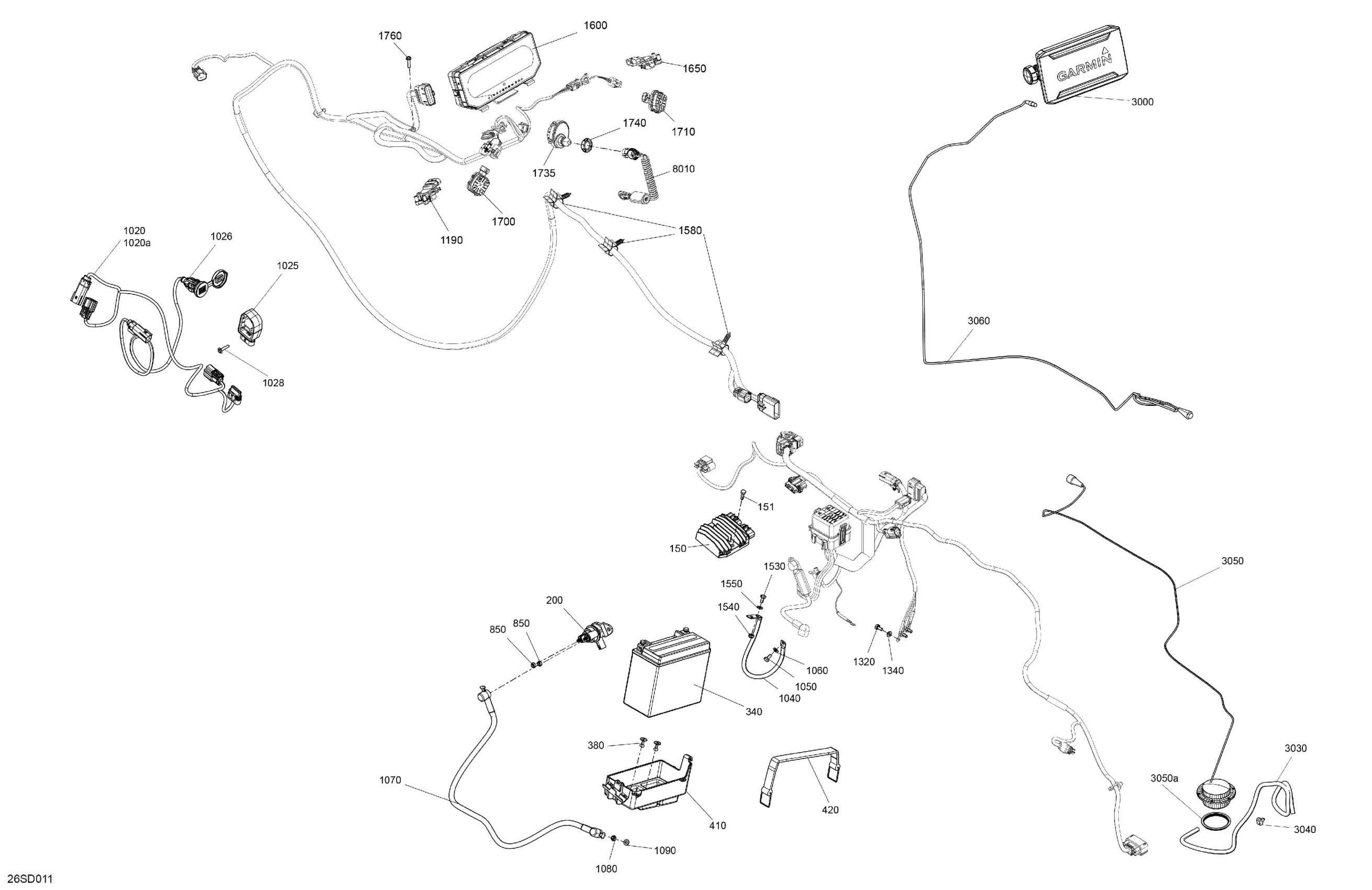

Sea-doo North America - FISH PRO SPORT 170 - 18RA - Fish package - Gulfstream Blue,2024 08- Electric - System Diagram

Description

Price

150

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$142.99

151

Hex. Flange Screw K50 X 25

250000680

$1.89

200

Starter Relay

278003012

$42.49

340

Battery 12 Volt 18AH

296000449

$92.28

380

Pop Rivet 3/16"

293150123

$4.29

410

Battery Support

278003473

$28.99

420

Fuel Tank Strap

293850095

$19.99

850

Elastic Stop Nut M6, Brass

232561200

$4.23

1020

USB Charger Cable Ass'y | Includes 1020 to 1020b

295100710

$149.99

1020a

Connector USB wih Cable

710005857

$41.49

1025

USB Charger Cable Ass'y | Includes 1020 to 1020b

295100710

$149.99

1026

USB Charger Cable Ass'y | Includes 1020 to 1020b

295100710

$149.99

1028

Hexagonal Cap Screw M6 X35

250000399

$4.44

1040

Ground Battery Cable

278003451

$39.99

1050

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

1060

Stainless Flat Washer M6

234061600

$0.33

1070

Starter Cable

278003369

$39.99

1080

Elastic Stop Nut M6, Brass

232561200

$4.23

1090

Stainless Flat Washer M6

234061600

$0.33

1190

LH Throttle Sensor

278002284

$119.99

1320

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

1340

Stainless Flat Washer M6

234061600

$0.33

1530

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

1540

Elastic Stop Nut M6, Brass

232561200

$4.23

1550

Stainless Flat Washer M6

234061600

$0.33

1580

Retainer

278003564

$8.39

1600

Full Size Multifunction Mono Gauge

278003432

$819.99

1650

Throttle Position Sensor

278002283

$119.99

1700

Switch

278003821

$126.99

1710

RH Switch Keypad

278003474

$126.99

1731

Start/Stop Switch This part replaces 296000440.

296000440

$46.49

1735

Terminal DESS CAN | CARB Vehicle

710008832

$72.99

1740

Specialized Nut

278004274

$3.28

1760

Hex. Screw 10-14 X 7/8”

211000023

$3.59

3000

GPS Receiver

278004373

$1.00

3030

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

3040

Mount Dart

710008294

$1.04

3050

Transducer | Includes 3000 to 3000a

295100972

$349.99

3050a

Seal

292002447

$3.27

3060

Transducer Harness

278003683

$109.99

8010

Safety Lanyard Ass'y, RFID

278003400

$84.99
