Description

Price

10

Outer Skin

269502394

$204.99

11

Hexagonal Cap Screw M6 X35

250000399

$4.44

15

Inner Skin

269502555

$169.99

30

LH Latch

269502267

$30.99

31

Pin

269502536

$18.49

32

Latch Spring

269502268

$26.99

33

Rubber Bumper

293830005

$8.09

35

RH Latch

269502299

$30.99

36

Pin

269502536

$18.49

37

Latch Spring

269502268

$26.99

38

Rubber Bumper

293830005

$8.09

150

Shock Absorber Assembly | Includes 150 to 150b

269502426

$99.99

150b

Shock Absorber End Fitting

269501984

$11.49

220

LH Mirror Glass

269502274

$88.99

230

Deep Black, LH Mirror Cover

269502427

$55.99

240

Echo Sounder Support

269502551

$229.99

250

GPS Support Kit

269801597

$44.99

260

Deep Black, Echosounder Deflector

269502375

$110.99

300

Rubber Bumper

293830005

$8.09

310

Rubber Bumper

293830005

$8.09

400

LH Latch Base

269502385

$18.99

405

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$4.44

420

RH Latch Base

269502386

$18.99

425

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$4.44

500

Dusty Navy, Upper Hood

269502442

$124.99

515

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

700

Shock Base

269502282

$25.99

710

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.11

1000

Bin Compartment

264000144

$124.99

1001

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

1002

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.11

1020

Gasket

293250478

$13.49

1050

Adjustment Hook

269502325

$10.99

1130

Strap

269502493

$14.30

1500

Glove Box Door

264000132

$65.99

1510

Glove Box Latch

264000133

$21.99

1517

Screw K40 X 10

250001119

$2.40

1520

Cover Gasket

293250717

$29.99

1550a

Glove Box Trim

269502538

$19.49

1550b

Tuflok Plastic Rivet

293150230

$1.47

1600

Box Cover

264000158

$14.49

1610

Clip

269501718

$15.89

1620

Gasket

293250591

$17.99

1650

Sealed Compartment Foam

264000135

$12.99

1675

Vent Membrane

264000137

$12.99

2200

Rear Bin Organiser Ass'y | Includes 2200 to 2200d

295100836

$83.99

2200c

Flange Torx Screw K40 X 25

250001092

$3.70

2200d

Flat Washer 4 mm, Stainless

234042600

$1.15

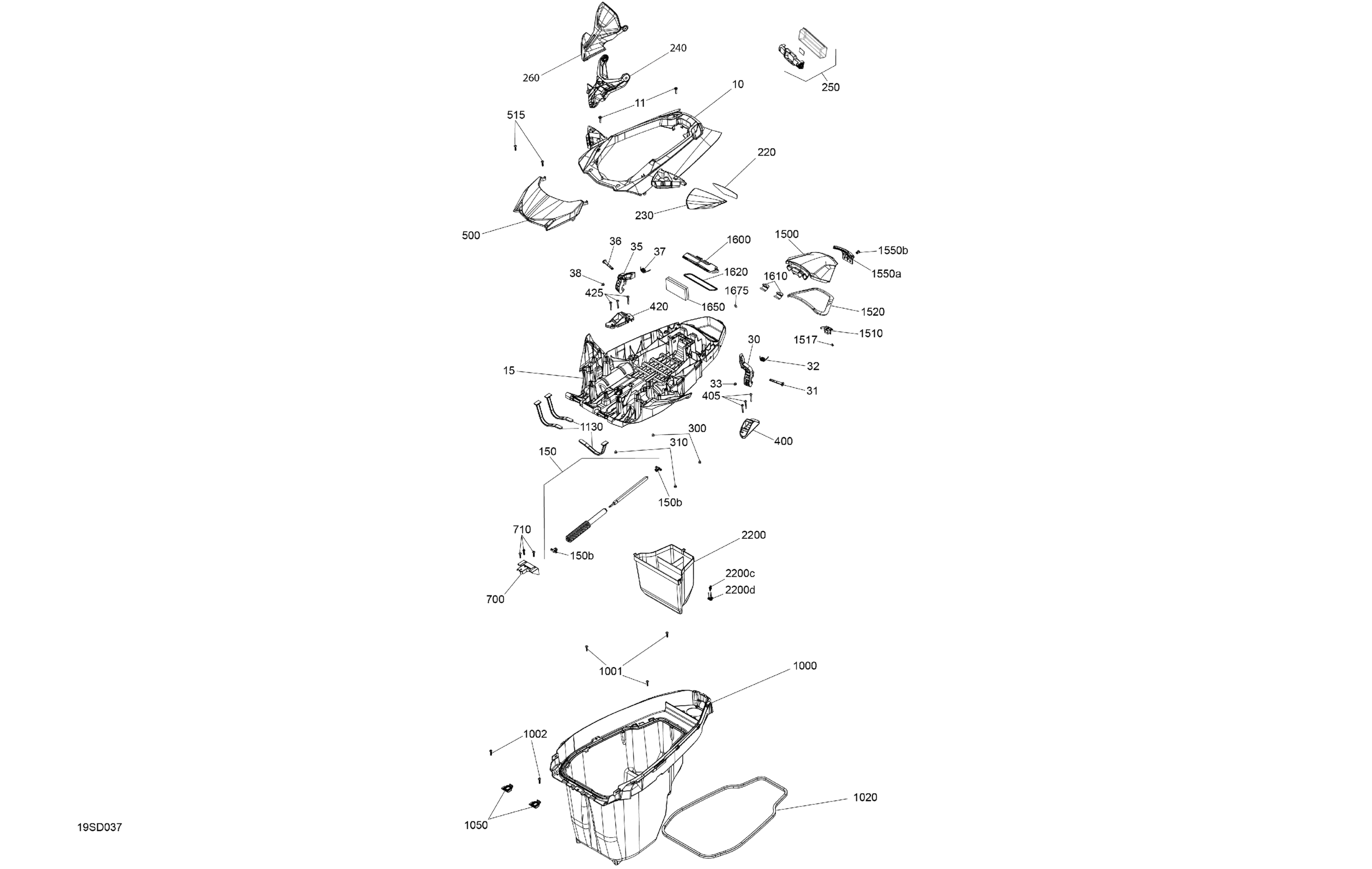

Sea-doo FISH PRO SPORT 170 - 18RA - Fish package - Gulfstream Blue,2024 Body - Front Cover Diagram

Outer Skin

Hexagonal Cap Screw M6 X35

Inner Skin

LH Latch

Pin

Latch Spring

Rubber Bumper

RH Latch

Pin

Latch Spring

Rubber Bumper

Shock Absorber Assembly | Includes 150 to 150b

Shock Absorber End Fitting

LH Mirror Glass

Deep Black, LH Mirror Cover

Echo Sounder Support

GPS Support Kit

Deep Black, Echosounder Deflector

Rubber Bumper

Rubber Bumper

LH Latch Base

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

RH Latch Base

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

Dusty Navy, Upper Hood

Plastite Screw Torx Cone HD.M6.81X3

Shock Base

Plastite Torx Screw M6.81X30 | Not Shown

Bin Compartment

Plastite Screw Torx Cone HD.M6.81X3

Plastite Torx Screw M6.81X30 | Not Shown

Gasket

Adjustment Hook

Strap

Glove Box Door

Glove Box Latch

Screw K40 X 10

Cover Gasket

Glove Box Trim

Tuflok Plastic Rivet

Box Cover

Clip

Gasket

Sealed Compartment Foam

Vent Membrane

Rear Bin Organiser Ass'y | Includes 2200 to 2200d

Flange Torx Screw K40 X 25

Flat Washer 4 mm, Stainless
